Поз.
Артикул
Описание
3

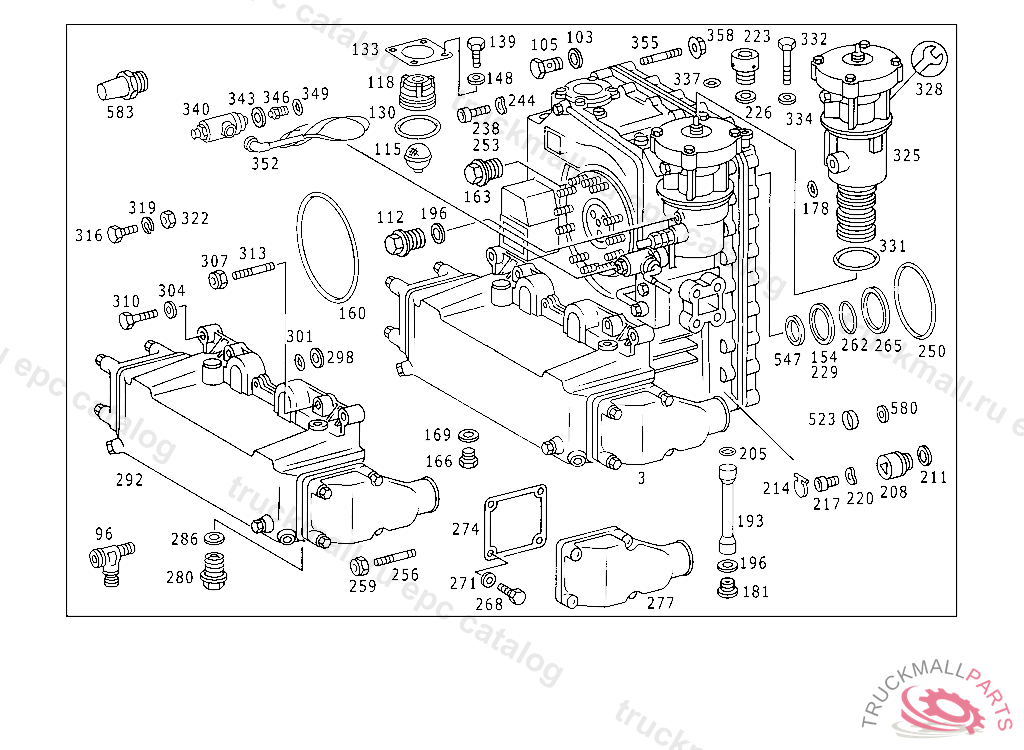

HYDRAULIC BRAKE RETARDER VOITH
96
SCREW CONNECTION
103
SEAL RING
105
SCREW , Replaced By: A1239970430
112
SCREW PLUGM 12X1.5
115
VALVE (FLOAT HOLLOW BALL)
118
VALVE , Replaced By: A0034302481
130
SEAL RING BLEEDING
130
SEAL RING BLEEDING
133
GASKET78X78X0.5 MM
133
GASKET78X78X0.5 MM
133
GASKET , Replaced By: A0004380680
139
SCREW LINES TO BRACKET
148
WASHER TRAILER PLUG SOCKET TO BRACKET
148
WASHER TRAILER PLUG SOCKET TO BRACKET
154
SEAL RING HOUSING 115X140X10 MM
160
SEAL RING HOUSING 196.52X2.62 MM
163
SCREW PLUGM 12X1.5
166
SCREW OIL DRAIN M 30X1.5
169
SEAL RING OIL DRAIN 30X36 MM
169
SEAL RING OIL DRAIN 30X36 MM
178
SEAL RING CONTROL VALVE 10X3 MM
181
SCREW PLUG , Replaced By: N000908022011
181
SCREW PLUG , Replaced By: N000908022011
193
BRACKET LOCKING VALVE
193
BRACKET LOCKING VALVE
193
LINE , Replaced By: A0004380040
196
SEAL RING LOCKING VALVE 22X29 MM
196
SEAL RING LOCKING VALVE 22X29 MM
205
GASKET LOCKING VALVE 15X2 MM
205
GASKET LOCKING VALVE 15X2 MM
208
VALVE
208
VALVE , Replaced By: A0004381281
211
SEAL RING40X47 MM
214
COVER , Replaced By: A0004380414
217
SCREW (HINGED COVER)
220
SPRING WASHER CABLE TO ALTERNATOR
223
SCREW PLUG , Replaced By: N007604030101
226
SEAL RING OIL FILLING AND OIL DRAIN
229
SEAL RING HOUSING 115X140X10 MM
238
SCREW , Replaced By: A1249900520
244
SPRING WASHER CABLE TO ALTERNATOR
250
SEAL RING CASE COVER 297X4 MM
253
SCREWM 10X18
256
STUD BOLT RETARDER ATTACHMENT M 10X45
256
STUD BOLT COVER TO RETARDER HOUSING M 10X30
256
STUD BOLT RETARDER ATTACHMENT M 10X22
259
NUT BRACKET TO RETARDER
262
SEAL RING95X4.5 MM
265
SEAL RING , Replaced By: A0004380560
268
SCREW RADIATOR
271
WASHER RADIATOR
274
GASKET RADIATOR
277
CONNECTOR
280
SCREW PLUGM 12X1.5
286
SEAL RING INJECTION PUMP
292
RADIATOR
298
WASHER RADIATOR
301
SEAL RING RADIATOR 36X4 MM
304
WASHER RADIATOR
307
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
310
SCREWM 10X25
313
STUD RADIATOR
316
SCREW , Replaced By: N304017010040
316
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
316
SCREW WATER SEPARATOR
319
LOCK WASHER , Replaced By: N912004010102
322
NUT BRACKET TO RETARDER
325
VALVE , Replaced By: A0015403497
328
REPAIR KIT CONTROL VALVE
328
REPAIR KIT CONTROL VALVE
328
GASKET KIT , Replaced By: A0015409797
331
SEAL RING CONTROL VALVE 60X4 MM
332
SCREW CONTROL VALVE
334
WASHER TRAILER PLUG SOCKET TO BRACKET
337
SEAL RING CONTROL VALVE 10X3 MM
340
SOLENOID24V
343
SEAL RING SOLENOID 19X2.5 MM
346
SCREW SOLENOID
349
SEAL RING6X2 MM
352
PLUG , Replaced By: A3805402281
355
STUD
358
NUT
523
EXPANSION PLUG SPEEDOMETER DRIVE
547
WASHER AS REQUIRED 3.50 MM
547
WASHER AS REQUIRED 3.30 MM
547
WASHER AS REQUIRED 3.10 MM
547
WASHER AS REQUIRED 2.90 MM
547
WASHER AS REQUIRED 2.70 MM
547
WASHER AS REQUIRED 2.50 MM
580
SEAL RING , Replaced By: N007603012121
583
MUFFLER
999
999
999
999
999
999
999
ELBOW FITTING
999
999
999
999
BRACKET PEDAL BEARING BRACKET
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
CLAMP FEED LINE TO THERMOSTAT
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 585 MM,C 069616
999
999
RUBBER MOUNTING , Replaced By: A3452407017
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 590 MM, APPLICABLE TO TRANSMISSION 718.630
999
HYDRAULIC CLUTCH
999
VALVE
999
SCREW
999
SCREW
999
RET ELECTRONICS
999
999
CONTROL UNIT
999
SPACER RING
999
SNAP RING
999
LOCKING CAP , Replaced By: A3845067233
999
SCREWM 16X16X20X45
999
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 511 MM, APPLICABLE TO TRANSMISSION 718.745
999
HOLLOW SHAFT
999
LINE
999
SCREW
999
999
999
LINE
999
999
999
999
SENDER UNIT
999
WASHER
999
999
LOCK
999
CLAMP LINE MOUNTING
999
SCREW
