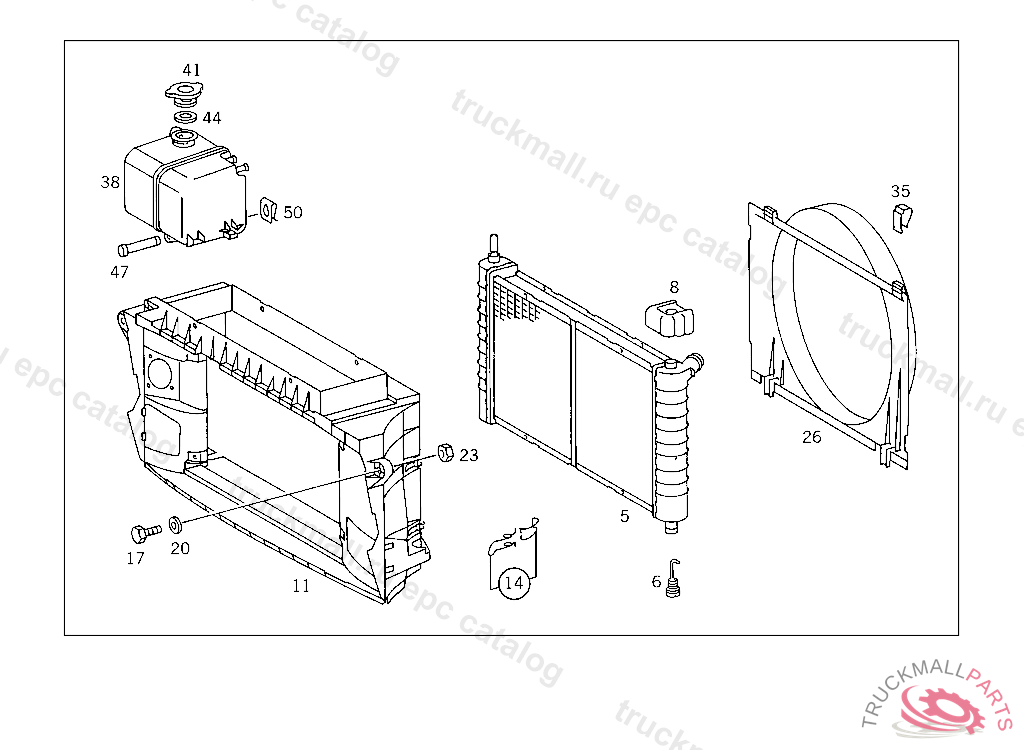

Поз.
Артикул
Описание
5
RADIATOR WATER
5
RADIATOR , Replaced By: A6685000601
5
RADIATOR , Replaced By: A6685000601
6
SCREW WATER DRAIN
8
RUBBER MOUNTING RADIATOR TO AIR BAFFLE,RIGHT
8
RUBBER MOUNTING RADIATOR TO AIR BAFFLE,LEFT
11
AIR GUIDE CASE , Replaced By: A6675000616
11
AIR BAFFLE
14
FASTENER RADIATOR MOUNTING
17
SCREW AT SHIFT LEVER M 8 X 45,P 234011
20
WASHER EXHAUST MUFFLER TO STRAP
23
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
26
FAN SHROUD RADIATOR
35
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
38
TANK
41
RADIATOR CAP , Replaced By: A0005014115
41
RADIATOR CAP , Replaced By: A4615010015
41
RADIATOR CAP
44
GASKET O.D., 37 MM
47
PIN EXPANSION TANK TO BRACKET
50
LOCK AT WATER EXPANSION TANK
999
LEVER COVER TO CHARGE AIR INTERCOOLER
999
CLAMP
