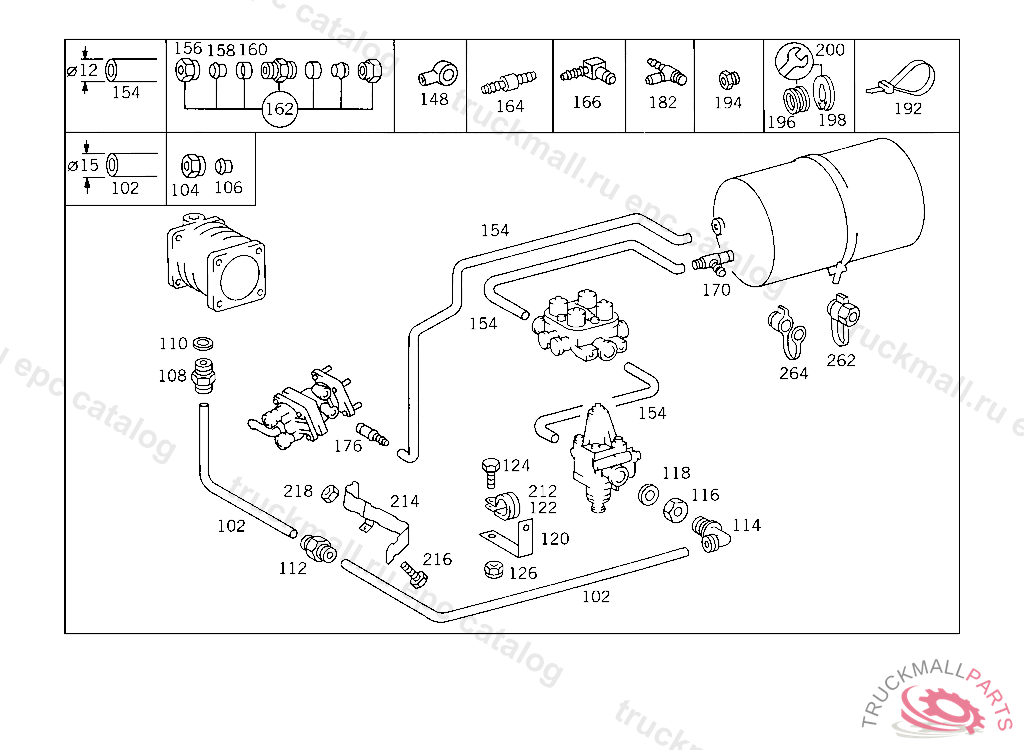

Поз.
Артикул
Описание
102
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
104
UNION NUT LINE CONNECTION
106
GLAND LINE CONNECTION
108
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
112
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
114
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
116
NUT CHECK VALVE TO AIR RESERVOIR
118
LOCK PLATE AT SIDE MEMBER
120
BRACKET BATTERY CABLE MOUNTING,5 193595
120
BRACKET , Replaced By: A3854290540
120
BRACKET , Replaced By: A6224760136
120
BRACKET CABLE HARNESS MOUNTING
122
CLAMP DELIVERY AND SUCTION LINES TO STEERING
124
SCREW BRACKET TO CONSOLE
124
SCREW STRUT TO CROSS MEMBER M 10X25
124
SCREW CLAMP TO BRACKET
124
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
126
NUT HEATING PIPE TO BRACKET
126
NUT CROSS MEMBER TO SIDE MEMBERS
148
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
154
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
154
HOSE , Replaced By: A0009872827
156
UNION NUT LINE CONNECTION, Replaced By: N000000006239
156
UNION NUT LINE CONNECTION
158
SEAL CONE LINE CONNECTION
158
GLAND , Replaced By: A0019901967
160
SLEEVE LINE CONNECTION
162
FITTING , Replaced By: A0029906171
162
FITTING (PARTS KIT),LINE RUPTURE
164
CONNECTOR REPAIR SIZE
166
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
166
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
166
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
166
ELBOW FITTING , Replaced By: A0049905371
170
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
170
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
176
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
182
T-FITTING
192
LOOM TIE LINE MOUNTING
194
SCREW. UNION SCREW LINE CONNECTION
194
SCREW. UNION SCREW LINE CONNECTION
194
SCREW. UNION SCREW , Replaced By: A0009973734
196
SEAL RING , Replaced By: A0009940747
196
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
196
LOCK RING LINE CONNECTION
198
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
198
LOCK , Replaced By: A0009945448
198
LOCK LINE CONNECTION
200
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
200
REPAIR KIT , Replaced By: A0309971748
200
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
212
CLAMP COOLING WATER LINE TO FIRE WALL
214
BRACKET LINE TO SIDE MEMBER
214
BRACKET LINE TO SIDE MEMBER
216
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
218
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
262
TEST CONNECTION
262
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
264
PLUG
999
BRACKET LINE MOUNTING
999
HANDLETO 001 430 08 81,BOSCH
999
BUSHINGTO 0014316914,0014313414
