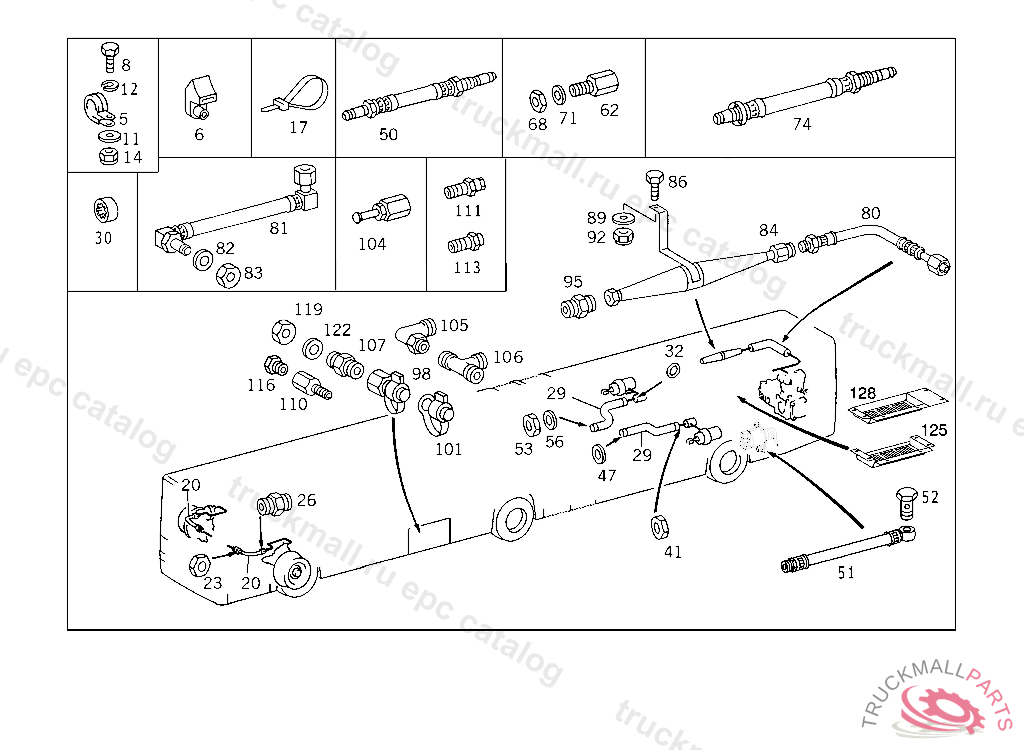

Поз.
Артикул
Описание
5
CLAMP LINE MOUNTING
5
CLAMP LINES TO BRACKET
5
CLAMP PIPE LINE TO CONDENSER
5
CLAMP LINE MOUNTING
5
CLAMP COOLING WATER HOSES
6
BRACKET ELECTRIC CABLE MOUNTING
8
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
11
WASHER6,4
11
WASHER COMPRESSED AIR LINE TO BRACKET
11
WASHER , Replaced By: N009021006208
11
WASHER
14
NUT HORN TO BRACKET M8
14
NUT STRAP TO BRACKET
14
NUT STARTING CABLE TO OIL FILTER
17
CABLE TIE IONIC EXCHANGER 380X7.8MM
20
BRAKE HOSE FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
23
NUT BRACKET TO SIDE MEMBER
26
FITTING (PARTS KIT),LINE RUPTURE
29
BRAKE HOSE REAR AXLE BRAKE CIRCUIT
29
BRAKE HOSE BETWEEN THE LINES
30
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
30
RUBBER RING
32
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
41
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
47
WASHER
50
BRAKE HOSE LEFT SPRING-LOAD ACCUMULATOR
50
BRAKE HOSE FROM RELAY VALVE TO TWO-WAY VALVE
53
NUT BRACKET TO SIDE MEMBER
56
WASHER PULLEY TO AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
56
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
62
ADAPTER FITTING AT BRACKET
62
ADAPTER FITTING LINE CONNECTION TO ENGINE
68
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
71
WASHER BRACKET MOUNTING
74
BRAKE HOSE LEFT SPRING-LOAD ACCUMULATOR
80
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
80
BRAKE HOSE AT CYLINDER, TO BE ADAPTED DURING ASSEMBLY
81
BRAKE HOSE FROM FITTING TO QUICK-RELEASE VALVE, CONNECTION:
82
WASHER BRACKET MOUNTING
83
NUT BRACKET TO SIDE MEMBER
84
MUFFLER AT AIR COMPRESSOR
86
SCREW BRACKET TO CAB REAR PANEL M 8X20
86
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
89
WASHER BRACKET TO CAB REAR PANEL
89
WASHER BRACKET TO LEFT SIDE MEMBER
95
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
95
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
98
TEST CONNECTION
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
101
PLUG
104
TEST CONNECTION
107
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
107
FITTING AT BRACKET
110
ADAPTER FITTING TEST CONNECTION
111
FITTING AT AIR RESERVOIR
111
FITTING AIR RESERVOIR
113
FITTING LINE CONNECTION
116
SCREW. UNION SCREW , Replaced By: A0009973734
119
NUT , Replaced By: N308675014001
119
NUT ,D 091466
119
NUT JOINT TO BRACKET
119
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
119
HEXAGON NUT
122
WASHER BRACKET MOUNTING
122
WASHER
