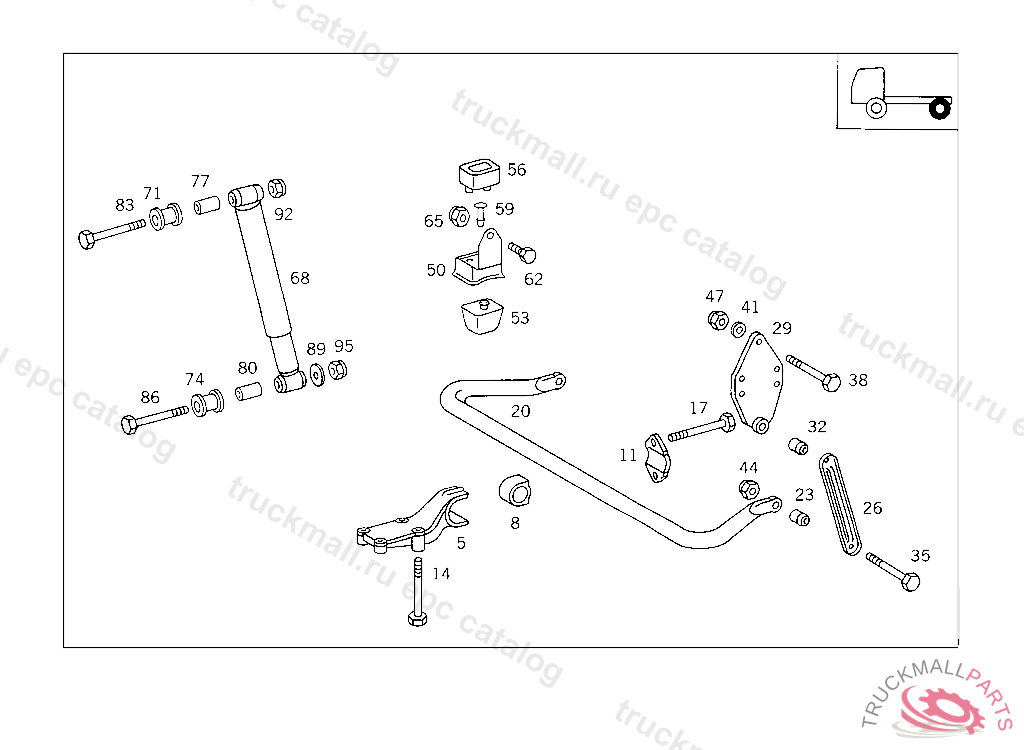

Поз.
Артикул
Описание
5
BEARING BRACKET RIGHT
5
BEARING BRACKET LEFT
8
RUBBER MOUNTING BEARING BRACKET TO TORSION BAR
8
RUBBER MOUNTING , Replaced By: A6733260581, +001A6733260131
11
COVER , Replaced By: A6733260131, +001A6733260781
11
COVER BEARING BRACKET TO TORSION BAR
14
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 14X1.5X38
14
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
17
SCREW RIGHT BOTTOM ANTINOISE CAPSULE TO FRAME M10X1X20,5 505597
20
TORSION BAR REAR AXLE
23
BEARING TORSION BAR BEARING
26
SHACKLE , Replaced By: A6673200837
26
SHACKLE TORSION BAR MOUNTING
29
CONSOLE TORSION BAR,REAR
32
BEARING TORSION BAR BEARING
35
SCREW , Replaced By: N308676012011
35
SCREW , Replaced By: N308676012031
35
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
38
SCREW , Replaced By: N308676012026
38
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
41
WASHER BRACKET TO FRAME
44
NUT SUPPORT TO SIDE MEMBER
47
NUT SUPPORT TO SIDE MEMBER
50
BRACKET AXLE STOP
53
HELPER SPRING RUBBER BUFFER
56
SHIM STOP TO FRAME
59
PIN RUBBER BUFFER
62
SCREW BRACKET TO SIDE MEMBER
62
SCREW , Replaced By: N304017010002
65
NUT , Replaced By: N910113010000
65
NUT STRAP TO BRACKET
68
SHOCK ABSORBER REAR AXLE
68
SHOCK ABSORBER , ONLY REPLACEABLE BY PAIRS, Replaced By: A6733261100
68
SHOCK ABSORBER , Replaced By: A0063262900
71
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
71
RUBBER BUFFER , Replaced By: A0003230185
71
RUBBER MOUNTING TOP AND BOTTOM TO 673 323 00 00
71
GUMMIHULSE. RUBBER MOUNTING TOP AND BOTTOM TO 675 323 06 00
74
RUBBER MOUNTING BOTTOM TO 006 323 29 00,31 00
74
RUBBER MOUNTING TOP AND BOTTOM TO 675 323 11 00
74
RUBBER MOUNTING TOP AND BOTTOM TO 675 323 11 00
77
BUSHING TOP TO 673 326 14 00
77
BUSHING TOP TO 673 323 10 00
77
BUSHING TOP TO 005 326 55 00,5 711072
77
BUSHING TOP TO 673 326 13 00
80
BUSHING , Replaced By: A0003233150
80
BUSHING BOTTOM TO 673 323 10 00
80
SPACER RINGTO 002 323 86 00,003 323 03 00,
83
SCREW STABILIZER TO BEARING
86
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X130,5 548534
89
WASHER SHOCK ABSORBER TO LOWER BEARING BRACKET
89
WASHER SHOCK ABSORBER TO BOTTOM BRACKET
92
NUT BRACKET TO SIDE MEMBER
92
NUT , Replaced By: N910113014001
95
NUT COMBINATION CYLINDER TO BEARING BRACKET
95
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
