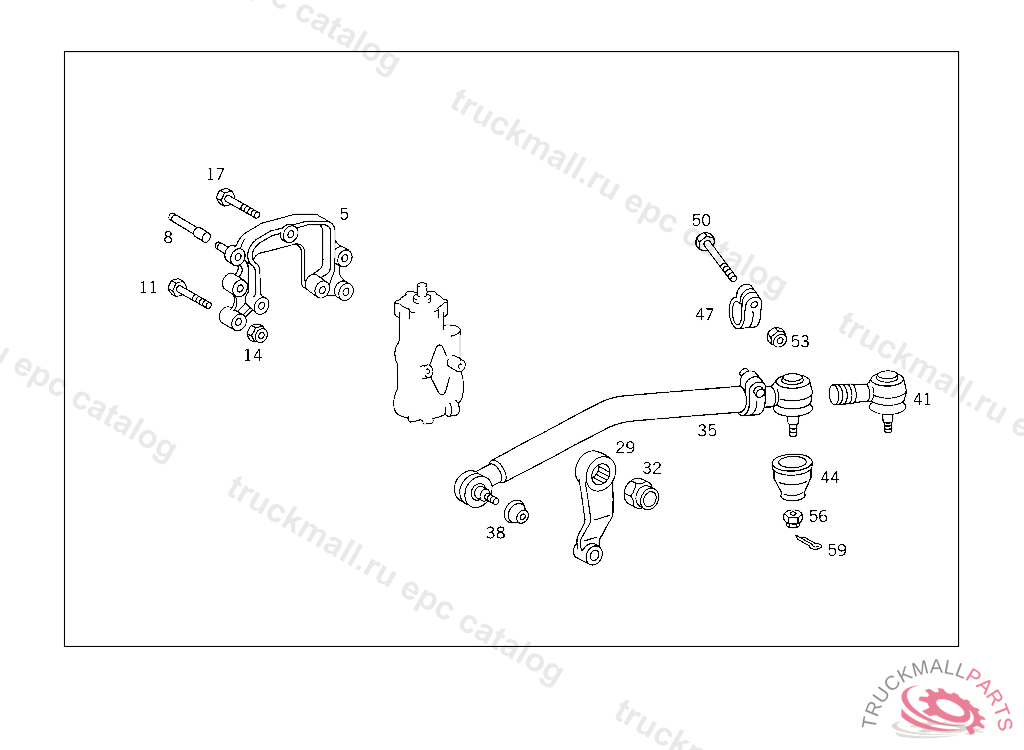

Поз.
Артикул
Описание
5
STEERING BRACKET
5
STEERING SUPPORT (STEERING BRACKET),K 244309
8
PIN
11
SCREW , Replaced By: N000960016206
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
14
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
14
NUT COMBINATION CYLINDER TO BEARING BRACKET
17
SCREW SUPPORT TO SIDE MEMBER M 14X45
17
SCREW , Replaced By: N308676014012
17
SCREW ,5 502947
29
PITMAN ARM , Replaced By: A6734630101
29
PITMAN ARM , Replaced By: A6734630101
29
PITMAN ARM ,K 244309
29
PITMAN ARM ,K 244309
32
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
DRAG LINKLEMFOERDER
35
DRAG LINK , Replaced By: A6734600805
35
DRAG LINK , Replaced By: A6734600705
35
DRAG LINKLEMFOERDER
35
DRAG LINK , Replaced By: A6734600905
35
DRAG LINKEHRENREICH
35
DRAG LINK , Replaced By: A6734600605
35
DRAG LINKEHRENREICH
38
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
38
BOOT FIXED PART OF JOINT
41
JOINT , Replaced By: A0013300435
41
BALL JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH
41
JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH, Replaced By: A0024601048
41
JOINT TO BE SCREWED INTO DRAG LINK LEMFOERDER
41
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0013300335
44
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
44
BOOT
47
CLAMP CLAMP, ONE-HOLE
47
CLAMP , Replaced By: A4619955044
47
CLAMP , Replaced By: A4619955044
50
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
53
NUT , Replaced By: N910113010002
53
HEXAGON NUT
56
NUT DRAG LINK TO LEVER,4 215305
59
COTTER PINROCKINGER TYP 260 G140
