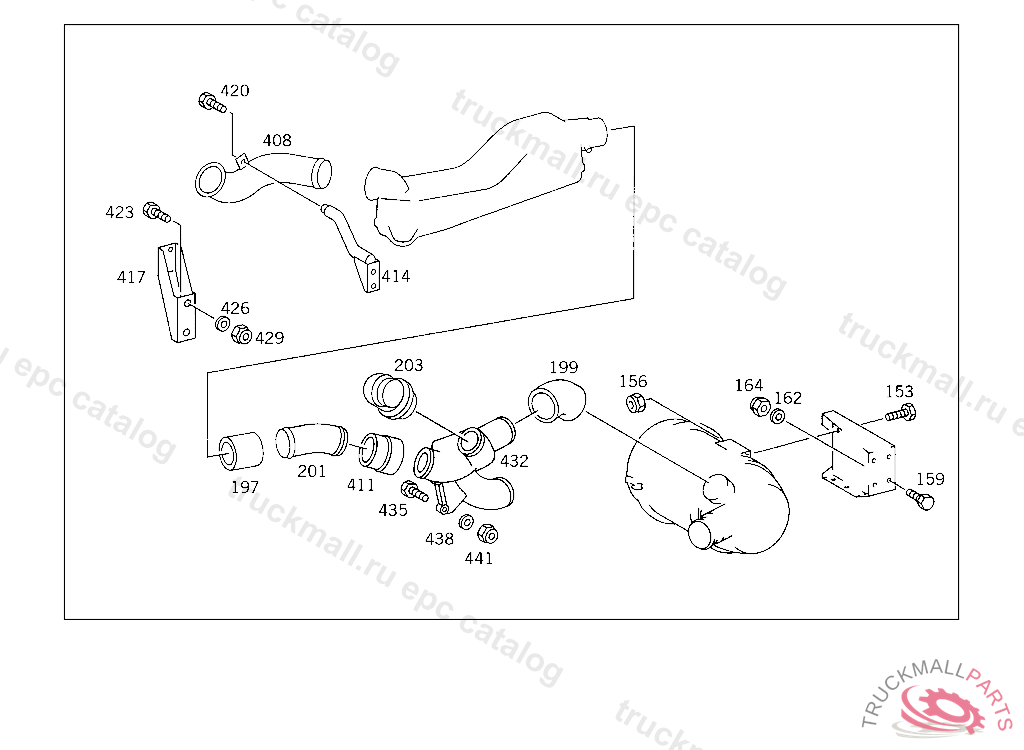

Поз.
Артикул
Описание
153
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
156
NUT , Replaced By: N910113010000
156
NUT STRAP TO BRACKET
159
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
162
WASHER
164
NUT SUPPORT TO SIDE MEMBER
197
HOSE TO OIL BATH AIR CLEANER
197
HOSE TO OIL BATH AIR CLEANER
197
HOSE , Replaced By: N900271090008
199
HOSE TO OIL BATH AIR CLEANER
201
HOSE FROM MUFFLER TO SUPPORT
203
HOSE FROM MUFFLER TO ENGINE
408
AIR INTAKE PIPE ,5 425232
411
AIR INTAKE PIPE
414
BRACKET AIR INTAKE PIPE,5 425232
417
BRACKET AIR INTAKE PIPE,5 424630
420
SCREW , Replaced By: N304017008016
420
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
420
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
423
SCREW CONSOLE TO FRAME
423
SCREW , Replaced By: N308676016020
426
WASHER , Replaced By: N000125017016
426
WASHER BRACKET TO FRAME
429
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
429
NUT COMBINATION CYLINDER TO BEARING BRACKET
432
SUPPORT AIR INTAKE PIPE
435
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
435
SCREW , Replaced By: N308676012011
438
WASHER
441
NUT SUPPORT TO SIDE MEMBER
999
SEPARATOR
999
AIR CLEANER (PAPER AIR CLEANER) MANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL,5 1296945 462572
999
AIR CLEANERMANN & HUMMEL,5 462572
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER OIL BATH MANN & HUMMEL
999
SUPPORT ,5 4625735 505597, Replaced By: A6735201833, +003N000933010128
999
BRACKET ,5 451580
999
AIR INTAKE PIPE
999
SUPPORT
999
BRACKET AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE,5 4252335 424630
999
HOSE ,5 451580
999
SUPPORT AIR INTAKE,5 1296945 462572
999
HOSE FROM MUFFLER TO ENGINE
999
HOSE , Replaced By: N900271100009
999
HOSE , Replaced By: A6735281282, +001A0019880735, +002A0019978390
999
HOSE FROM SUPPORT TO PAPER AIR CLEANER
999
BRACKET AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BRACKET RIGHT FENDER
999
BRACKET AIR INTAKE PIPE
999
HOSE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SCREW , Replaced By: N308676012012
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW PIPE CLAMP
999
NUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
PLUG
999
STOP PLUG. PLUG IN PLACE OF LOCK
