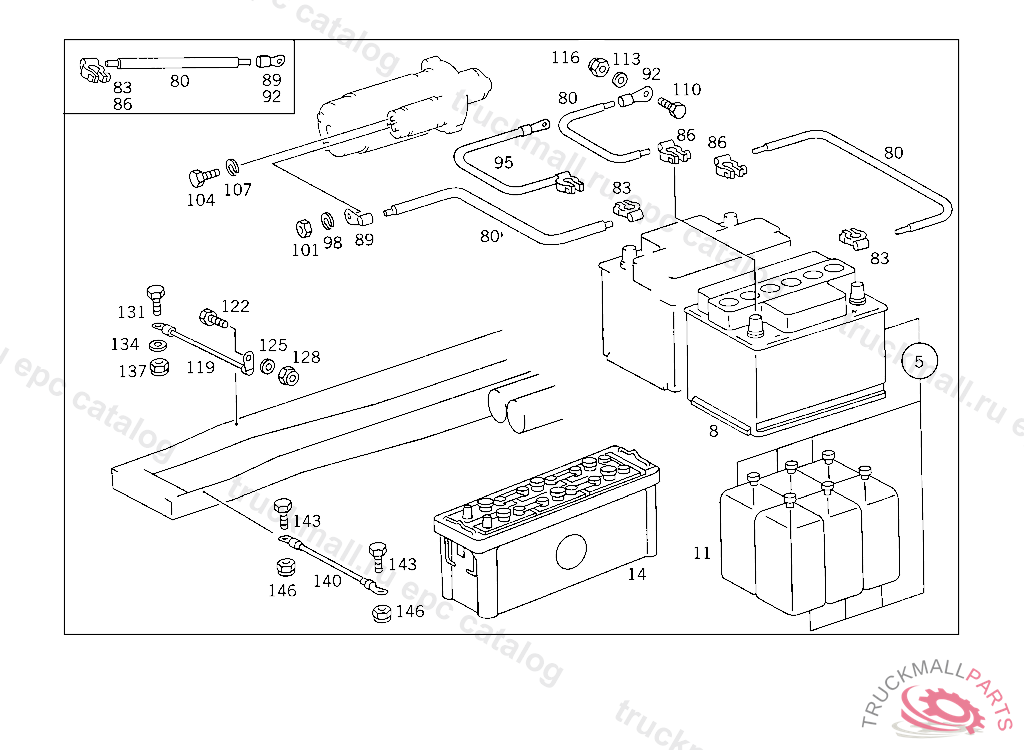

Поз.
Артикул
Описание
5
BATTERY , Replaced By: A0035417501, +001A0009891315
5
BATTERY PARTS KIT,5 419106
5
BATTERY , Replaced By: A0035416601, +001A0009891215
5
BATTERY , Replaced By: A1405400001
5
BATTERY PARTS KIT,5 338284
8
BATTERY , Replaced By: A0035416601
8
BATTERY , Replaced By: A0045412301
8
BATTERY , Replaced By: A0025414301
8
BATTERY PARTS KIT,5 338284
8
BATTERY12 V/66 AH
8
BATTERY12V/66AH,5 419106
11
BATTERY ACID BOTTLE SETTO 001 541 79 01
11
BATTERY ACID BOTTLE SET ,5 338284
11
BATTERY ACID BOTTLE SET , Replaced By: A0009891315
11
BATTERY ACID BOTTLE SET , Replaced By: A0009891215
14
BATTERY FILLED AND CHARGED 12V/140AH
14
BATTERY FILLED AND CHARGED 12V/115AH
14
BATTERY12V/120 AH
14
BATTERY12 V/135 AH
14
BATTERY , Replaced By: A0045413001
14
BATTERY , Replaced By: A0035418801
14
BATTERY FILLED AND CHARGED 12V/88AH
14
BATTERY12 V/115 AH
80
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
80
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
80
ELECTRIC CABLE , Replaced By: A6735460013
80
ELECTRIC CABLE , Replaced By: A6735460011
83
SOLDERING TERMINAL POS. POLE
83
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
86
SOLDERING TERMINAL POS. POLE
86
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
89
CABLE SHOE BATTERY CABLE 10-70 MM
89
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
92
CABLE SHOE BATTERY CABLE 12-70 MM
92
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
95
GROUND STRAP FROM BATTERY TO GROUND AT SIDE MEMBER
98
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
101
NUT , Replaced By: N304035010001
101
NUT
104
SCREW EXHAUST BRAKE SEPARATION POINT
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
110
SCREW BRACKET TO FRAME SIDE MEMBER
113
WASHER
116
NUT END PIECE TO EXHAUST PIPE
119
GROUND STRAP FROM CYLINDER CRANKCASE TO FRAME SIDE MEMBER,5 382260
119
GROUND STRAP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6735400741
122
SCREW END PIECE TO EXHAUST PIPE M 10X25
125
WASHER , Replaced By: N000125010532
125
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
125
WASHER RADIATOR TO RUBBER MOUNTING
125
WASHER , Replaced By: N000125015019
128
NUT STRAP TO BRACKET
128
NUT , Replaced By: N910113010000
131
SCREW , Replaced By: N308676012026
131
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
134
WASHER
137
NUT SUPPORT TO SIDE MEMBER
140
ELECTRIC CABLE GROUND CABLE
143
SCREW REDUCTION VALVE TO BRACKET
143
SCREW PIPE CLAMP
143
SCREW , Replaced By: N304017008021
143
SCREW , Replaced By: A0079900801
146
NUT , Replaced By: N913004008001
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
THREADED UNION TERMINAL 30,CABLE TO STARTING MOTOR,K 199371
999
GROUND STRAP FROM BATTERY TO GROUND AT SIDE MEMBER,5 4191075 447531
999
LOCK PLATE RELEASE LEVER TO SHAFT
