Поз.
Артикул
Описание
5

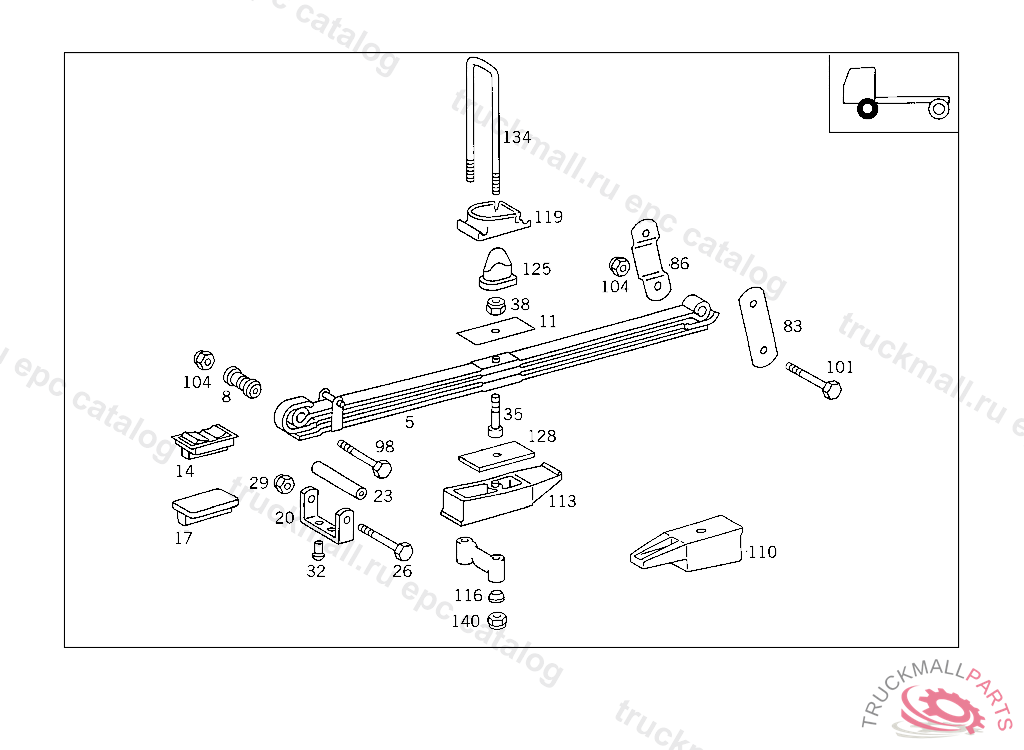

FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743204402
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
8
BUSHING
11
SHIM , Replaced By: A9703210184
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
RUBBER BUFFER BETWEEN THE SPRING EYES
17
SHIM BETWEEN THE SPRING LEAVES
20
SPRING CLAMP ,5 940410
20
SPRING CLAMP TO SPRING LEAF NO.4,5 484790
23
SPACER TUBE SPRING CLAMP
23
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
26
SCREW SPRING CLAMP,5 533057
26
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
29
NUT END PIECE TO EXHAUST PIPE
32
RIVET SPRING CLAMP TO SPRING LEAF
35
SPRING BOLT
35
SPRING BOLT , Replaced By: N004626012261
38
HEXAGON NUT. NUT SPRING BOLT
38
NUT , Replaced By: N910113012005
83
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
86
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
98
SCREW , Replaced By: N000960016251
98
SCREW SPACER TUBE TO MOUNTING
101
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X130,5 548534
104
NUT COMBINATION CYLINDER TO BEARING BRACKET
104
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
113
SHIM FRONT SPRINGS TO FRONT AXLE
113
SHIM FRONT SPRINGS TO FRONT AXLE
116
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
119
PLATE FRONT SPRINGS TO FRONT AXLE
125
HELPER SPRING FRONT SPRING STOP
134
U-BOLT FRONT SPRING TO FRONT AXLE,REAR 180 MM
134
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
134
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
134
U-BOLT , Replaced By: A3143510725
134
U-BOLT , Replaced By: A3163510025
140
NUT FRONT SPRINGS TO FRONT AXLE
