Поз.
Артикул
Описание
5

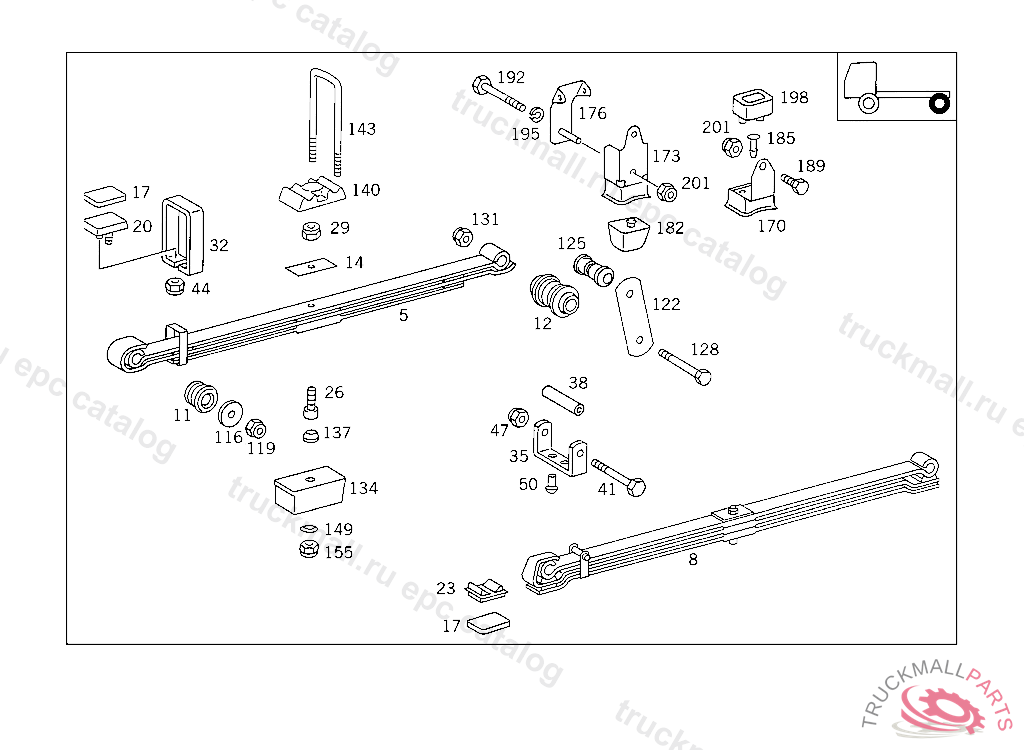

REAR SPRING (SUPPORTING SPRING),4 LEAVES,5 378795
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
BUSHING SPRING EYE,FRONT
12
BUSHING SPRING EYE,REAR
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM BETWEEN THE SPRING LEAVES
20
RUBBER BUFFER
23
RUBBER BUFFER BETWEEN THE SPRING EYES
26
SPRING BOLT
29
HEXAGON NUT. NUT SPRING BOLT
32
SPRING CLAMP AT SPRING LEAF NO.5
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
119
NUT , Replaced By: N910113018004
119
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
122
SHACKLE SPRING SHACKLE TO SPRING REAR BRACKET
125
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
125
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
128
SCREW VIBRATION ABSORBER TO CONSOLE
131
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
131
NUT , Replaced By: N910113018004
134
SHIM REAR SPRING
134
SHIM ,5 361886, Replaced By: A6743220684, +001A3229910060
137
DOWEL PIN (CENTERING CONE),5 361886
137
DOWEL PIN , Replaced By: A6749910060
137
DOWEL PIN BETWEEN SPRING AND FRONT AXLE
140
PLATE REAR SPRING TO REAR AXLE
140
PLATE REAR SPRING TO REAR AXLE
143
U-BOLT REAR SPRING TO REAR AXLE 420 MM,5 201989
182
HELPER SPRING RUBBER BUFFER
182
HELPER SPRING RUBBER BUFFER
185
PIN RUBBER BUFFER
185
PIN RUBBER BUFFER
189
SCREW BRACKET TO SIDE MEMBER
189
SCREW BRACKET TO SIDE MEMBER
201
NUT STRAP TO BRACKET
201
NUT , Replaced By: N910113010000
201
NUT STRAP TO BRACKET
999
HELPER SPRING 6-LEAF
999
SPRING LEAFNO.8,5 711071
999
SPRING LEAFNO.2
