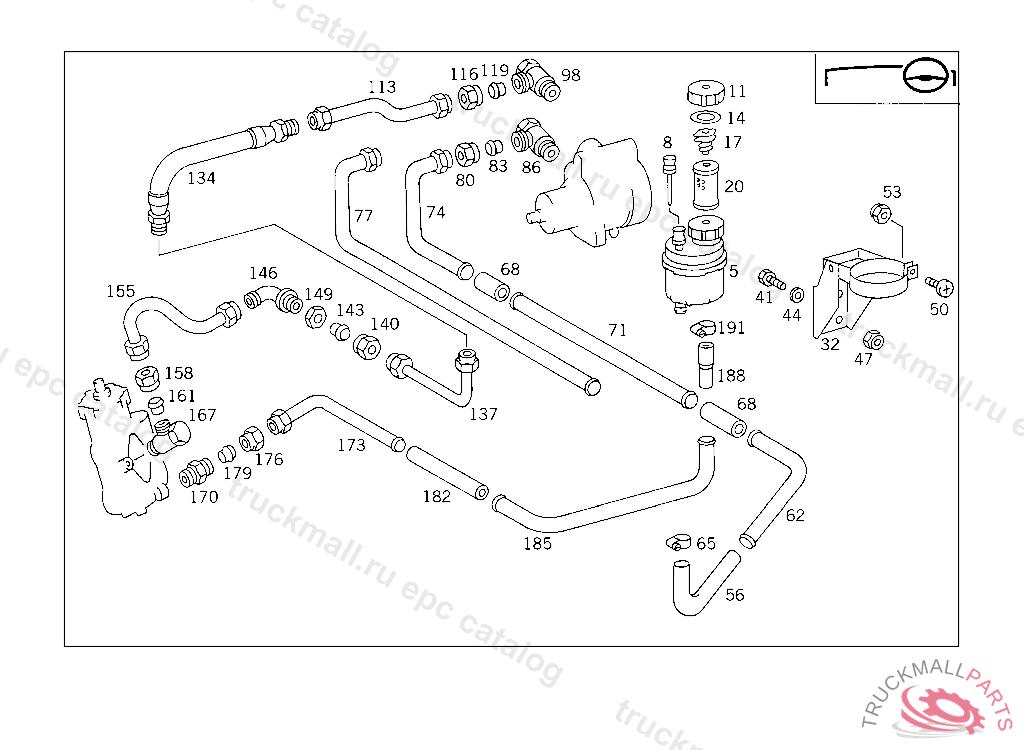

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
32
BRACKET OIL TANK,5 553319
32
BRACKET , Replaced By: A6754601035, +001A6752600262
41
SCREW BEARING BRACKET TO SIDE MEMBER
44
SPACER WASHER BRACKET TO FRAME
47
NUT COMBINATION CYLINDER TO BEARING BRACKET
47
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
50
SCREW OIL TANK TO BRACKET
53
NUT PUMP TO BRACKET
53
NUT , Replaced By: N913004006001
56
HOSE ,K 055044
62
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
62
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
CLAMP , Replaced By: N000000000667
68
HOSE , Replaced By: A3859971582
68
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
68
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
71
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163365
74
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
74
LINE , Replaced By: A6734600488
77
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
77
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 1382945 374583
77
LINE ,K 055043K 126843
80
UNION NUT LINE CONNECTION, Replaced By: N000000006243
80
NUT LINE CONNECTION
83
GLAND , Replaced By: A0019901267
86
FITTING SUCTION LINE TO OIL PUMP
86
ELBOW FITTING SUCTION LINE TO OIL PUMP
98
SCREW CONNECTION DELIVERY LINE TO PUMP
98
SCREW CONNECTION DELIVERY LINE TO PUMP
113
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 138293
116
UNION NUT LINE CONNECTION, Replaced By: N000000006239
116
UNION NUT LINE CONNECTION
119
SEAL CONE LINE CONNECTION
119
GLAND , Replaced By: A0019901967
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
134
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
137
LINE , Replaced By: A6744600988, +001A6744660340
137
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955601
137
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955600 SA 083.128/24/25: 5 903781-5 955600
140
NUT. UNION NUT LINE CONNECTION
143
CUTTING RING. GLAND LINE CONNECTION
146
FITTING DELIVERY LINE TO FRAME
149
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
155
LINE (DELIVERY LINE) FROM FITTING TO STEERING
155
LINE , Replaced By: A0004292301
158
NUT. UNION NUT LINE CONNECTION
161
CUTTING RING. GLAND LINE CONNECTION
167
SCREW CONNECTION DELIVERY LINE TO STEERING
170
FITTING DELIVERY LINE TO PUMP
173
LINE , Replaced By: A6734600388
173
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 138293
173
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
173
LINE12 MM, ORDER BY THE METER4 691315
173
LINE , Replaced By: A0004291001
176
UNION NUT LINE CONNECTION, Replaced By: N000000006239
176
UNION NUT LINE CONNECTION
179
GLAND , Replaced By: A0019901967
179
SEAL CONE LINE CONNECTION
182
HOSE , Replaced By: A3099971182
182
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
182
HOSE , Replaced By: A0009974752
185
LINE (RETURN LINE),FROM STEERING TO OIL TANK
185
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744661865
185
LINE , Replaced By: A6734662065
188
HOSE ,K 055044
191
CLAMP HOSE TO FITTING AND TO OIL TANK
191
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
191
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
THRUST RING SUCTION LINE TO OIL PUMP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
PROTECTIVE CAP
999
BRACKET LINE MOUNTING,5 220227
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET , Replaced By: A6205244040
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138294
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW , Replaced By: N304017008034
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
NUT SUCTION LINE TO OIL PUMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
