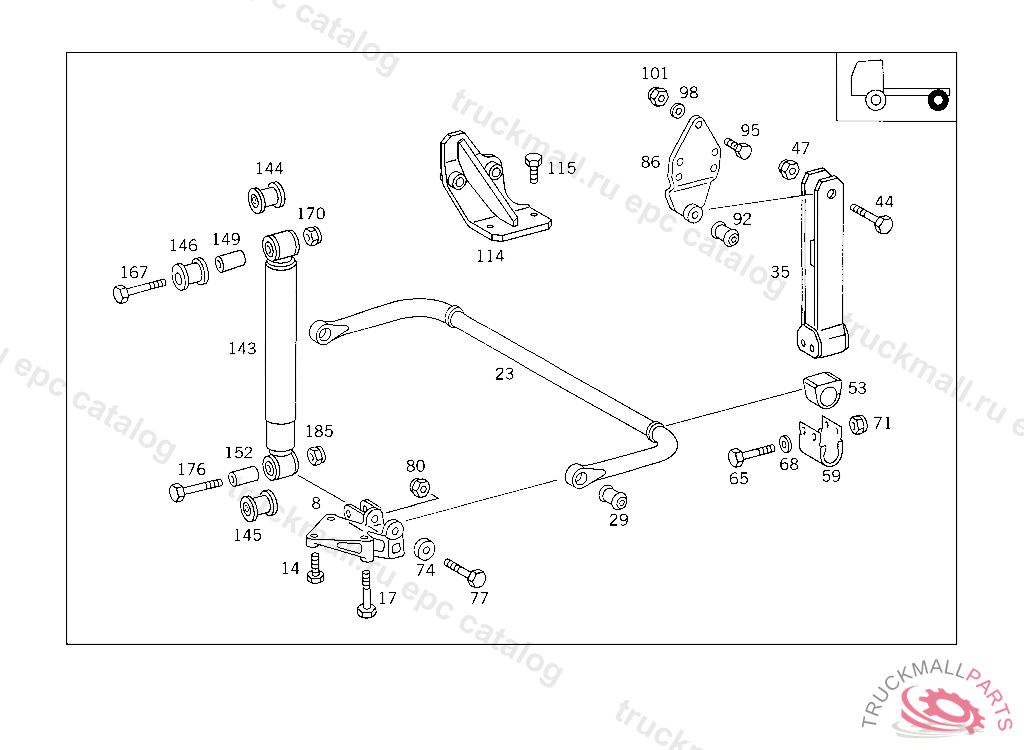

Поз.
Артикул
Описание
8
BRACKET SHOCK ABSORBER AND STABILIZER,LEFT
8
BRACKET SHOCK ABSORBER AND STABILIZER,RIGHT
14
SCREW BRACKET TO CAB CONSOLE,K 035197
17
SCREW MOUNTING TO CAB
23
TORSION BAR REAR AXLE, TORSION BAR WITH SIDE GUIDE
29
BEARING SHACKLE TO FRAME
35
SHACKLE TORSION BAR
44
SCREW , Replaced By: N000960016206
44
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
47
NUT COMBINATION CYLINDER TO BEARING BRACKET
47
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
53
RUBBER MOUNTING TORSION BAR TO SHACKLE
59
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 595046, Replaced By: A6753262640, +002A6753200637, +002A6753261281, +004N000960012332
65
SCREW TORSION BAR TO SHACKLE
68
WASHER
71
NUT SUPPORT TO SIDE MEMBER
74
BUSHING TORSION BAR TO REAR AXLE
77
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
80
NUT COMBINATION CYLINDER TO BEARING BRACKET
80
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
86
CONSOLE TORSION BAR,REAR
92
BEARING SHACKLE TO FRAME
95
SCREW , Replaced By: N308676012026
95
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
98
WASHER BRACKET TO FRAME
101
NUT SUPPORT TO SIDE MEMBER
114
BRACKET S-BUMP BUFFER,LEFT
114
BRACKET S-BUMP BUFFER,RIGHT
115
SCREW , Replaced By: N000960012384
115
SCREW STRUT TO SIDE MEMBER M 12X55
143
SHOCK ABSORBER , Replaced By: A0053265000
143
SHOCK ABSORBER REAR AXLE
144
JOINT TOP TO 005 326 53 00
145
JOINT BOTTOM TO 005 326 53 00
146
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
146
RUBBER BUFFER , Replaced By: A0003232044
146
RUBBER BUFFER , Replaced By: A0003233144
146
RUBBER MOUNTING TOP AND BOTTOM TO 675 323 11 00
146
RUBBER MOUNTINGTO 003 326 46 00
146
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
146
RUBBER MOUNTING TOP AND BOTTOM TO 673 323 00 00
146
GUMMIHULSE. RUBBER MOUNTING TOP AND BOTTOM TO 675 323 06 00
146
RUBBER BUFFER TOP AND BOTTOM TO 674 326 08 00
146
RUBBER MOUNTING004 326 01 00
146
RUBBER BUFFER , Replaced By: A0003230185
149
BUSHING TOP TO 677 326 00 00,5 711071
149
BUSHING TOP TO 675 326 18 00,005 326 38 00
149
BUSHING TOP TO 005 326 55 00,5 711072
149
BUSHING TOP TO 675 326 17 00
149
BUSHING TOP TO 673 326 14 00
149
BUSHING TOP TO 673 326 13 00
152
BUSHING TOP AND BOTTOM TO 005 323 63 00
152
SPACER RINGTO 002 323 86 00,003 323 03 00,
152
SPACER TUBE
152
BUSHING , Replaced By: A0003233150
167
SCREW SHOCK ABSORBER TO TOP BRACKET
170
NUT COMBINATION CYLINDER TO BEARING BRACKET
170
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
176
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
185
NUT , Replaced By: N913004020003
185
NUT CROSS MEMBER TO REINFORCEMENT
999
SPACER RING TOP 32X21X11 MM
999
RUBBER RING TOP 32X21X5MM
999
SPACER TUBE TOP TO 005 326 55 00,5 711072
