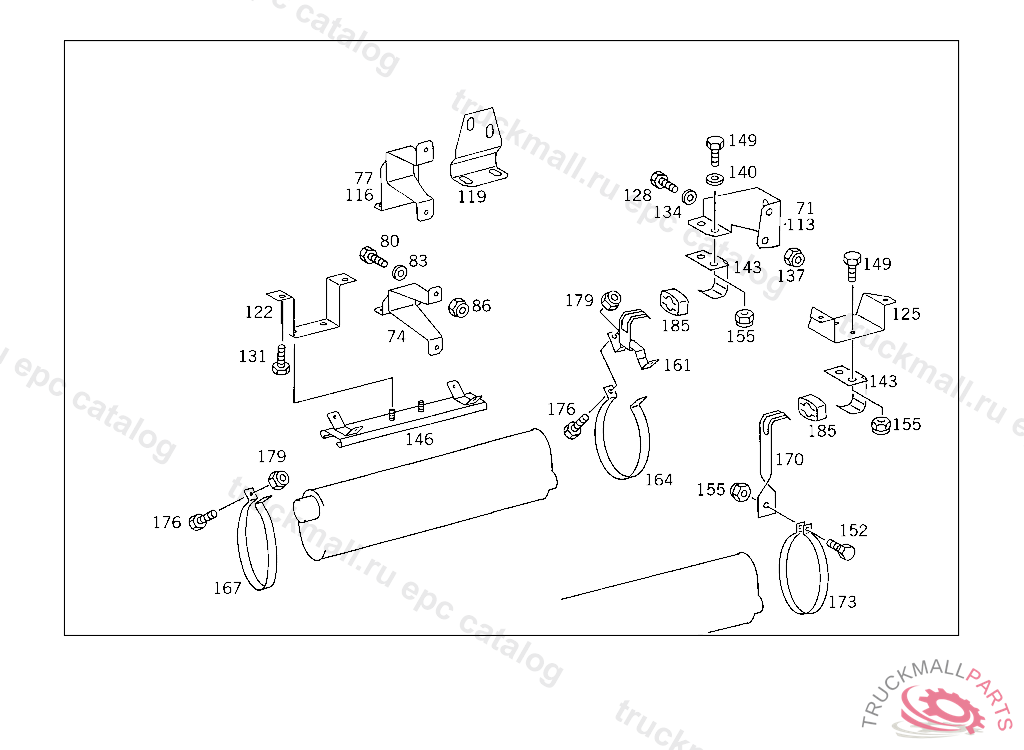

Поз.
Артикул
Описание
122
BRACKET EXHAUST MUFFLER
125
ANGLE EXHAUST MUFFLER,5 478324
125
BRACKET AT CROSS MEMBER,5 478324
125
ANGLE , NOT USED
125
ANGLE EXHAUST MUFFLER,5 478324
125
ANGLE EXHAUST MUFFLER,5 478324
131
SCREW , Replaced By: N304017010002
131
SCREW REAR EXHAUST PIPE TO MUFFLER
131
SCREW BRACKET TO SIDE MEMBER
134
WASHER , Replaced By: N006902011102
134
WASHER , Replaced By: N006902011100
134
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
140
WASHER , Replaced By: N007349010007
140
WASHER STRUT TO CROSS MEMBER
143
SUPPORT REAR EXHAUST MUFFLER
146
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6734901434
146
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
146
SUPPORT EXHAUST MUFFLER TO BRACKET
149
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
152
SCREW , Replaced By: N304017010002
152
SCREW BRACKET TO SIDE MEMBER
155
NUT STRAP TO BRACKET
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
167
STRAP EXHAUST MUFFLER TO SIDE MEMBER
170
BRACKET EXHAUST MUFFLER,REAR
173
BRACKET , Replaced By: A6744912841
173
BRACKET AT MUFFLER
176
SCREW BRACKET TO SIDE MEMBER
185
DAMPING PAD PARTICLE FILTER
999
SCREW PIPE CLAMP
999
SCREW , Replaced By: N304017008021
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE (TAIL PIPE),5 743553
999
BRACKET , Replaced By: A3524920141
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER BRACKET TO SUPPORT
