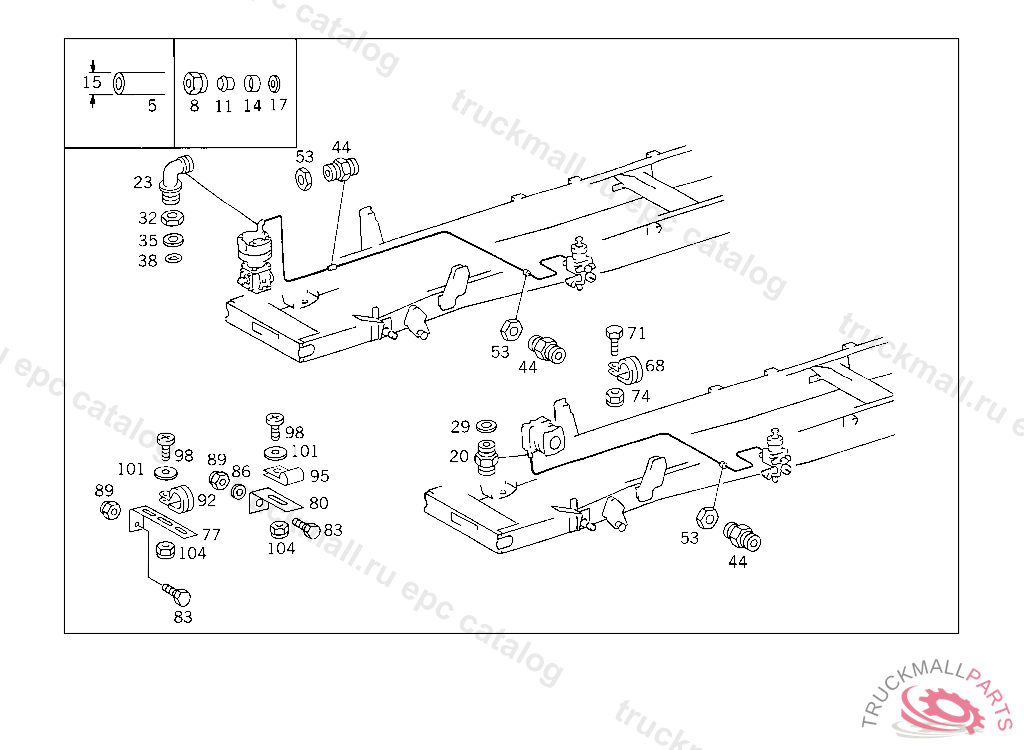

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT BUTT SCREW CONNECTION
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
THRUST RING BUTT SCREW CONNECTION
14
THRUST RING BUTT SCREW CONNECTION
17
SEAL RING , Replaced By: N007603012121
17
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
17
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
20
FITTING AIR RESERVOIR,CONNECTION: "13"
23
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
29
SEAL RING LINE CONNECTION
32
NUT SUCTION LINE TO OIL PUMP
35
THRUST RING SUCTION LINE TO OIL PUMP
38
SEAL RING LINE CONNECTION
44
FITTING SHUTTLE VALVE,CONNECTION: "20"
44
BULKHEAD FITTING THROUGH SIDE MEMBER, BUTT CONNECTION
44
BULKHEAD FITTING THROUGH SIDE MEMBER
44
BULKHEAD FITTING THROUGH SIDE MEMBER
53
NUT CHECK VALVE TO AIR RESERVOIR
53
NUT CHECK VALVE TO AIR RESERVOIR
53
NUT CHECK VALVE TO AIR RESERVOIR
68
CLAMP OIL DIPSTICK TO RADIATOR
71
SCREW , Replaced By: N000933008337
71
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
71
SCREW , Replaced By: A0099900101
74
NUT , Replaced By: N913004008001
77
BRACKET OIL LINE MOUNTING
83
SCREW , Replaced By: N308676012012
83
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
89
NUT SUPPORT TO SIDE MEMBER
92
CLAMP LINE MOUNTING
95
CLAMP DELIVERY AND SUCTION LINES TO STEERING
98
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
98
SCREW CLAMP TO BRACKET
101
WASHER COMPRESSED AIR LINE TO BRACKET
101
WASHER , Replaced By: N009021006208
104
NUT PUMP TO BRACKET
104
NUT , Replaced By: N913004006001
999
CLAMP HOSE TO BRACKET 25/20,5 206397
999
GROMMET LINE MOUNTING
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
CLAMP , Replaced By: N916016025200
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM/9 MM
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
T-FITTING
999
CONNECTOR REPAIR SIZE
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
CONNECTOR , Replaced By: A0029905378
999
DISTRIBUTOR LINE CONNECTION
