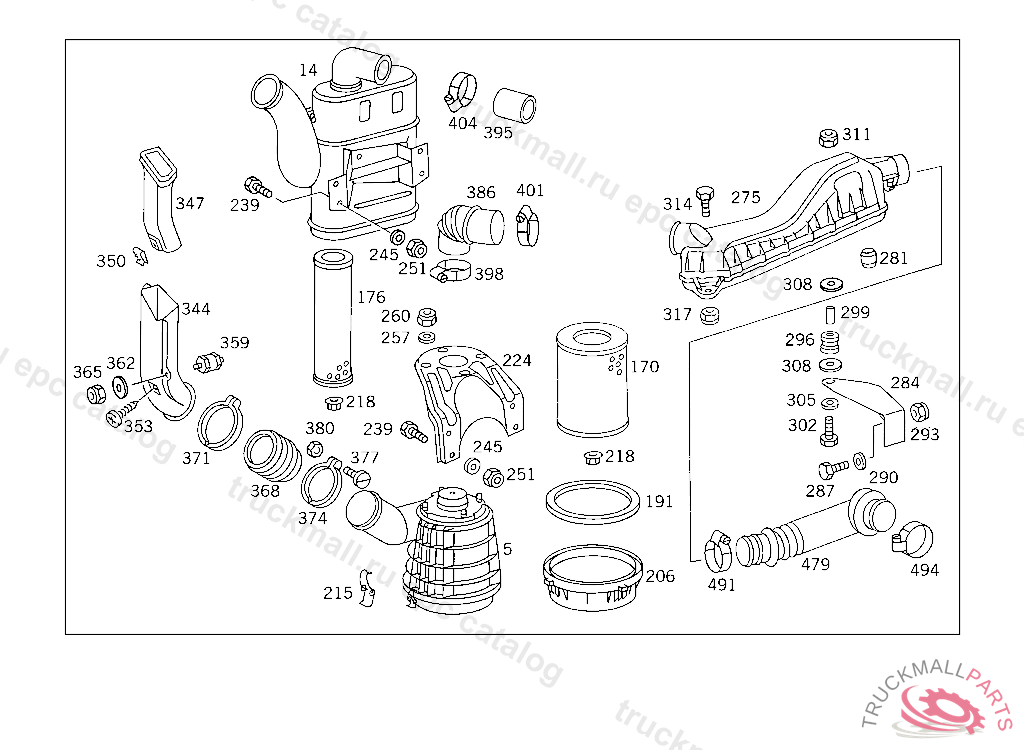

Поз.
Артикул
Описание
14
AIR CLEANERMANN & HUMMEL
176
FILTER ELEMENT , Replaced By: A0010948204
176
FILTER ELEMENT
215
FASTENER
218
NUT
218
NUT
218
NUT
218
NUT
239
SCREW , Replaced By: N308676016020
239
SCREW CONSOLE TO FRAME
245
WASHER , Replaced By: N000125017016
245
WASHER BRACKET TO FRAME
251
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
251
NUT COMBINATION CYLINDER TO BEARING BRACKET
275
MUFFLER (INTAKE MUFFLER)
281
RUBBER MOUNTING BRACKET TO BEARING BRACKET
284
BRACKET INTAKE MUFFLER
284
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 494909, Replaced By: A6735282440
287
SCREW PIPE CLAMP
287
SCREW , Replaced By: N304017008021
290
WASHER EXHAUST MUFFLER TO STRAP
290
WASHER , Replaced By: N000125008443
293
NUT , Replaced By: N913004008001
296
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
299
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
302
SCREW , Replaced By: N304017008040
302
SCREW BRACKET TO SIDE MEMBER
302
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
302
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
305
WASHER , Replaced By: N000125008443
305
WASHER EXHAUST MUFFLER TO STRAP
308
RETAINER INTAKE MUFFLER TO BRACKET
311
NUT , Replaced By: N913004008001
314
SCREW EXHAUST PIPE TO BRACKET
317
NUT , Replaced By: N910113010000
317
NUT STRAP TO BRACKET
344
AIR INTAKE PIPE
347
MUFFLER AIR INTAKE PIPE,INSIDE
350
LOCK ELECTRIC CABLE THRU CAB FLOOR
353
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
359
BUFFER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6739880511
359
BUFFER REFRIGERANT LINE TO CAB
362
WASHER , Replaced By: N009021008213
362
WASHER BRACKET TO LEFT SIDE MEMBER
365
NUT , Replaced By: N913004008001
368
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 034532, Replaced By: A0005280091
368
BOOT AIR INTAKE
371
CLAMP BOOT TO INTAKE PIPE
374
CLAMP BOOT TO AIR CLEANER,K 034532
374
CLAMP BOOT TO AIR CLEANER,K 034532
377
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
380
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
395
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
404
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
404
CLAMP , Replaced By: A0059970690
479
HOSE FROM MUFFLER TO ENGINE
491
CLAMP , Replaced By: N000000000675
491
CLAMP , Replaced By: A0059972990
491
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
494
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
WASHER CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N304017010030
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
