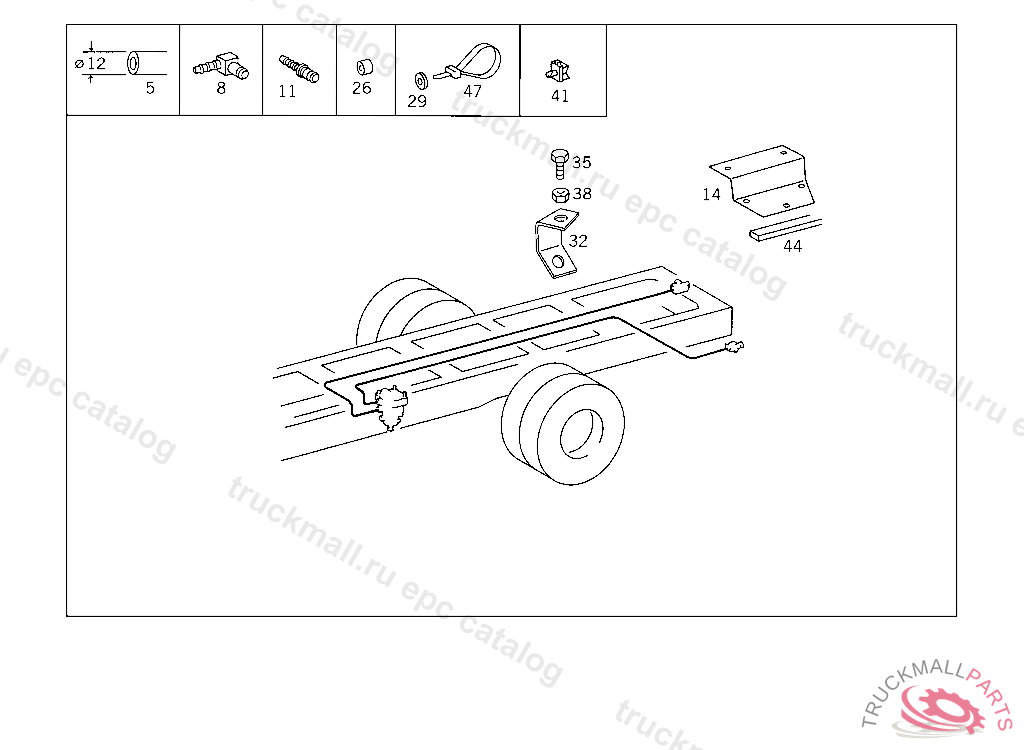

Поз.
Артикул
Описание
5
FITTING (PARTS KIT),LINE RUPTURE
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
8
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
8
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
11
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
14
BRACKET BRACKET TO CAB CONSOLE
26
RUBBER BUFFER LINE MOUNTING
29
WASHER BRACKET TO LEFT SIDE MEMBER
29
WASHER , Replaced By: A3609902340
32
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
38
NUT STRAP TO BRACKET
38
NUT , Replaced By: N910113010000
41
BRACKET RUBBER BUFFER TO BRACKET
44
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
44
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
44
EDGE GUARD SECTION , Replaced By: A0029873572
47
LOOM TIE LINE MOUNTING
47
LOOM TIE LINE MOUNTING 280 MM
47
LOOM TIE LINE MOUNTING
47
LOOM TIE LINE MOUNTING 280 MM
999
FITTING BRAKE LINE COUPLING,CONNECTION: "10",5 180857
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
BRACKET BRAKE BOOSTER ASSEMBLY, NOT USED
