Поз.
Артикул
Описание

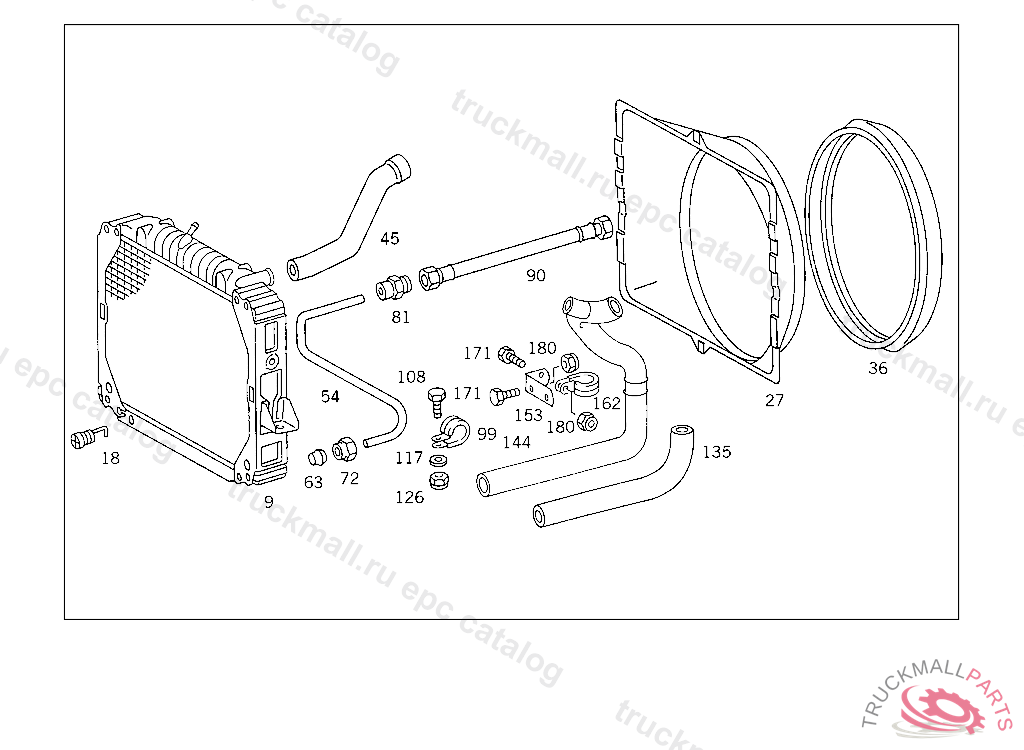

9
RADIATOR ,5 334255
9
RADIATOR
9
RADIATOR
9
RADIATOR ,5 334254
9
RADIATOR , Replaced By: A6745002703, +001A6739900032
9
RADIATOR , Replaced By: A6745002403, +001A6739900032, +005A6739900132
9
RADIATOR , Replaced By: A6735002103, +001A6739900132
9
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 418349, Replaced By: A6735001003
18
SCREW WATER DRAIN
27
AIR BAFFLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 937517, Replaced By: A6765050230
27
AIR BAFFLE ,K 053730
36
BOOT AIR BAFFLE TO 676 505 01 30
45
HOSE FROM RADIATOR TO THERMOSTAT,5 463262
45
HOSE FROM THERMOSTAT TO RADIATOR,5 3342555 463261
54
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
63
BALL-TYPE NIPPLE. SEAL CONE OIL LINES
72
NUT. UNION NUT RETURN
81
FITTING OIL LINES
81
FITTING , Replaced By: N915008008402
90
HOSE FROM TRANSMISSION TO OIL COOLER
99
CLAMP , Replaced By: N000000001045
99
CLAMP , Replaced By: N916016010211
99
CLAMP CABLE HARNESS MOUNTING
108
SCREW , Replaced By: N304017006016
108
SCREW PUMP TO BRACKET
117
WASHER COMPRESSED AIR LINE TO BRACKET
117
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
126
NUT PUMP TO BRACKET
126
NUT , Replaced By: N913004006001
135
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6765011182, +002A6769950110
135
HOSE FROM RADIATOR TO OIL COOLER,5 2348925 422711
144
HOSE ,5 422712K 053730
153
BRACKET COOLING WATER LINE,5 4227125 484924
153
BRACKET , Replaced By: A6765010620
153
BRACKET , Replaced By: A6765010320
162
CLAMP HOSE TO BRACKET,5 4227125 484924
171
SCREW , Replaced By: N304017008021
171
SCREW PIPE CLAMP
180
NUT , Replaced By: N913004008001
180
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
CLAMP , Replaced By: N000000000671
999
CLAMP HOSE TO BRACKET,5 4227125 484924
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
CLAMP HOSE TO RADIATOR AND TO OIL COOLER TO 676 501 11 82,676 501 12 82
999
HOSE FROM RADIATOR TO THERMOSTAT,5 463261
999
RADIATOR ,5 527394
999
RADIATOR ,5 527393, Replaced By: A6745002103, +001A6745011982, +004A6739900032, +004A6739900132
999
SCREW BRACKET TO WATER RADIATOR
999
SCREW DE-AERATION LINE TO RADIATOR
999
LINE , Replaced By: A0002610283
999
LINE , Replaced By: A0002610283
999
HOSE , Replaced By: A0159977082
