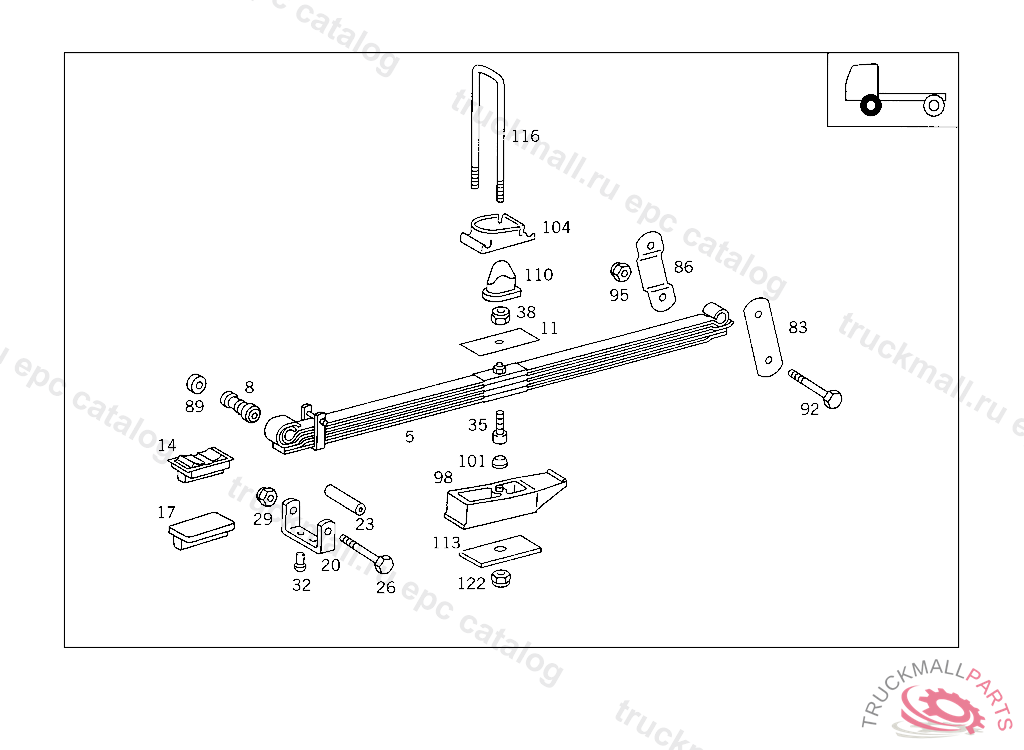

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
5
FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6753205402
5
FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 568926, Replaced By: A6753206802
8
BUSHING
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , Replaced By: A9703210184
14
RUBBER BUFFER BETWEEN THE SPRING EYES
17
SHIM BETWEEN THE SPRING LEAVES
20
SPRING CLAMP FRONT SPRING,5 533058 TO BE ADAPTED DURING ASSEMBLY
20
SPRING CLAMP , Replaced By: A6173210333
20
SPRING CLAMP , Replaced By: A0003219433
20
SPRING CLAMP , Replaced By: A6173210333
20
SPRING CLAMP ,5 940410
23
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
23
SPACER TUBE SPRING CLAMP
26
SCREW SPRING CLAMP,5 533057
26
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
29
NUT END PIECE TO EXHAUST PIPE
32
RIVET SPRING CLAMP TO SPRING LEAF
35
SPRING BOLT
38
HEXAGON NUT. NUT SPRING BOLT
38
NUT , Replaced By: N910113012005
83
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET
86
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET,5 358487
89
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 358488
89
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 358487
92
SCREW SPACER TUBE TO MOUNTING
92
HEXAGON HEAD BOLT FRONT SPRING TO FRONT SPRING FRONT BRACKET M18X1.5X160
92
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
92
SCREW , Replaced By: N000000000643
95
NUT CONSOLE TO SUPPORT
95
NUT TORSION BAR TO BEARING BRACKET,5 904661
98
SHIM FRONT SPRING TO FRONT AXLE,LEFT
98
SHIM FRONT SPRING TO FRONT AXLE,RIGHT,5 256347
98
SHIM ,5 361886, Replaced By: A6753221884, +001A3289910060
98
SHIM ,5 361886, Replaced By: A6753221784, +001A3289910060
101
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
101
DOWEL PIN , Replaced By: A6749910060
101
CENTERING BOLT (CENTERING CONE),5 361887
101
DOWEL PIN (CENTERING CONE),5 361886
104
PLATE FRONT SPRINGS TO FRONT AXLE
110
HELPER SPRING FRONT SPRING STOP
116
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
116
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT RIGHT
116
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
116
U-BOLT , Replaced By: A3163510025
116
U-BOLT , Replaced By: A3143510825
122
NUT FRONT SPRINGS TO FRONT AXLE
