Поз.
Артикул
Описание
5

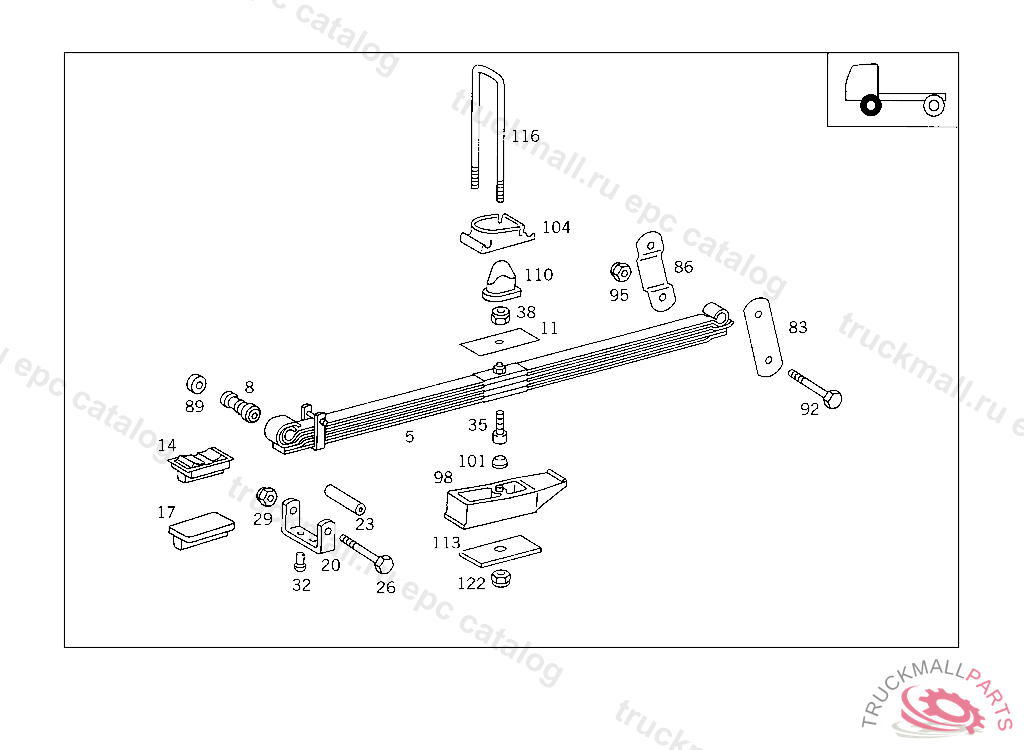

FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
8
BUSHING
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
RUBBER BUFFER BETWEEN THE SPRING EYES
17
SHIM BETWEEN THE SPRING LEAVES
20
SPRING CLAMP FRONT SPRING,5 533058 TO BE ADAPTED DURING ASSEMBLY
23
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
26
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
29
NUT END PIECE TO EXHAUST PIPE
32
RIVET SPRING CLAMP TO SPRING LEAF
35
SPRING BOLT
38
NUT , Replaced By: N910113012005
38
HEXAGON NUT. NUT SPRING BOLT
86
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET,5 358487
89
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 358487
89
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 4264025 508029
89
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 358488
92
HEXAGON HEAD BOLT FRONT SPRING TO FRONT SPRING FRONT BRACKET M18X1.5X160
92
SCREW , Replaced By: N000000000643
92
SCREW SPACER TUBE TO MOUNTING
92
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
95
NUT TORSION BAR TO BEARING BRACKET,5 904661
95
NUT CONSOLE TO SUPPORT
110
HELPER SPRING FRONT SPRING STOP
116
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
116
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT RIGHT
122
NUT FRONT SPRINGS TO FRONT AXLE
