Поз.
Артикул
Описание

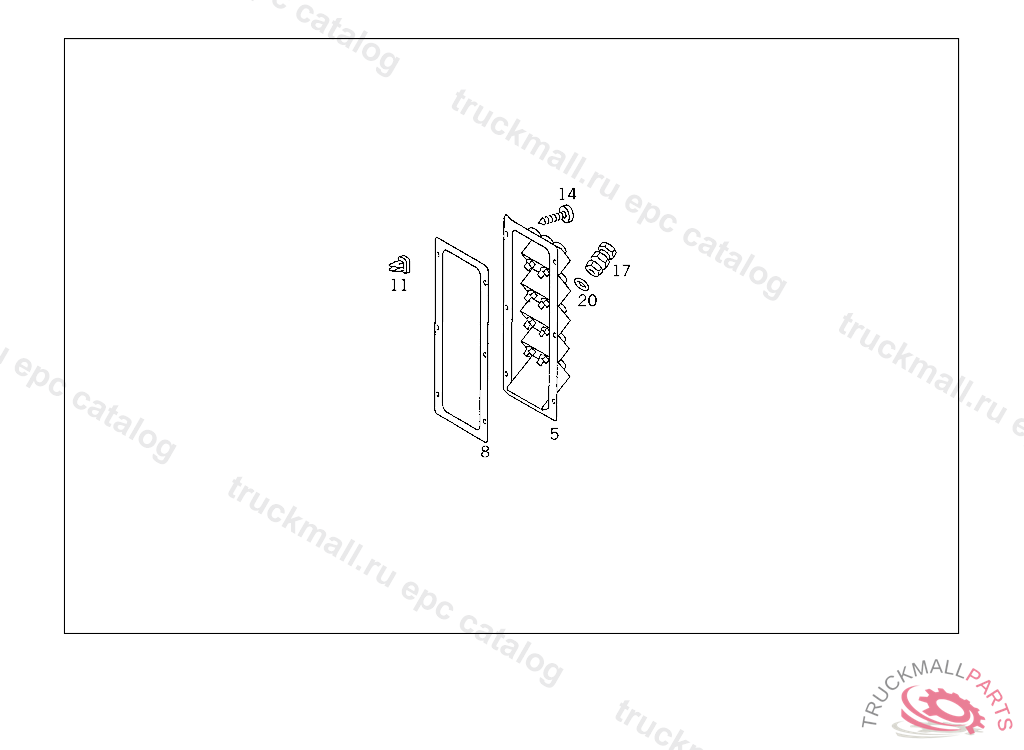

5
CONNECTION PLATE AT FIRE WALL,K 063043
8
GASKET , Replaced By: A6734290180
8
GASKET , Replaced By: A6734290280
8
GASKET BRACKET TO FIRE WALL
11
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
11
TREENAIL BRACKET TO FIRE WALL
14
SHEET METAL SCREW BRACKET TO FIRE WALL
17
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
17
PLUG , Replaced By: A6739971586
20
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
999
PLATE COMPRESSED AIR LINE MOUNTING
999
CONNECTION PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW PLATE TO BRACKET
999
SCREW PLATE TO BRACKET, Replaced By: N007985006590
999
SCREW BRACKET MOUNTING M 6X20
999
SCREW PLATE TO BRACKET, Replaced By: N000000001481
