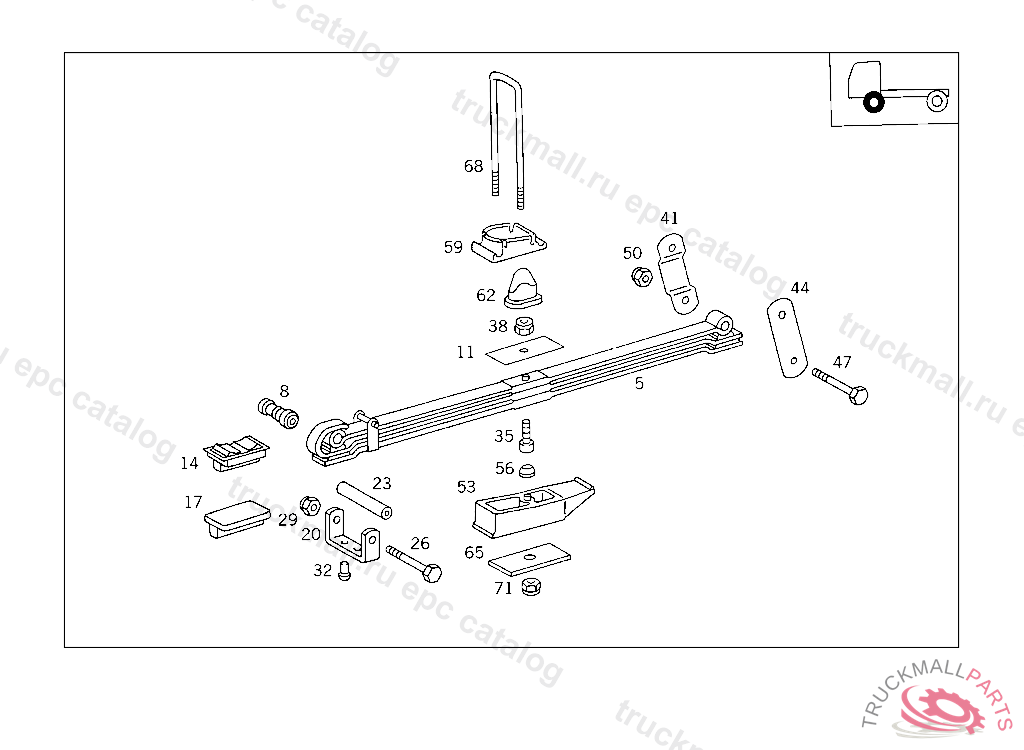

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2"
5
FRONT SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 050015, Replaced By: A6743205502
8
BUSHING
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , Replaced By: A9703210184
14
RUBBER BUFFER BETWEEN THE SPRING EYES
14
RUBBER BUFFER ,5 393361
17
SHIM BETWEEN THE SPRING LEAVES
20
SPRING CLAMP ,5 484790
20
SPRING CLAMP ,5 940410
20
SPRING CLAMP , Replaced By: A6173210333
20
SPRING CLAMP , Replaced By: A6173210333
23
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
23
SPACER TUBE SPRING CLAMP
26
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
26
SCREW SPRING CLAMP,5 533057
29
NUT END PIECE TO EXHAUST PIPE
32
RIVET SPRING CLAMP TO SPRING LEAF
35
SPRING BOLT ,5 227450
38
HEXAGON NUT. NUT SPRING BOLT
38
NUT , Replaced By: N910113012005
41
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
44
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
47
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X130,5 548534
50
NUT COMBINATION CYLINDER TO BEARING BRACKET
50
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
53
SHIM FRONT SPRINGS TO FRONT AXLE
53
SHIM ,5 361886, Replaced By: A6753221584, +001A3289910060
53
SHIM FRONT SPRINGS TO FRONT AXLE
53
SHIM ,5 361886, Replaced By: A6753221484, +001A3289910060
53
SHIM FRONT SPRINGS TO FRONT AXLE
53
SHIM ,5 361886, Replaced By: A6753221484, +001A3289910060
53
SHIM FRONT SPRINGS TO FRONT AXLE
53
SHIM ,5 361886, Replaced By: A6733221784, +001A3289910060
56
CENTERING BOLT (CENTERING CONE),5 361887
56
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
56
DOWEL PIN (CENTERING CONE),5 361886
56
DOWEL PIN , Replaced By: A6749910060
59
PLATE FRONT SPRINGS TO FRONT AXLE
62
HELPER SPRING FRONT SPRING STOP
65
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
65
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
68
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
68
U-BOLT , Replaced By: A3143510725
68
U-BOLT FRONT SPRING TO FRONT AXLE,REAR 180 MM
68
U-BOLT , Replaced By: A3143510625
71
NUT FRONT SPRINGS TO FRONT AXLE
