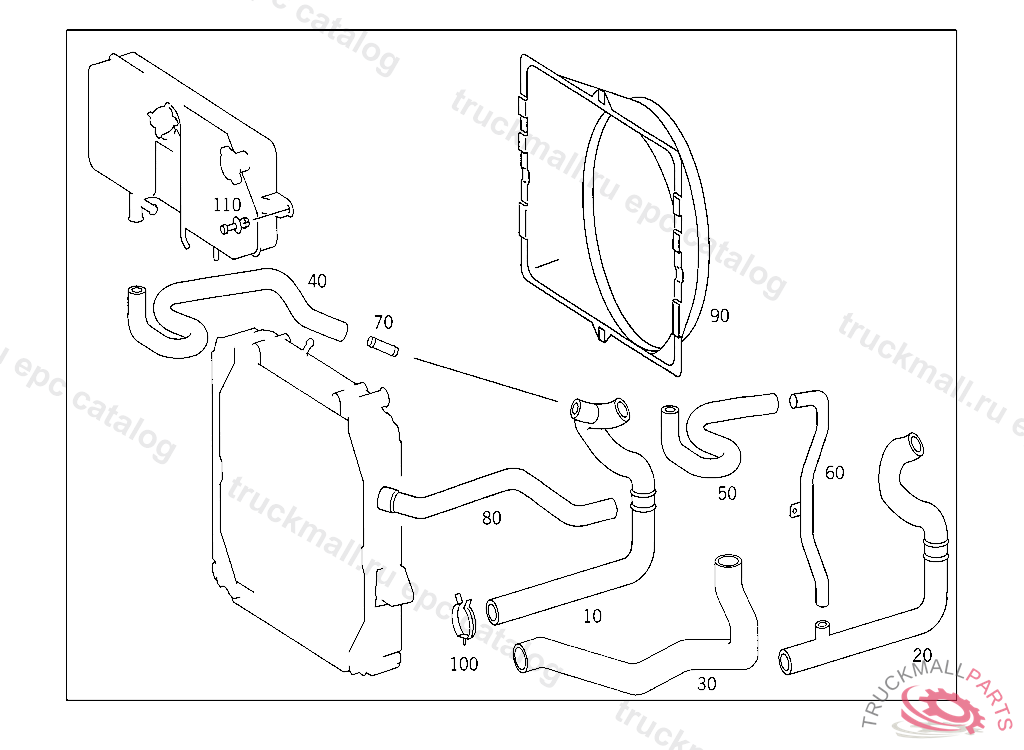

Поз.
Артикул
Описание
10
HOSE FROM WATER PUMP TO RADIATOR
10
HOSE FROM WATER PUMP TO RADIATOR
10
HOSE FROM WATER PUMP TO RADIATOR
20
HOSE FROM WATER PUMP TO RADIATOR
30
HOSE FROM RADIATOR TO OIL COOLER,K 053730
40
HOSE FROM EXPANSION TANK TO WATER PUMP
40
HOSE FROM EXPANSION TANK TO WATER PUMP
50
HOSE FROM EXPANSION TANK TO WATER PUMP
50
HOSE , Replaced By: A6765000275
60
LINE FROM EXPANSION TANK TO WATER PUMP
60
LINE FROM EXPANSION TANK TO WATER PUMP
70
LINE FROM EXPANSION TANK TO WATER PUMP
80
HOSE FROM OIL FILLER NECK TO OIL PAN,K 056865
90
AIR BAFFLE
90
AIR BAFFLE
90
AIR BAFFLE
100
BRACKET HOSE TO FAN SHROUD
110
RIVET COOLANT LINE ON FAN SHROUD
999
CLAMP HOSE TO BRACKET,5 4227125 484924
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
SPACER RING
999
HOSE ,5 422712K 053730
999
BRACKET COOLING WATER LINE,5 4227125 484924
999
HOSE ,K 053730
999
HOSE RETURN LINE AUXILIARY RADIATOR ON ENGINE, TO BE ADAPTED DURING ASSEMBLY
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE ,K 053730
999
HOSE FROM OIL FILLER NECK TO OIL PAN
999
WASHER , 024325
999
NUT BRACKET TO BRACKET
