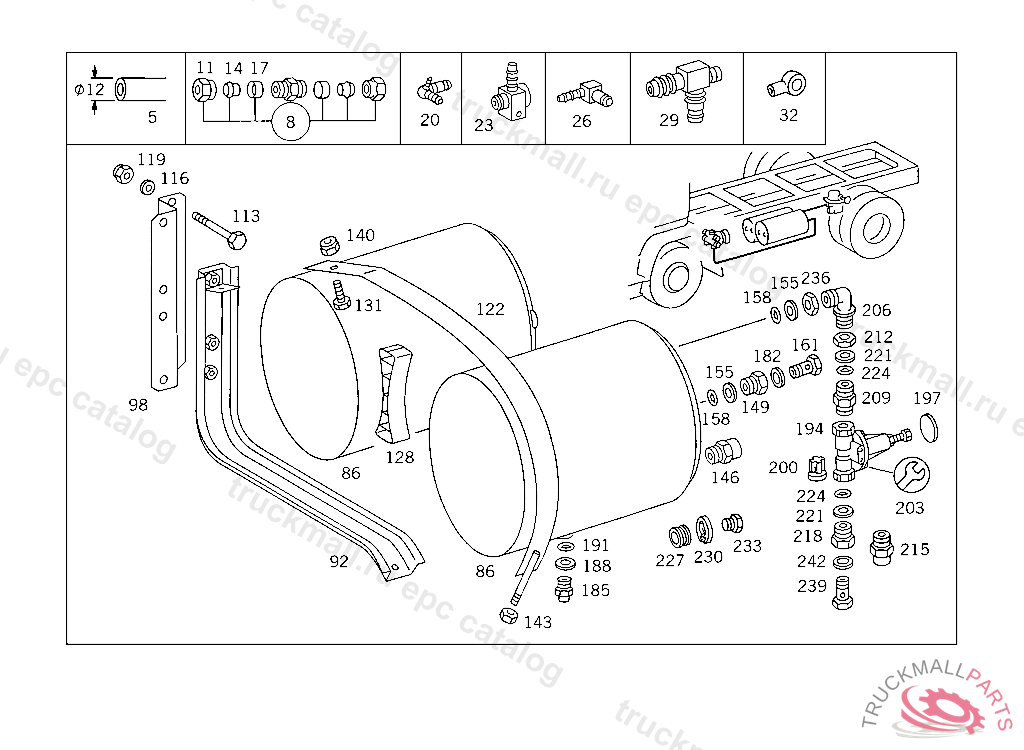

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
FITTING , Replaced By: A0029906171
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION, Replaced By: N000000006239
11
UNION NUT LINE CONNECTION
14
GLAND , Replaced By: A0019901967
14
SEAL CONE LINE CONNECTION
17
SLEEVE LINE CONNECTION
23
CONNECTOR RELEASE BEARING LUBRICATION
23
CONNECTOR , Replaced By: A0019904078
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
32
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
86
RESERVOIR COMPRESSED AIR 20 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
86
RESERVOIR ,5 934167, Replaced By: A0034321401
86
RESERVOIR COMPRESSED AIR 20 L
92
CONSOLE AIR RESERVOIR
113
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
113
SCREW , Replaced By: N308676012012
116
WASHER BRACKET TO FRAME
122
STRAP AIR RESERVOIR TO CONSOLE
143
NUT STRAP TO BRACKET
143
NUT , Replaced By: N910113010000
146
FITTING LINE CONNECTION
149
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
155
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
158
O-RING CHECK VALVE TO AIR RESERVOIR
161
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
182
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
185
VALVE. DRAIN VALVE DRAIN
185
VALVE DRAIN, Replaced By: A0004322407
185
VALVE DRAIN, Replaced By: A0004322107
188
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
188
THRUST RING CHECK VALVE TO AIR RESERVOIR
191
O-RING CHECK VALVE TO AIR RESERVOIR
194
VALVE (OVERFLOW VALVE) GRAU
194
VALVE , Replaced By: A0044293144
194
VALVE , Replaced By: A0044293144
194
VALVE , Replaced By: A0044293244
194
VALVE (OVERFLOW VALVE) WABCO
197
DIAPHRAGM
197
DIAPHRAGM , Replaced By: A0004290745
200
VALVE
203
REPAIR KITBOSCH
203
REPAIR KITTO 001 429 52 44
209
FITTING SHUTTLE VALVE,CONNECTION: "20"
212
NUT CHECK VALVE TO AIR RESERVOIR
215
FITTING OVERFLOW VALVE,CONNECTION: "10"
218
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
221
THRUST RING CHECK VALVE TO AIR RESERVOIR
221
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
224
O-RING CHECK VALVE TO AIR RESERVOIR
227
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
230
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
233
SCREW. UNION SCREW LINE CONNECTION
236
NUT CHECK VALVE TO AIR RESERVOIR
239
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
242
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
242
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING LINE CONNECTION
999
HOLLOW SCREW LINE CONNECTION
