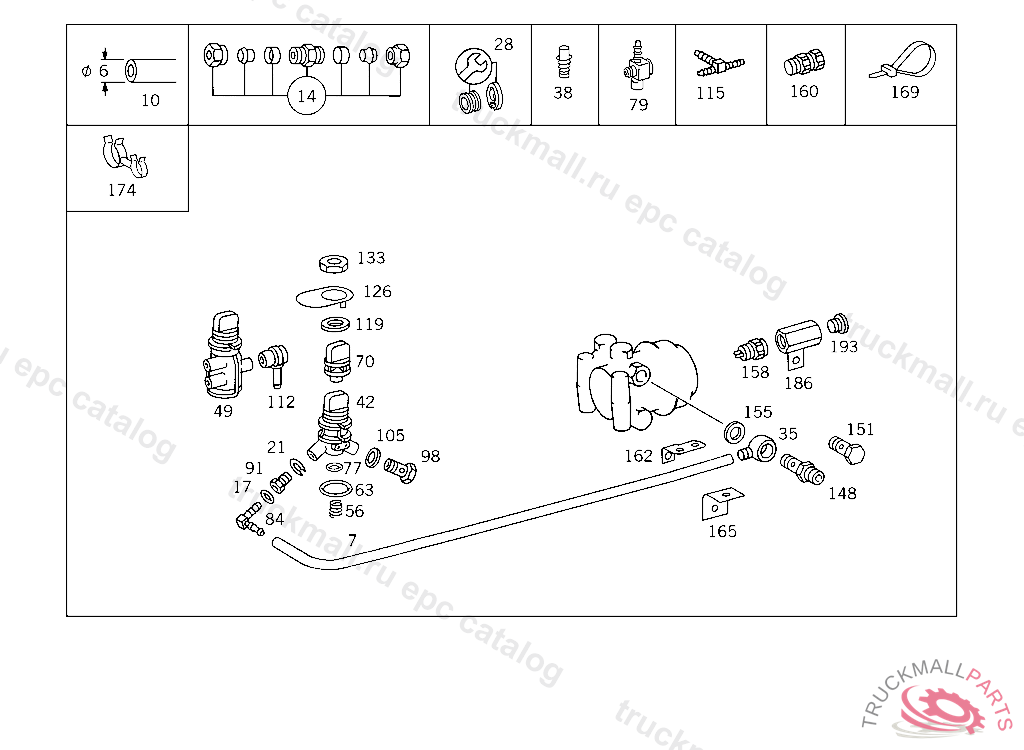

Поз.
Артикул
Описание
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
PLASTIC PIPE RISING PIPE 4X6 MM
14
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
17
LOCK RING LINE CONNECTION
17
LOCK RING LINE CONNECTION
17
SEAL RING , Replaced By: A0009940747
21
LOCK LINE CONNECTION
21
LOCK LINE CONNECTION
21
LOCK , Replaced By: A0009945448
28
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
28
REPAIR KIT , Replaced By: A0309971748
35
BANJO UNION 3/2-WAY
35
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
35
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
38
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
42
VALVE DIFFERENTIAL LOCK CONTROL WABCO
42
VALVE DIFFERENTIAL LOCK CONTROL WABCO
42
VALVE DIFFERENTIAL LOCK CONTROL WABCO
42
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
42
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
42
VALVE P.T.O. CONTROL,TOP BOSCH
42
VALVE 3/2-WAY VOSS
42
VALVE 3/2-WAY KNORR
42
VALVE 3/2-WAY WABCO
42
VALVE 3/2-WAY BOSCH
42
VALVE DIFFERENTIAL LOCK CONTROL WABCO
42
VALVE DIFFERENTIAL LOCK CONTROL WABCO
42
VALVE DIFFERENTIAL LOCK CONTROL WABCO
42
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
42
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
42
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
49
VALVE P.T.O. CONTROL,BOTTOM BOSCH
56
SPRING INSIDE WABCO
56
SPRING INSIDE WABCO
63
SEAL RING INSIDE WABCO
63
SEAL RING
63
SEAL RING INSIDE WABCO
63
SEAL RING
63
SEAL RING
70
ACTUATING PARTWABCO
70
ACTUATING PARTTO 003 997 24 36,003 997 31 36
70
PROTECTIVE CAPBOSCH
77
SEAL RING TOP WABCO
77
SEAL RING
77
SEAL RING
77
SEAL RING TOP WABCO
77
SEAL RING
79
CONNECTOR DISTRIBUTOR TO CAB
84
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
91
SCREW. UNION SCREW LINE CONNECTION
91
SCREW. UNION SCREW LINE CONNECTION
91
SCREW. UNION SCREW LINE CONNECTION
91
SCREW. UNION SCREW LINE CONNECTION
91
SCREW. UNION SCREW LINE CONNECTION
91
SCREW. UNION SCREW , Replaced By: A0009973734
98
HOLLOW SCREW HEATING CONNECTION
98
HOLLOW SCREW LINE CONNECTION
98
HOLLOW SCREW LINE CONNECTION
105
SEAL RING LINE CONNECTION
105
SEAL RING LINE CONNECTION
112
PIPE SOCKET LINE CONNECTION
115
DISTRIBUTOR HOSE WIDTH, 6 MM
119
WASHER AT TWO-WAY VALVE
126
SYMBOL PLATE P.T.O. I
126
SYMBOL PLATE P.T.O. II
126
UNIT IDENTIFICATION PLATE 3/2-WAY VALVE
133
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
148
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
148
DOUBLE FITTING LINE CONNECTION TO P.T.O. SHIFTING CYLINDER
148
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
148
FITTING CONNECTION TO STOP LIGHT SWITCH
148
FITTING , Replaced By: A0029975872
151
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
151
HOLLOW SCREW HEATING CONNECTION
155
SEAL RING LINE CONNECTION
158
SWITCH EXHAUST BRAKE,K 251255
158
SWITCH EXHAUST BRAKE,K 251255
158
SWITCH EXHAUST BRAKE,K 251255
158
SWITCH RETARDER
160
SCREW-IN FITTING
160
FITTING , Replaced By: A0019978971
162
BRACKET COMPRESSED AIR LINE, NOT USED
162
BRACKET COMPRESSED AIR LINE, NOT USED
162
BRACKET COMPRESSED AIR LINE, NOT USED
165
ANGLE LINE MOUNTING
165
ANGLE LINE MOUNTING
169
LOOM TIE BRAKE LINE MOUNTING
169
LOOM TIE LINE MOUNTING
169
LOOM TIE LINE MOUNTING 280 MM
174
CLAMP6/14-15 MM
174
CLAMP6/14-15 MM
174
CLAMP , Replaced By: A1239950265, +001A0009951765
174
HOSE BRACKET LINE MOUNTING
186
BRACKET AT FITTING
186
BRACKET , Replaced By: A6204203686
193
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
193
SCREW PLUG , Replaced By: N000908012009
999
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
