Поз.
Артикул
Описание

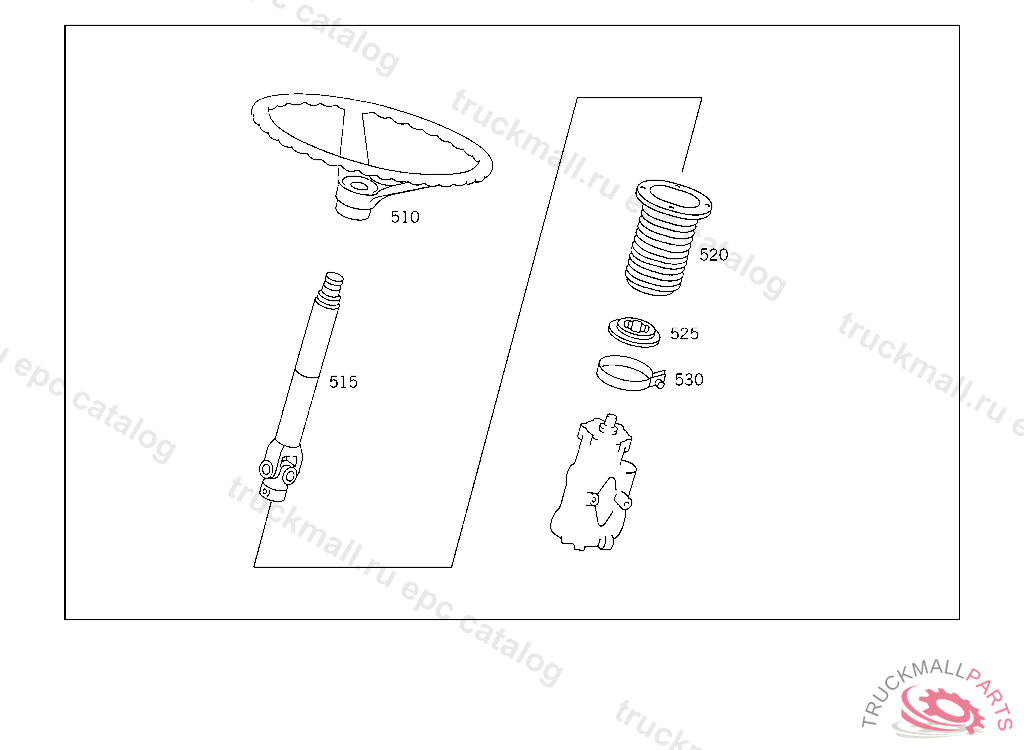

510
STEERING WHEEL , NO.8316INO.7C52INO.7B90INO.9051I II I
510
STEERING WHEEL ,K 072837 NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III
510
STEERING WHEEL , Replaced By: A3184640001
515
STEERING SHAFT ,K 053986
515
STEERING SHAFT ,5 212526K 053985
515
STEERING SHAFT ,5 212526K 053985
515
STEERING SHAFT ,K 053986
515
STEERING SHAFT ,5 212526K 053985
515
STEERING SHAFT ,5 212526K 053985
515
STEERING SHAFT ,K 053986
515
STEERING SHAFT ,K 053986
520
BOOT STEERING SHAFT
520
BOOT STEERING SHAFT BEARING TO CAB,K 053986 NO.8316INO.7C52INO.7B90INO.9051I II I
520
BOOT STEERING SHAFT,K 053985
520
BOOT , Replaced By: A6734621296
520
BOOT STEERING COLUMN COVERING,TOP
525
SEAL RING BOOT TO STEERING
530
CLAMP BOOT TO STEERING
530
CLAMP BOOT TO STEERING
999
LINE12 MM, ORDER BY THE METER4 691315
999
LINE (DELIVERY LINE) FROM FITTING TO STEERING
999
JOINT R.H. THREAD LEMFOERDER,5 180856
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
SCREW BRACKET TO CONSOLE M 12X1.5X65
999
FITTING DELIVERY LINE TO PUMP
999
PROTECTIVE CAP
999
WASHER LEVER TO BRACKET 30X10.5X4 MM
999
BRACKET FEED LINE AND RETURN LINE,5 346007
999
LINE , Replaced By: A0004291001
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955601
999
BRACKET , Replaced By: A6173020440
999
BRACKET AIR INTAKE PIPE
999
HOSE ,K 055044
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
999
LINE , Replaced By: A0004292301
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 163366
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,K 244309
999
PITMAN ARM
999
PITMAN ARM
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163366
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
999
STEERING SHAFTLEMFOERDR,520 MM,5 404617
999
STEERING SHAFT , Replaced By: A6824607309
999
DRAG LINKLEMFOERDER
999
PITMAN ARM
999
PITMAN ARM , Replaced By: A6754631701
999
PITMAN ARM ,K 055089
999
PITMAN ARM ,K 055089
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
DRAG LINKEHRENREICH,5 424630
999
DRAG LINKEHRENREICH,5 424630
999
DRAG LINKLEMFOERDER,K 055089
999
DRAG LINKLEMFOERDER,K 055089
999
PITMAN ARM ,5 424630
999
PITMAN ARM ,5 424630
999
SCREW , Replaced By: N308676016020
999
SCREW-IN FITTING FROM DELIVERY LINE TO STEERING
999
SCREW CONSOLE TO FRAME
