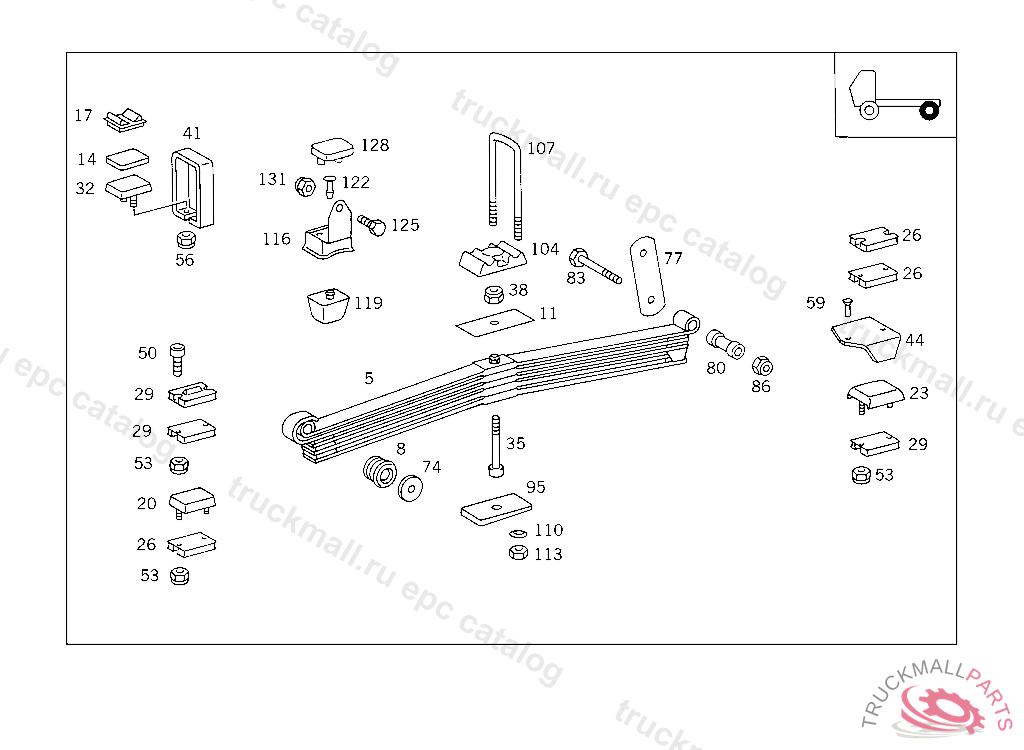

Поз.
Артикул
Описание
5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
8
BUSHING SPRING EYE,FRONT AND REAR
11
SHIM , Replaced By: A9703210184
11
SHIM , Replaced By: A9703210184
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM BETWEEN THE SPRING LEAVES
17
RUBBER BUFFER BETWEEN THE SPRING EYES
32
RUBBER BUFFER
35
SPRING BOLTM 12X110
38
NUT BRACKET TO BEARING BRACKET
41
SPRING CLAMP AT SPRING LEAF NO.5
56
NUT BRACKET TO BRACKET
74
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
77
SHACKLE (SPRING SHACKLE)
80
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
83
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
86
NUT TORSION BAR TO BEARING BRACKET,5 904661
95
SHIM
104
PLATE REAR SPRING TO REAR AXLE,K 028585
107
U-BOLT REAR SPRING TO REAR AXLE 320 MM
110
WASHER FRONT SPRINGS TO FRONT AXLE
113
NUT TORSION BAR TO BEARING BRACKET,5 904661
116
BRACKET AXLE STOP
116
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733200243
119
HELPER SPRING RUBBER BUFFER
122
PIN RUBBER BUFFER
125
SCREW EXHAUST PIPE TO SIDE MEMBER
128
SHIM BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
131
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
131
NUT , Replaced By: N913023010002
