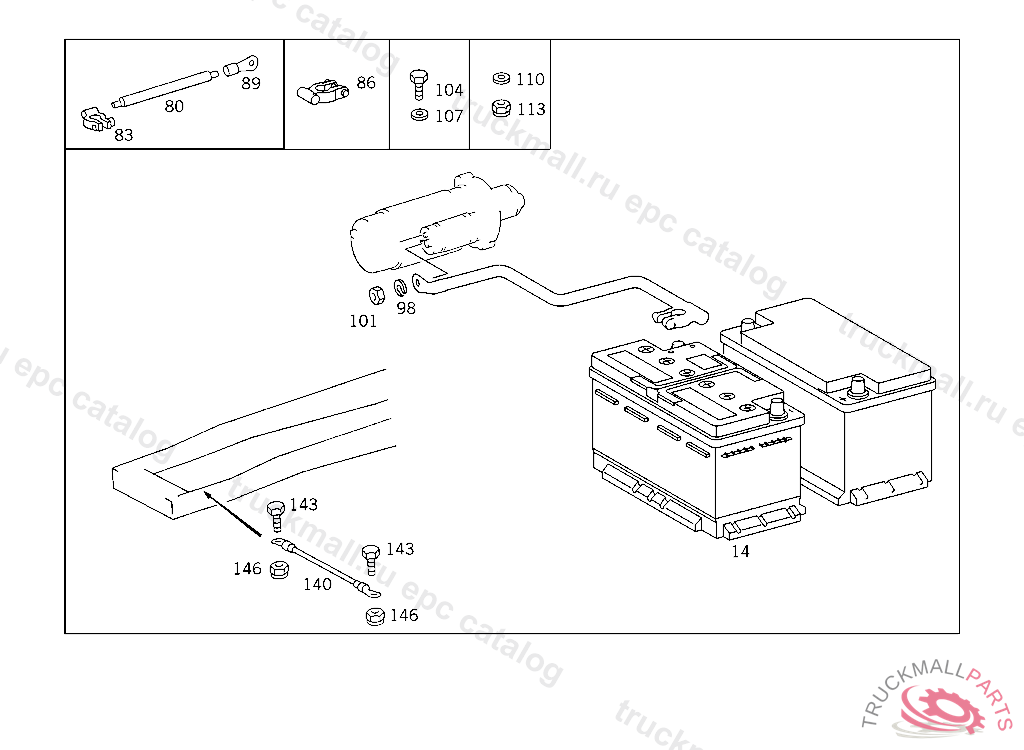

Поз.
Артикул
Описание
14
BATTERY , Replaced By: A0045413001
14
BATTERY12V/88AH
14
BATTERY FILLED AND CHARGED 12V/115AH
14
BATTERY FILLED AND CHARGED 12V/88AH
14
BATTERY12V/88AH, Replaced By: A0009823808
14
BATTERY , Replaced By: A0045413101
14
BATTERY FILLED AND CHARGED 12V/140AH
80
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
83
SOLDERING TERMINAL POS. POLE
86
SOLDERING TERMINAL POS. POLE
89
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
89
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
98
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
101
NUT BATTERY CABLE
104
SCREW END PIECE TO EXHAUST PIPE M 10X25
107
WASHER RADIATOR TO RUBBER MOUNTING
107
WASHER RADIATOR TO RUBBER MOUNTING
107
WASHER , Replaced By: N000125010532
110
WASHER , Replaced By: N000125015019
110
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
113
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
113
NUT , Replaced By: N913023010002
140
ELECTRIC CABLE GROUND CABLE
143
SCREW BRACKET TO BRACKET
143
SCREW BATTERY MOUNTING
143
SCREW , Replaced By: N910142008001
146
NUT BRACKET TO BRACKET
999
NUT EXHAUST PIPE TO SIDE MEMBER
999
THREADED UNION TERMINAL 30,CABLE TO STARTING MOTOR,K 199371
999
SCREW STRUT TO FRAME, LEFT
999
SPACER TUBE ELECTRIC CABLE THRU FRAME, FROM IDENT NO.K 224007, EXCEPT FOR K 222189
