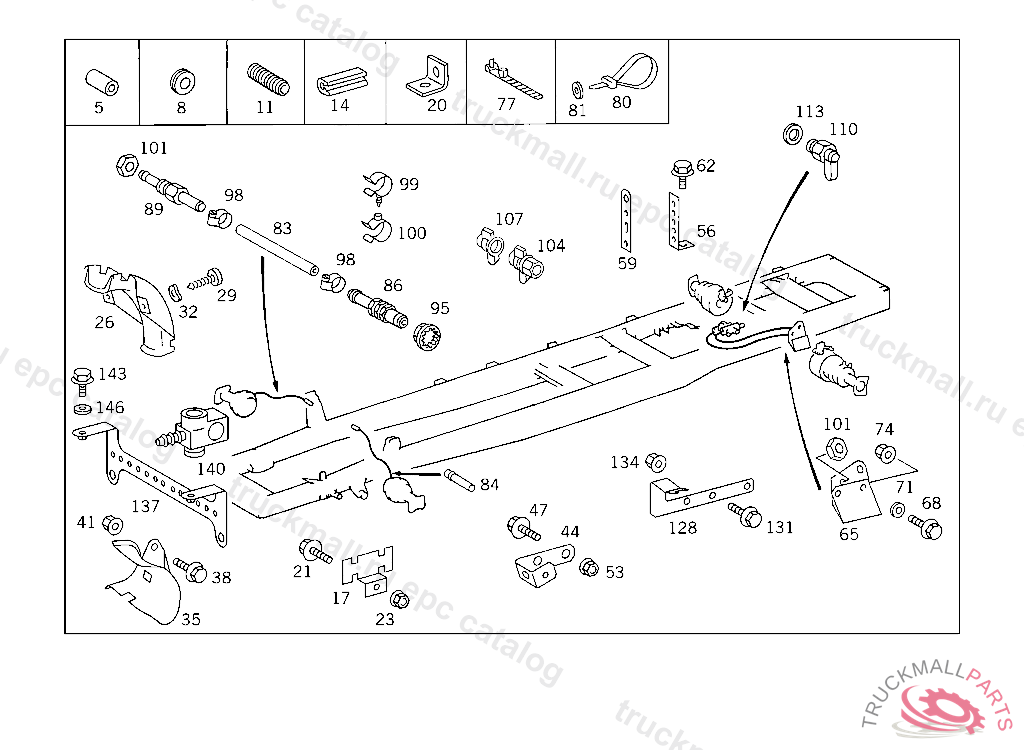

Поз.
Артикул
Описание
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
8
GROMMET FOR PASSAGE OF LINE
11
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
14
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
14
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
17
BRACKET BREATHER LINE TO SIDE MEMBER
20
BRACKET SENSOR CABLE TO FRONT AXLE
20
ANGLE LINE MOUNTING
21
SCREW CLAMP TO BRACKET,5 597426
21
SCREW , Replaced By: N910142008009
23
NUT BRACKET TO BRACKET
26
BRACKET COMPRESSED AIR LINE TO CAB
29
SHEET METAL SCREW BRACKET TO CAB
32
SPRING WASHER LICENSE PLATE TO BRACKET
35
BRACKET CABLE HARNESS
35
BRACKET LEFT
38
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
41
NUT , Replaced By: N913023010002
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
BRACKET LINE MOUNTING
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
47
SCREW , Replaced By: N910105010009
53
NUT , Replaced By: N913023010002
53
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
BRACKET LINE TO REAR AXLE, NOT USED
62
SCREW LINE MOUNTING M 10X20
65
BRACKET COMPRESSED AIR LINE
68
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
71
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
71
WASHER , Replaced By: N006902011100
71
WASHER , Replaced By: N006902011102
74
NUT , Replaced By: N913023010002
74
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
77
LOOM TIE
80
LOOM TIE LINE MOUNTING 280 MM
80
LOOM TIE LINE MOUNTING
83
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
84
FITTING DIAPHRAGM CYLINDER,CONNECTION:
84
FITTING FRONT AXLE BRAKE HOSE
86
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
89
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
95
LOCK REAR AXLE BRAKE HOSE,K 181360
98
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
98
CLAMP HOSE TO FITTING AND TO OIL TANK
99
CLAMP BRAKE HOSE
100
CLAMP BRAKE HOSE
101
NUT BRACKET TO SIDE MEMBER
104
TEST CONNECTION
104
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
104
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
104
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
104
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
107
PLUG
110
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
110
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
113
SEAL RING LINE CONNECTION
128
BRACKET LEFT
128
BRACKET RIGHT
131
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
134
NUT , Replaced By: N913023010002
134
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
137
BRACKET DISTRIBUTOR TO CAB
140
CONNECTOR DISTRIBUTOR TO CAB
143
SCREW DISTRIBUTOR TO CAB
146
WASHER COMPRESSED AIR LINE TO BRACKET
146
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
