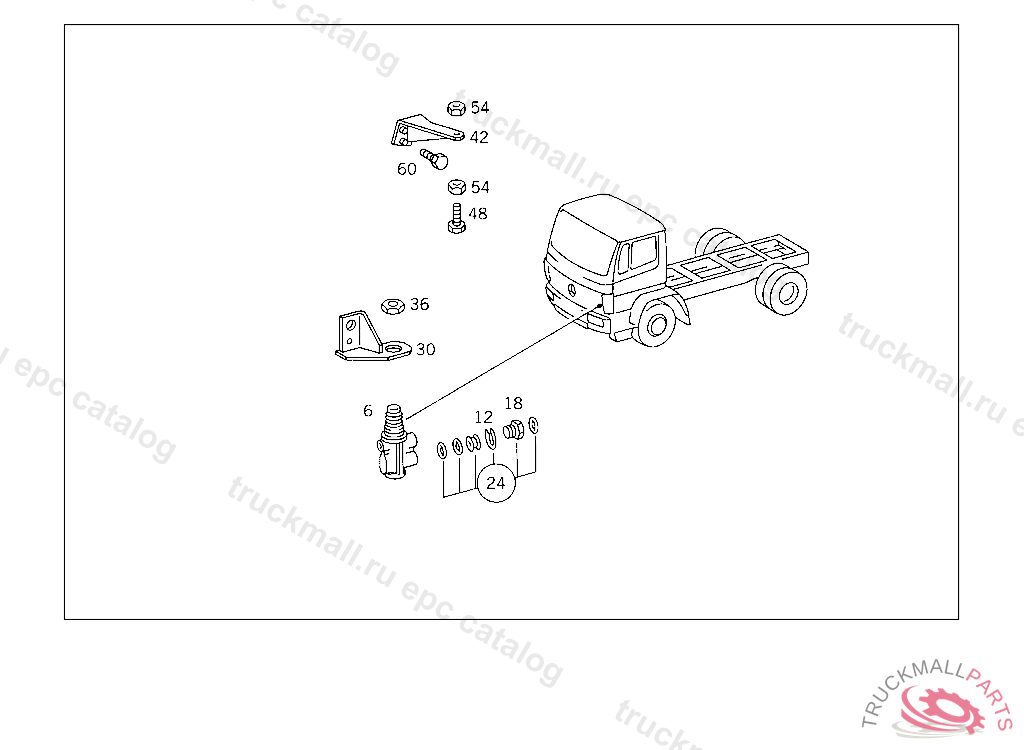

Поз.
Артикул
Описание
6
VALVE 3/2-WAY VALVE
12
LOCK LINE CONNECTION
12
LOCK , Replaced By: A0009945448
18
SCREW. UNION SCREW , Replaced By: A0009973734
18
SCREW. UNION SCREW LINE CONNECTION
24
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
24
REPAIR KIT , Replaced By: A0309971748
30
BRACKET 3/2-WAY VALVE TO BEARING BRACKET
36
NUT SUCTION LINE TO OIL PUMP
42
LEVER 3/2-WAY VALVE OPERATION
42
LEVER 3/2-WAY VALVE OPERATION
48
SCREW CLUTCH PEDAL
54
NUT
54
NUT , Replaced By: N304035008001
60
SCREW , Replaced By: N304017006016
60
SCREW PUMP TO BRACKET
999
BREATHER , Replaced By: A3933280065
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
GASKET KIT 3/2-WAY VALVE
999
LOCK RING LINE CONNECTION
999
SEAL RING , Replaced By: A0009940747
