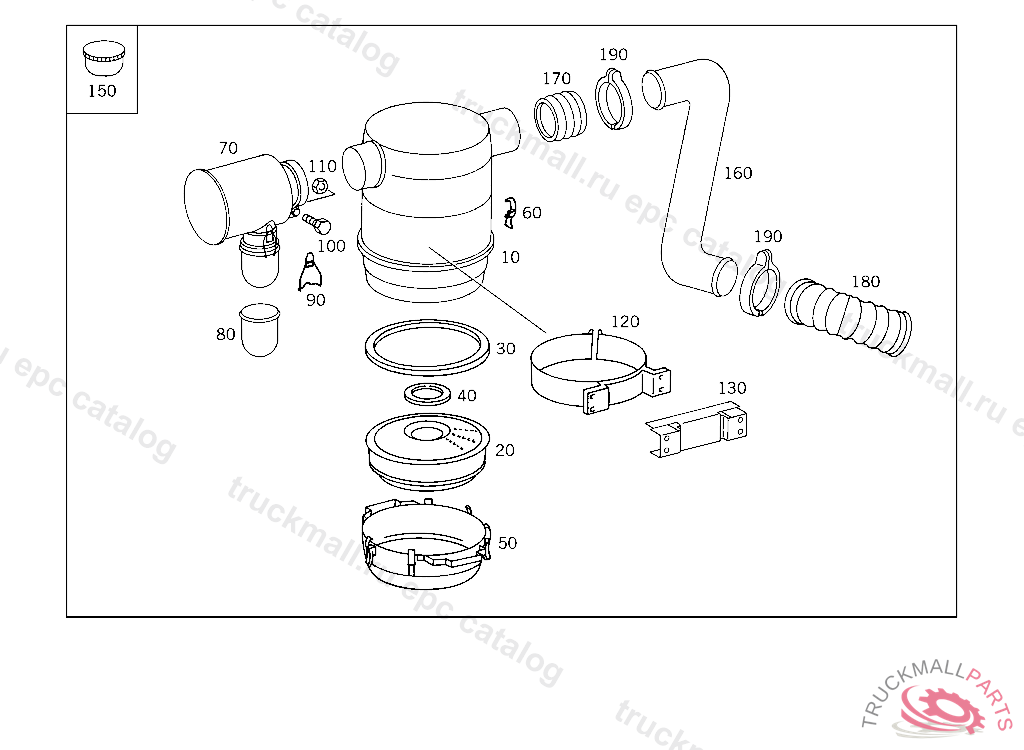

Поз.
Артикул
Описание
10
AIR CLEANER OIL BATH MANN & HUMMEL
20
ELEMENT
30
GASKET OUTSIDE
40
GASKET INSIDE
50
FILTER BOWL
60
FASTENER
70
DUST COLLECTOR BOWL CYCLONE MANN & HUMMEL
80
DUST COLLECTOR BOWL
90
FASTENER AIR CLEANER BOWL MANN & HUMMEL
100
SCREW BRACKET TO SIDE MEMBER
100
SCREW , Replaced By: N304017010002
110
NUT BRACKET TO SUPPORT AND TO END PIECE
120
BRACKET AIR CLEANER TO CAB
130
BRACKET AIR CLEANER TO CAB
150
PLUG
160
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE
170
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
180
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
190
CLAMP
999
BRACKET STRAP TO SUPPORT
