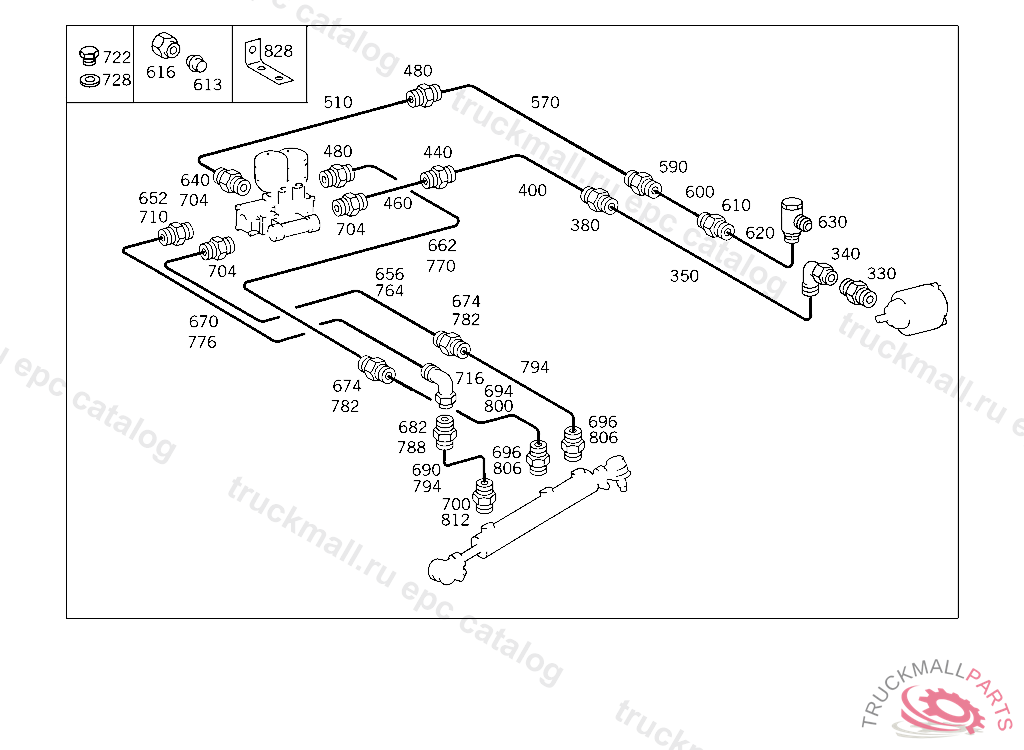

Поз.
Артикул
Описание
330
FITTING DELIVERY LINE TO PUMP
340
FITTING DELIVERY LINE TO PUMP
350
LINE FROM HYDRAULIC PUMP TO SEPARATION POINT ON FRAME
350
TUBE DELIVERY LINE TO PUMP
350
TUBE FROM HIGH PRESSURE HOSE TO STEERING
350
LINE , Replaced By: A0005516856
350
LINE , Replaced By: A0005516856
350
LINE , Replaced By: A0005516856
350
LINE , Replaced By: A0005516156
380
BULKHEAD FITTING
400
LINE FROM SEPARATION POINT AT FRAME TO CONTROL BLOCK
440
CONNECTION FITTING LINE CONNECTIONS
460
LINE , Replaced By: A0005516856
460
LINE , LENGTH AVAILABLE: 4 000 MM, Replaced By: A0005516156
460
LINE , Replaced By: A0005516156
460
LINE , Replaced By: A0005516856
460
TUBE FROM HIGH PRESSURE HOSE TO STEERING
460
TUBE DELIVERY LINE TO PUMP
480
FITTING , Replaced By: A0039901368
480
FITTING VALVE BLOCK
510
LINE RETURN LINE TO SCREW FITTING
510
LINE RETURN LINE TO SCREW FITTING
510
LINE RETURN LINE TO SCREW FITTING
510
LINE , Replaced By: A0005516256
510
LINE OIL RETURN TO TIMING CASE
510
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
570
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
570
LINE RETURN LINE TO FRAME
570
LINE , Replaced By: A0005516256
590
BULKHEAD FITTING THROUGH SIDE MEMBER
600
LINE RETURN LINE TO HYDRAULIC PUMP
600
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
600
LINE , Replaced By: A0005516256
600
LINE , Replaced By: A0005516256
600
LINE RETURN LINE TO HYDRAULIC PUMP
610
FITTING LINE CONNECTION
613
CUTTING RING. GLAND LINE CONNECTION
613
GLAND LINE CONNECTION
616
UNION NUT LINE CONNECTION
616
NUT. UNION NUT LINE CONNECTION
620
LINE RETURN LINE TO HYDRAULIC PUMP
620
LINE RETURN LINE TO HYDRAULIC PUMP
630
ELBOW FITTING RETURN LINE TO HYDRAULIC PUMP
640
FITTING VALVE BLOCK
640
FITTING , Replaced By: A0039901368
652
FITTING PRESSURE LIMIT VALVE
656
LINE , Replaced By: A0005516856
656
LINE , Replaced By: A0005516856
656
TUBE DELIVERY LINE TO PUMP
662
TUBE DELIVERY LINE TO PUMP
662
LINE , Replaced By: A0005516856
662
LINE , Replaced By: A0005516856
670
LINE FROM CONTROL UNIT TO HYDRAULIC CYLINDER "T1"
674
HOSE FROM FITTING TO T-FITTING 920 MM
674
BULKHEAD FITTING
682
FITTING DELIVERY LINE TO FRAME
690
HOSE FITTING TO STEERING BOX "A,B"
694
HOSE FROM CONTROL UNIT TO HYDRAULIC CYLINDER "T1"
696
FITTING VALVE BLOCK
696
FITTING , Replaced By: A0039901368
700
FITTING CONNECTION TO CYLINDER "L"
704
FITTING VALVE BLOCK
704
FITTING , Replaced By: A0039901368
710
FITTING CONTROL UNIT CONNECTION "T1"
710
FITTING PRESSURE LIMIT VALVE
716
T-FITTING CONTROL UNIT CONNECTION
722
SCREW PLUG
728
SEAL RING ON OIL PUMP HOUSING
764
TUBE DELIVERY LINE TO PUMP
764
LINE , Replaced By: A0005516856
770
LINE , Replaced By: A0005516856
770
TUBE DELIVERY LINE TO PUMP
776
LINE FROM CONTROL UNIT TO HYDRAULIC CYLINDER "T1"
782
BULKHEAD FITTING
788
FITTING DELIVERY LINE TO FRAME
794
HOSE FITTING TO STEERING BOX "A,B"
800
HOSE FROM CONTROL UNIT TO HYDRAULIC CYLINDER "T1"
806
FITTING VALVE BLOCK
806
FITTING , Replaced By: A0039901368
812
FITTING CONNECTION TO CYLINDER "L"
828
BRACKET LINE MOUNTING
