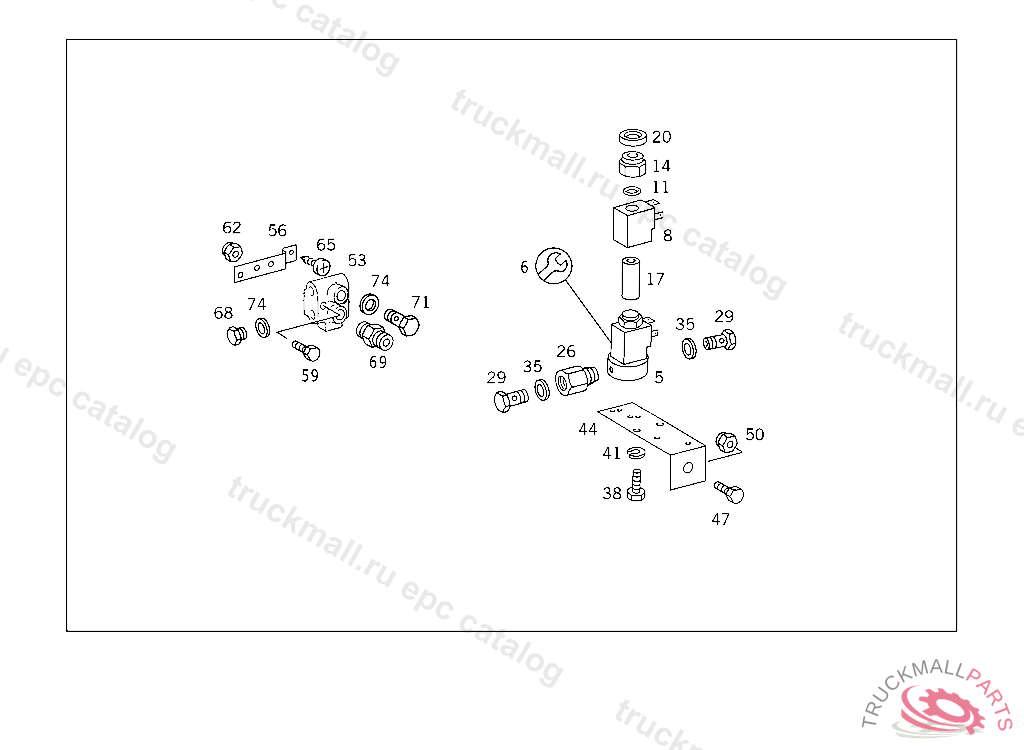

Поз.
Артикул
Описание
5
VALVE 3/2-WAY SOLENOID VALVE
5
VALVE 3/2-WAY SOLENOID VALVE
5
VALVE 3/2-WAY
6
REPAIR KITTO 388 997 88 36
6
REPAIR KITTO 388 997 81 36
8
MAGNET12 V, TO 345 997 74 36
8
SOLENOIDTO 693 420 73 71
11
SEAL RING
14
NUT
17
VALVE PART
20
PROTECTIVE CAP
26
FITTING SOLENOID VALVE,CONNECTION: "2"
29
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
29
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
35
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
38
SCREW 3/2-WAY VALVE TO BRACKET
41
LOCK WASHER PLUG SOCKET
44
BRACKET DISTRIBUTOR
47
SCREW , Replaced By: N304017010002
50
NUT BRACKET TO SIDE MEMBER,XB209706
53
DISTRIBUTOR
53
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
56
BRACKET
59
SCREW BRACKET TO FRAME
62
NUT PUMP TO BRACKET
65
SHEET METAL SCREW BRACKET TO FIRE WALL
68
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
69
FITTING DISTRIBUTOR
71
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
74
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
