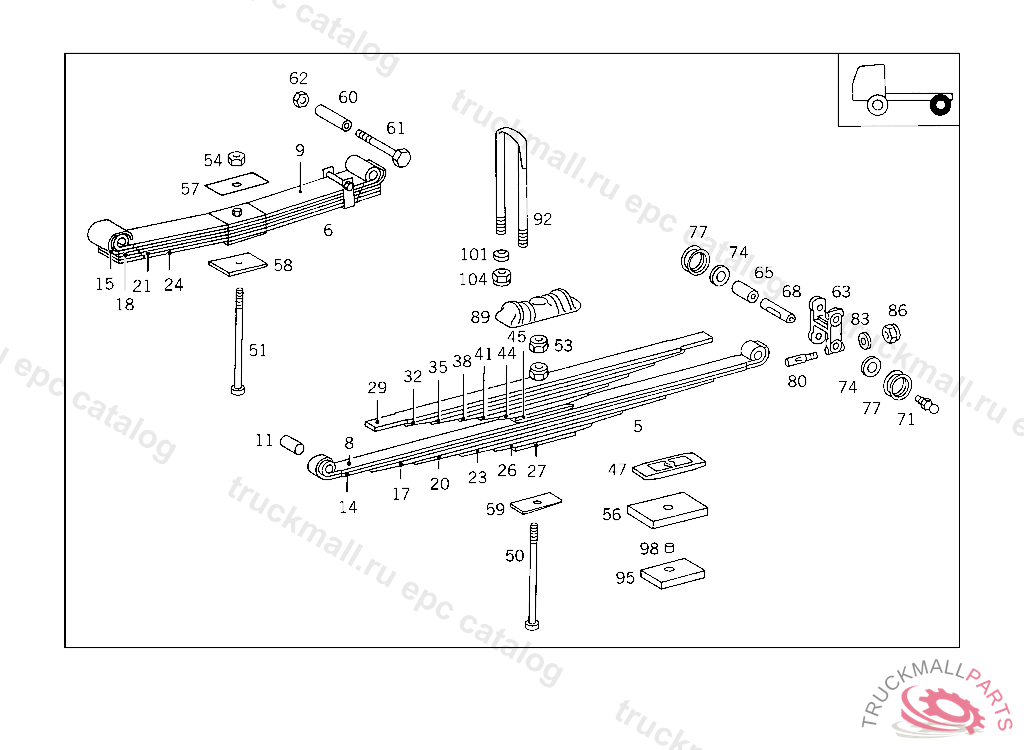

Поз.
Артикул
Описание
5
REAR SPRING4 FOLHAS C/ 5 FOLHAS AUXILIAR
6
REAR SPRING , NOT USED
9
SPRING LEAFNO.1,TO 376 320 11 08, NOT USED
9
SPRING LEAFNO.1,TO 682 320 70 08
11
BUSHING
11
BUSHING
15
SPRING LEAFNO.2,TO 376 320 11 08, NOT USED
15
SPRING LEAFNO.2,TO 682 320 70 08
18
SPRING LEAFNO.3,TO 376 320 11 08, NOT USED
18
SPRING LEAFNO.3,TO 682 320 70 08
21
SPRING LEAFNO.4,TO 376 320 11 08, NOT USED
21
SPRING LEAFNO.4,TO 682 320 70 08
24
SPRING LEAFNO.5,TO 376 320 11 08, NOT USED
29
SPRING LEAF HELPER SPRING NO.1,TO 682 320 70 08
32
SPRING LEAF HELPER SPRING NO.2,TO 682 320 70 08
35
SPRING LEAF HELPER SPRING NO.3,TO 682 320 70 08
38
SPRING LEAF HELPER SPRING NO.4,TO 682 320 70 08
41
SPRING LEAF HELPER SPRING NO.5,TO 682 320 70 08
54
NUT SPRING BOLT
57
SHIM , NOT USED
58
SHIM
60
SPACER TUBE SPRING CLAMP
61
SCREW HELPER SPRING M 10X1.5X75
62
NUT , Replaced By: N910113010002
63
SHACKLE REAR-SPRING REAR BRACKET
65
BUSHING
65
BUSHING
68
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
71
GREASE NIPPLE PROTECTIVE TUBE
74
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
74
WASHER AS REQUIRED 4.0 MM
74
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
74
WASHER AS REQUIRED 4.2 MM
77
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
80
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
83
WASHER GROUND CABLE
86
NUT BRACKET TO SIDE MEMBER,XB209706
89
PLATE , Replaced By: A6953257031
89
PLATE REAR SPRING TO REAR AXLE
92
U-BOLT REAR SPRING TO REAR AXLE, NOT USED
92
U-BOLT REAR SPRING TO REAR AXLE
98
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 38 MM
101
WASHER FRONT SPRINGS TO FRONT AXLE
104
NUT TORSION BAR TO BEARING BRACKET,5 904661
999
SHIM
999
SPACER AT REAR AXLE
999
SPACER
