Поз.
Артикул
Описание
5

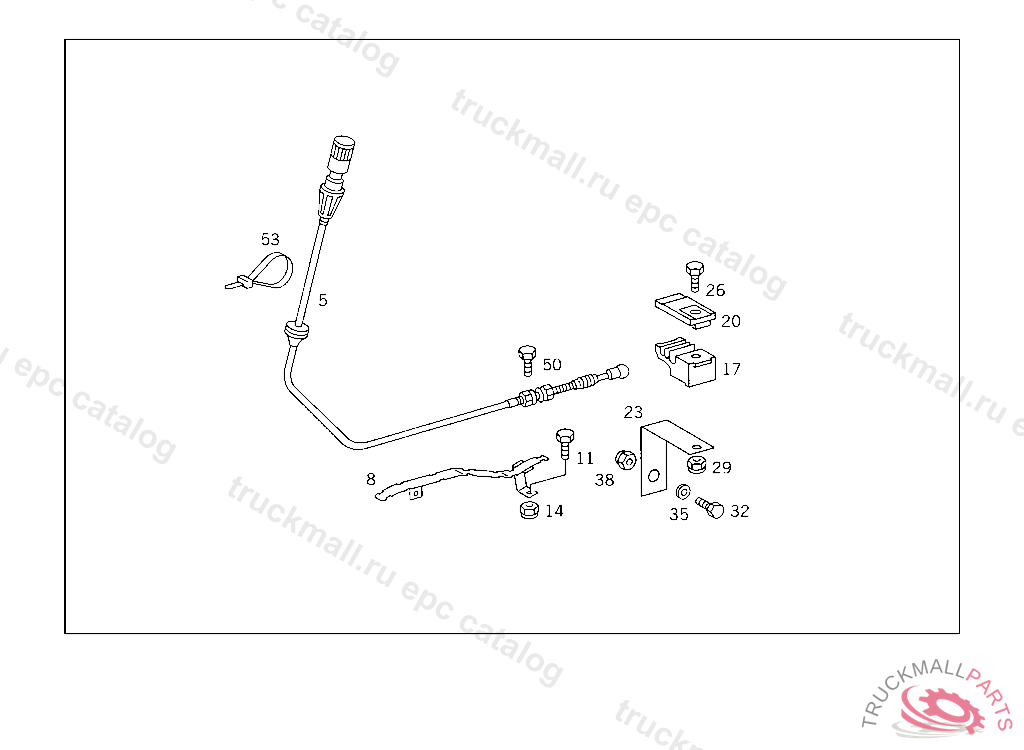

WIRE CABLE IDLING ADJUSTMENT
5
WIRE CABLE IDLING ADJUSTMENT, NO.8650I.......I I I II .......INO.9985I I I II I
8
BRACKET IDLING ADJUSTMENT
8
BRACKET IDLING ADJUSTMENT
11
SCREW BEARING BRACKET TO SIDE MEMBER
14
NUT BRACKET TO LEFT SIDE MEMBER
17
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
20
COVER IDLING ADJUSTMENT WIRE CABLE
23
BRACKET IDLING ADJUSTMENT WIRE CABLE
26
SCREW CLAMPING PIECE TO BRACKET M 6X40
29
NUT PUMP TO BRACKET
32
SCREW CROSS MEMBER TO SIDE MEMBERS
35
WASHER GROUND CABLE
38
NUT BRACKET TO SIDE MEMBER,XB209706
50
SCREW SWITCH TO BRACKET 8X16
53
LOOM TIE AIR INTAKE HOSE TO CLAMP
53
LOOM TIE ELECTRIC CABLE MOUNTING
53
LOOM TIE , Replaced By: A3459977390
53
LOOM TIE LINE MOUNTING 280 MM
