Поз.
Артикул
Описание
5

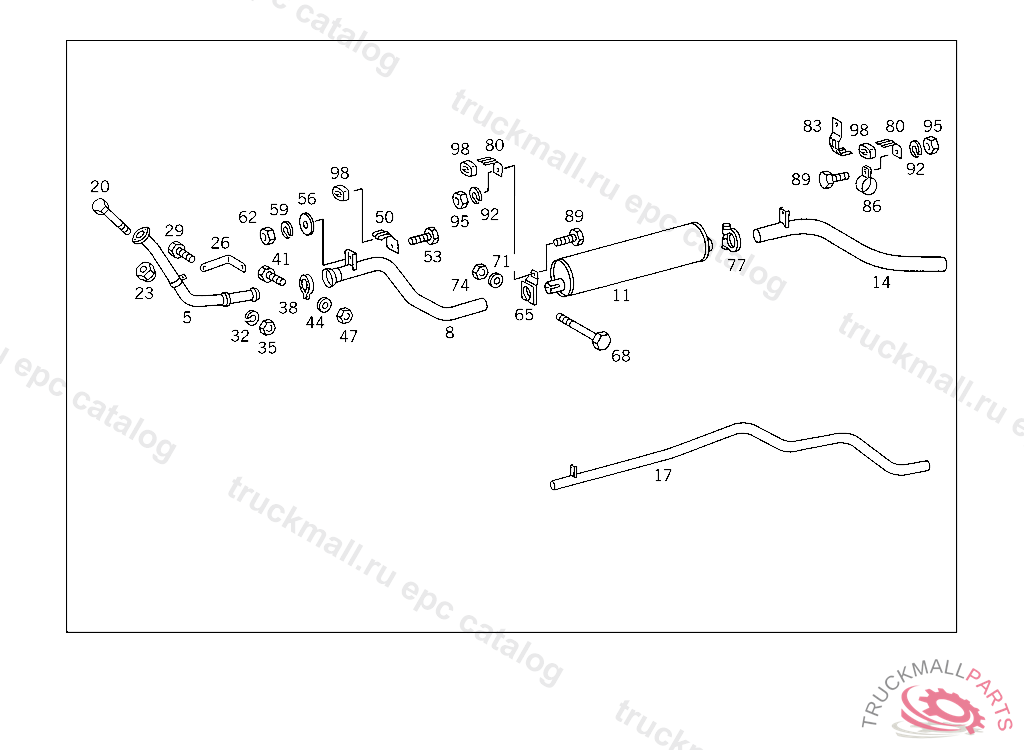

EXHAUST PIPE FRONT,P 275513
5
EXHAUST PIPE FRONT, Replaced By: A6014903919
5
EXHAUST PIPE FRONT,P 000001 USED FOR EXHAUST SYSTEM LESS PRE-MUFFLER AND WITH CODE K69, RESPECTIVELYP 275512, Replaced By: A6014903819, +001A6014921807, +001A6014920740, +001A6014927341
8
EXHAUST PIPE CENTRAL,P 000001 USED FOR EXHAUST SYSTEM LESS PRE-MUFFLER AND WITH CODE K69, RESPECTIVELYP 275512
8
CONNECTOR CENTRAL,P 275513
11
EXHAUST MUFFLER (MAIN MUFFLER)
11
EXHAUST MUFFLER , Replaced By: A6014903601
14
EXHAUST PIPE REAR
17
EXHAUST PIPE REAR
17
EXHAUST PIPE REAR
20
SCREW VALVE TO BRACKET M 8X55
20
SCREW , Replaced By: N304017008043
23
NUT , Replaced By: A1201420072
23
HEXAGON NUT SCREENING PLATE,5 163561
26
ANGLE FRONT EXHAUST PIPE TO CLUTCH BELL, FROM IDENT NO.691884, P 000001 ALSO INSTALLED ON 689886,689929,690037,690093,691039,691040,691041,691042,691043,691709. UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE ALSO FOR USE AFTER INSTALLATION OF REPAIR SOLUTION
29
SCREW , Replaced By: N304017008027
29
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
NUT
38
CLAMP
38
CLAMP FRONT EXHAUST PIPE, FROM IDENT NO.691884, P 000001 ALSO INSTALLED ON 689886,689929,690037,690093,691039,691040,691041,691042,691043,691709. ALSO FOR USE AFTER INSTALLATION OF REPAIR SOLUTIONP 275512
41
SCREW FRONT EXHAUST PIPE M 8 X 90,P 275513
44
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
47
HEXAGON NUT SCREENING PLATE,5 163561
47
NUT , Replaced By: A1201420072
47
NUT
50
BRACKET EXHAUST PIPE TO CROSS MEMBER NO. 3,P 275513
50
BRACKET EXHAUST PIPE TO CROSS MEMBER NO. 3,P 275512
53
SCREW , Replaced By: N304017008021
53
SCREW PIPE CLAMP
56
SCREW SUPPORT TO FENDER
56
WASHER BRACKET TO CAB REAR PANEL
56
WASHER BRACKET TO LEFT SIDE MEMBER
56
WASHER , Replaced By: N009021008213
59
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
NUT , Replaced By: A1201420072
62
HEXAGON NUT SCREENING PLATE,5 163561
62
NUT
65
CLAMP
68
SCREW FRONT EXHAUST PIPE M 8 X 90,P 275513
71
WASHER BRACKET TO ENGINE MOUNTING USED WITH FIVE-SPEED TRANSMISSION
74
NUT
77
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
80
BRACKET
83
BRACKET REAR EXHAUST PIPE TO FRAME,783273
86
CLAMP , Replaced By: N000000001641
86
CLAMP , Replaced By: A9424310043
86
CLAMP LINE MOUNTING
89
SCREW , Replaced By: N304017008027
89
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
92
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
NUT
98
DAMPING PAD PARTICLE FILTER
98
DAMPING PAD , Replaced By: A3814920082
