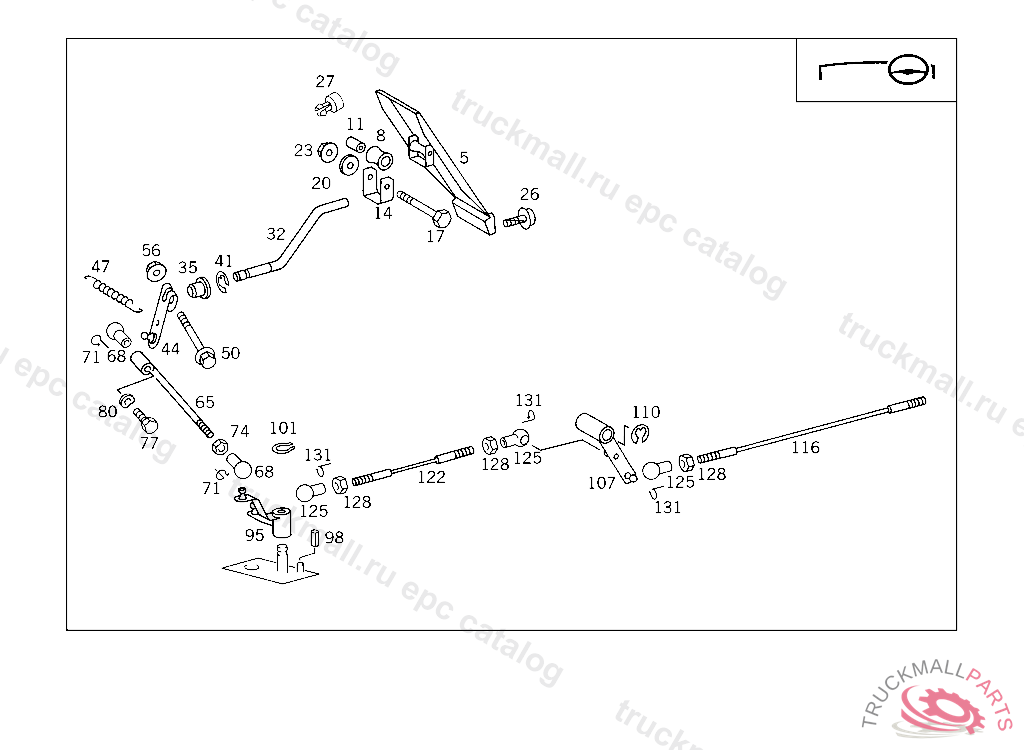

Поз.
Артикул
Описание
5
8
11
14
17
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X40
20
WASHER MODULATOR TO ENGINE CONTROL SHAFT
23
NUT AT FILTER BRACKET
26
SCREW
27
32
35
41
LOCK PLATE CONTROL SHAFT TO CAB
41
WASHER
44
47
SPRING (RELEASE SPRING)
47
SPRING
47
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
50
SCREW , Replaced By: N910105006005
56
NUT AT FILTER BRACKET
65
65
68
BALL SOCKET PULL ROD TO LEVER
68
BALL SOCKET AT CONTROL LEVER
71
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
74
NUT SPRING-LOADED PUSH ROD
77
80
SPRING WASHER CABLE TO ALTERNATOR
95
95
98
101
WASHER
101
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
101
LOCK PLATE CONTROL SHAFT TO CAB
107
107
107
110
WASHER
110
LOCK PLATE CONTROL SHAFT TO CAB
116
122
125
BALL SOCKET AT CONTROL LEVER
128
NUT SPRING-LOADED PUSH ROD
131
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
