Поз.
Артикул
Описание

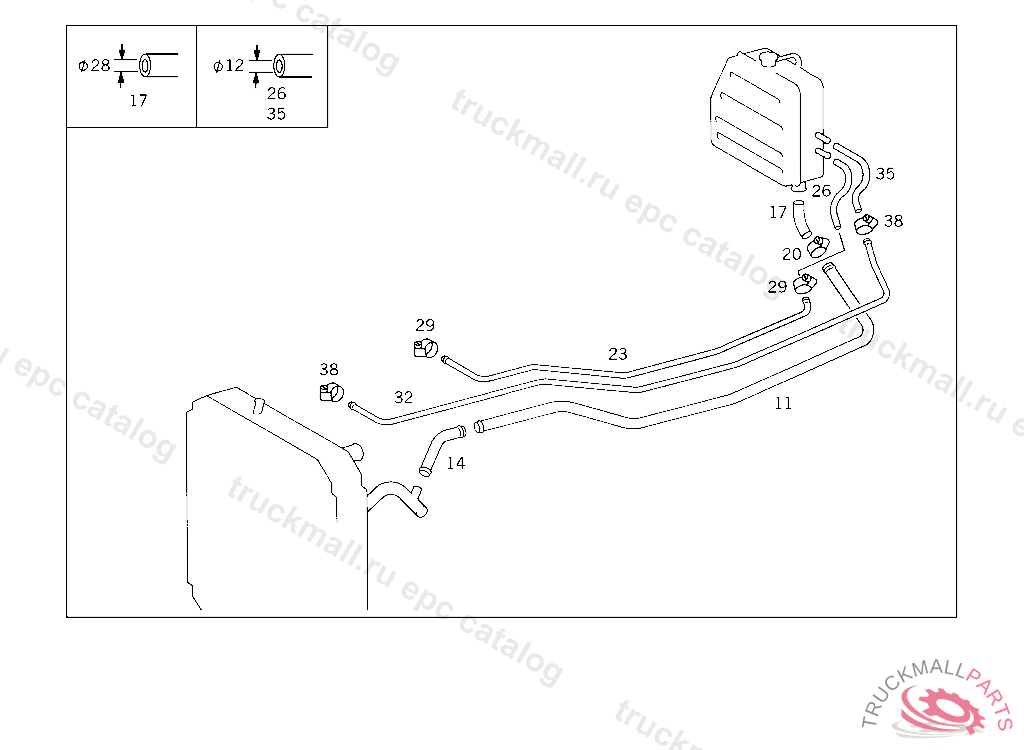

11
PIPE ELBOW FROM RESERVOIR TO CONNECTION FITTING
14
PIPE ELBOW FROM RESERVOIR TO CONNECTION FITTING
17
HOSE FROM RESERVOIR TO CONNECTION FITTING, ORDER BY THE METER
20
CLAMP
23
COOLING WATER PIPE FROM EXPANSION TANK TO RADIATOR
26
HOSE FROM EXPANSION TANK TO THERMOSTAT, ORDER BY THE METER
29
CLAMP HOSE TO FITTING AND TO OIL TANK
29
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
32
COOLING WATER PIPE FROM EXPANSION TANK TO THERMOSTAT
35
HOSE FROM EXPANSION TANK TO THERMOSTAT, ORDER BY THE METER
38
CLAMP HOSE TO FITTING AND TO OIL TANK
38
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
TAIL LAMP RIGHT "HELLA"
999
CABLE HARNESS ROOF
999
BRACKET
999
BRACKET
999
BUMPER
999
PIPE ELBOW
999
BRACKET
999
REAR SUBFRAME FRONT RIGHT,001317004068
999
ELECTRIC CABLE GROUND CABLE
999
PIN BUSHING HOUSING 6-POLE
999
CABLE TIE310X5MM
999
TAIL LAMP LEFT
