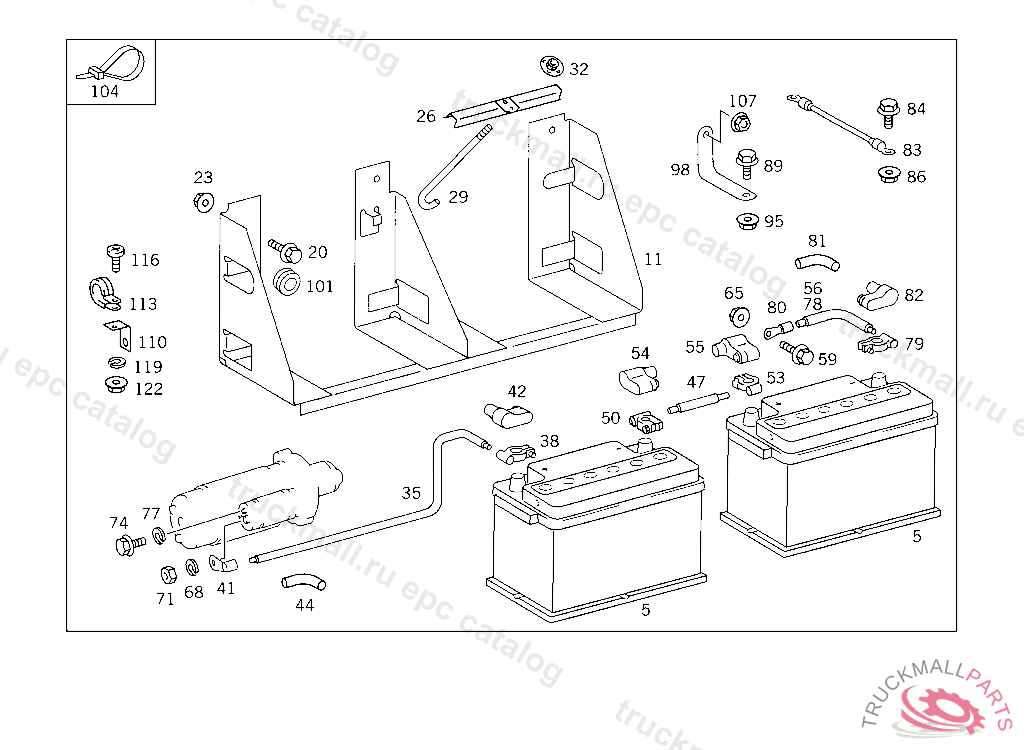

Поз.
Артикул
Описание
5
BATTERY12V/60AH
5
BATTERY12V/60AH
11
BATTERY SUPPORT LEFT
20
SCREW , Replaced By: N910105010009
20
SCREW CENTRAL BEARING M 10X25
23
NUT EXHAUST PIPE TO SIDE MEMBER
26
RAIL BATTERY MOUNTING
29
CLAMPING SCREW BATTERY MOUNTING
32
NUT BATTERY MOUNTING
35
ELECTRIC CABLE , Replaced By: A6735460011
38
SOLDERING TERMINAL POS. POLE
38
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
41
CABLE SHOE FROM BATTERY TO STARTING MOTOR
41
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
42
COVERING
44
GROMMET , Replaced By: A0009970881
47
ELECTRIC CABLE FROM BATTERY I TO BATTERY II,D 001717
47
ELECTRIC CABLE , Replaced By: A6735460011
50
SOLDERING TERMINAL POS. POLE
53
SOLDERING TERMINAL POS. POLE
54
COVERING
55
COVERING
56
POSITIVE CABLE ,D 001717
56
POSITIVE CABLE ,D 001717
59
SCREW , Replaced By: N910105010009
65
NUT BATTERY CABLE
68
LOCK WASHER FUSE
71
NUT
74
SCREW CONNECTOR TO CAB
77
LOCK WASHER CABLE TO FUSE BOX
78
ELECTRIC CABLE , Replaced By: A6735460011
79
SOLDERING TERMINAL POS. POLE
80
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
81
GROMMET , Replaced By: A0009970881
82
COVERING
89
SCREW , Replaced By: N910105010009
95
NUT EXHAUST PIPE TO SIDE MEMBER
98
GROUND STRAP FROM CYLINDER CRANKCASE TO FRAME SIDE MEMBER,5 382260
101
GROMMET LINE PASSAGE AT SIDE MEMBER
104
LOOM TIE LINE MOUNTING 280 MM
107
NUT BRACKET TO BRACKET
110
BRACKET BATTERY CABLE TO CONSOLE,LEFT
113
CLAMP LINE MOUNTING
116
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
119
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
122
NUT BALL SOCKET TO ROD
