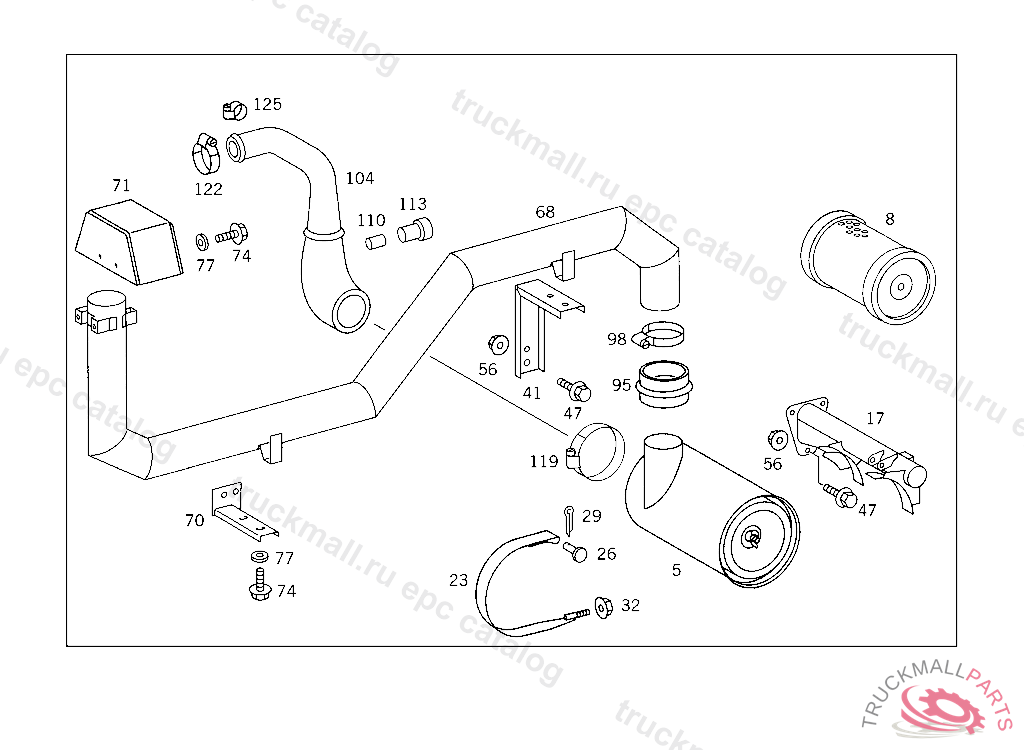

Поз.
Артикул
Описание
5
8
8
17
BRACKET AIR CLEANER
23
26
PIN
29
COTTER PIN STRAP TO SUPPORT
32
NUT BRACKET TO BRACKET
41
BRACKET AIR INTAKE PIPE
47
SCREW , Replaced By: N910105010009
47
SCREW STRUT TO CROSS MEMBER M 10X25
47
SCREW , Replaced By: N910142008001
47
SCREW , Replaced By: N910143008002
47
SCREW END PIECE TO EXHAUST PIPE M 12X30
56
NUT EXHAUST PIPE TO SIDE MEMBER
56
NUT BRACKET TO BRACKET
56
NUT BRACKET TO BEARING BRACKET
68
71
74
SCREW , Replaced By: N304017006018
77
WASHER , Replaced By: N009021006208
77
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
98
CLAMP
110
113
WARNING INDICATOR
119
CLAMP AIR CLEANER TO SUPPORT
122
CLAMP HOSE TO RETARDER 60-80X13 MM
122
CLAMP , Replaced By: N000000000673
125
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
