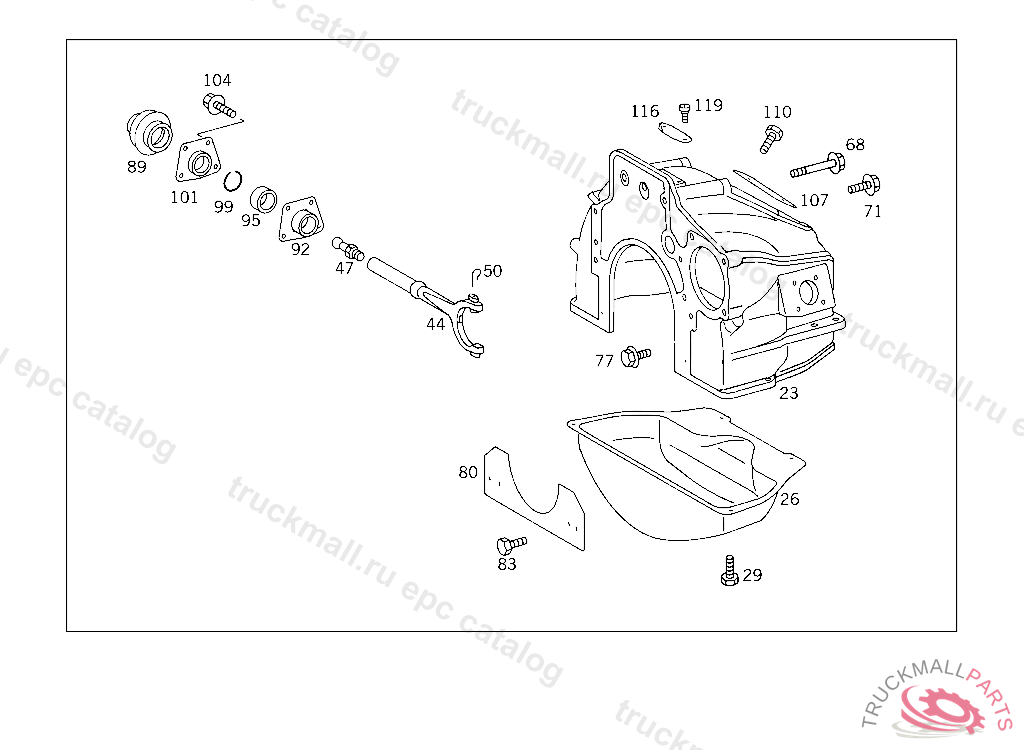

Поз.
Артикул
Описание
23
26
BELL HOUSING LOWER PART,5 332727 SEAL DURING ASSEMBLY
29
HEXAGON HEAD BOLT , Replaced By: N000000002270
44
44
47
BALL PIVOT RELEASE YOKE
47
BALL PIVOT RELEASE YOKE
50
50
68
71
SCREW , Replaced By: N910105012025
77
SCREW. HEXAGON HEAD BOLT BRACKET TO TRANSMISSION CASE M12X1.75X55
80
80
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
80
83
HEXAGON HEAD BOLT , Replaced By: N000000002270
89
BOOT RELEASE LEVER, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
92
BRACKET INSIDE,4 696330
95
95
BEARING ,763226, Replaced By: A3802540035, +001A3852540051, +001A3802540159
99
101
BRACKET OUTSIDE,4 696330
104
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
107
107
110
HEXAGON HEAD BOLT , Replaced By: N000000002270
116
INSPECTION HOLE COVER
119
