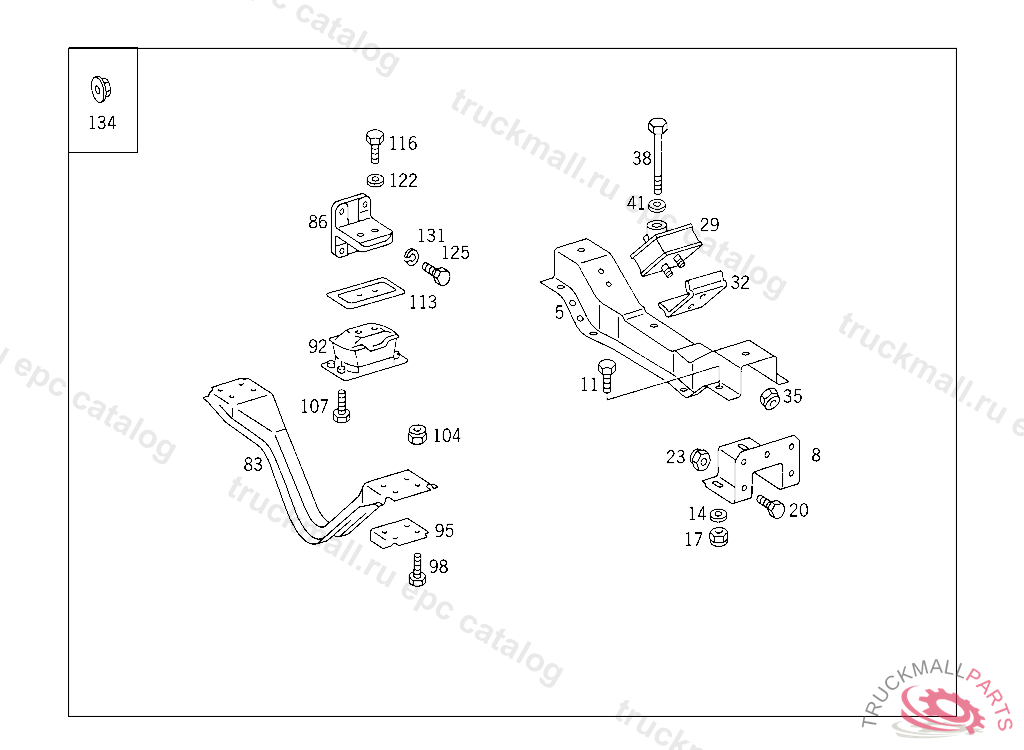

Поз.
Артикул
Описание
5
ENGINE SUPPORT
8
ENGINE STAY
11
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
11
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
14
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
17
NUT BRACKET TO SIDE MEMBER M12X1.5
17
NUT , Replaced By: N910113012003
20
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
20
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
23
NUT BRACKET TO SIDE MEMBER M12X1.5
23
NUT , Replaced By: N910113012003
29
RUBBER MOUNTING ENGINE FRONT SUSPENSION
29
RUBBER MOUNTING ENGINE FRONT SUSPENSION
29
RUBBER MOUNTING FRONT
29
RUBBER MOUNTING FRONT,D 034636
32
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
35
NUT , Replaced By: N910113012003
35
NUT BRACKET TO SIDE MEMBER M12X1.5
38
SCREW , Replaced By: N308676016004
38
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X55, IN CONJUNCTION WITH CODE: KQJ5 IN CONJUNCTION WITH CODE: 9J5Q
41
WASHER CONSOLE TO FRAME
83
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 4 358797, Replaced By: A3812400202
86
SUPPORTING ARM ENGINE RIGHT REAR MOUNTING,D 087894
92
RUBBER MOUNTING REAR
92
RUBBER MOUNTING REAR
92
RUBBER MOUNTING , Replaced By: A6152400218
92
RUBBER MOUNTING , Replaced By: A6152400318
92
RUBBER MOUNTING CLUTCH END
92
RUBBER MOUNTING CLUTCH END
92
RUBBER MOUNTING CLUTCH END
95
REINFORCEMENT , FIRST EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 4 358797, Replaced By: A3812400202
98
SCREW BRACKET MOUNTING
98
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
104
NUT , Replaced By: N910113012003
104
NUT BRACKET TO SIDE MEMBER M12X1.5
107
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
107
SCREW , Replaced By: N308676012012
113
SCREENING PLATE REAR RUBBER MOUNTING
116
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
122
WASHER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 360 990 18 40
125
SCREW ENGINE REAR SUPPORT TO ENGINE M16X40
125
HEXAGON HEAD BOLT SUPPORTING ARM TO TIMING CASE M 16X40
131
LOCK WASHERROCKINGER TYP 59 G140,59 G150
134
NUT AT FILTER BRACKET
