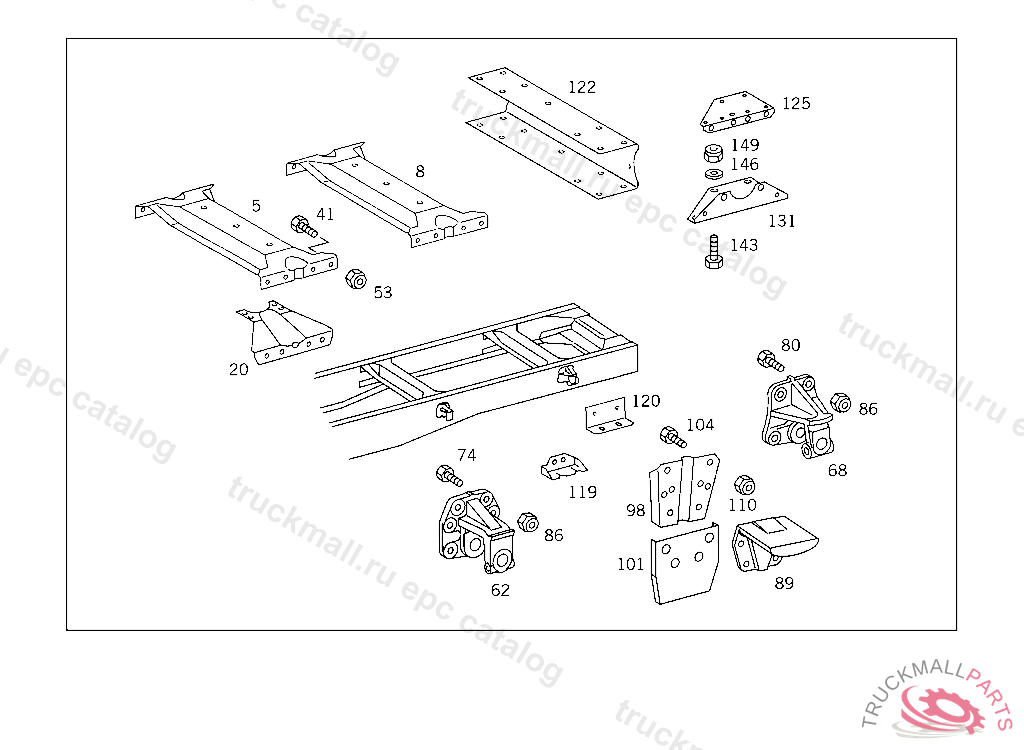

Поз.
Артикул
Описание
5
8
CROSS MEMBERNO.5A
20
REINFORCEMENT LEFT AND RIGHT TO 617 312 01 17
41
SCREWM 12X12X11X26
53
NUT , Replaced By: N910113012003
62
REAR SPRING BRACKET FRONT, TO BE ADAPTED DURING ASSEMBLY
68
REAR SPRING BRACKET FRONT AND REAR
74
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
74
SCREWM 14X15X29X46
80
SCREW , Replaced By: N308676014012
86
NUT , Replaced By: N910113014000
89
HELPER SPRING BRACKET FRONT
98
STIFFENING HELPER SPRING BRACKET TO SIDE MEMBER
119
SUPPORT SPARE WHEEL MOUNTING, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
122
122
125
GUSSET PLATE ,5 199637
125
GUSSET PLATE ,5 199637
999
