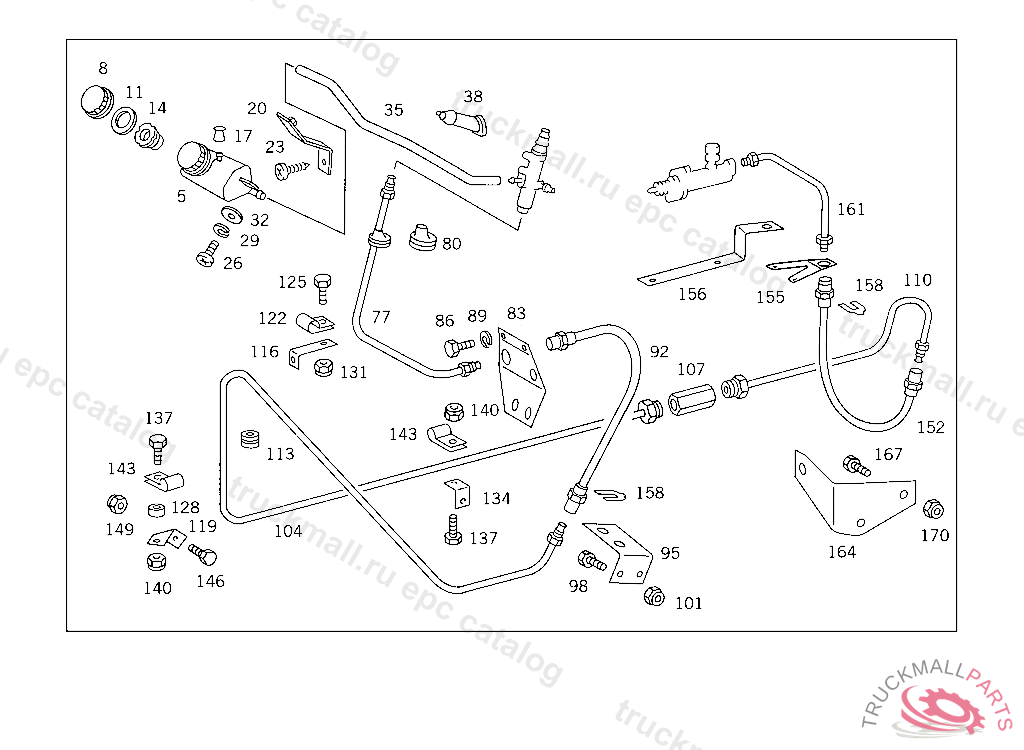

Поз.
Артикул
Описание
5
RESERVOIR RESERVOIR, 415 5 014669 416 5 000516 417 4 972024
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
BRACKET RESERVOIR
23
SHEET METAL SCREW ANTINOISE CAPSULE TO CAB M 5.5X16
26
SCREW CONTROL UNIT
29
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
32
WASHER , Replaced By: N009021006208
35
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
38
GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797365
77
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
80
GROMMET TEMPERATURE GAUGE SENDER UNIT
83
BRACKET HYDRAULIC LINE TO CAB FLOOR
86
SCREW , Replaced By: N910105006023
89
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
92
HOSE , Replaced By: A3982950035
95
BRACKET AT OIL TANK BRACKET
98
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
101
NUT , Replaced By: N913004006001
104
LINE
116
BRACKET BRACKET TO ENGINE,REAR
119
BRACKET HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL,5 178595
122
CLAMP ,K 147121, Replaced By: N000000000319
122
CLAMP , Replaced By: N916016008200
125
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
125
SCREW OVERLOAD PROTECTOR TO BRACKET
128
SPACER TUBE , Replaced By: A4082910153
131
NUT , Replaced By: N913004006001
134
ANGLE LINE MOUNTING
137
SCREW , Replaced By: N000961012051
140
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
143
CLAMP , Replaced By: N916016008200
143
CLAMP ,K 147121, Replaced By: N000000000319
146
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
149
NUT , Replaced By: N913004006001
152
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
155
BRACKET HYDRAULIC HOSE TO TRANSMISSION,5 213167
156
BRACKET HYDRAULIC LINE TO TRANSMISSION
158
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
161
164
BRACKET AT SIDE MEMBER,5 157364
167
SCREW BRACKET TO SIDE MEMBER
170
NUT , Replaced By: N910113014001
