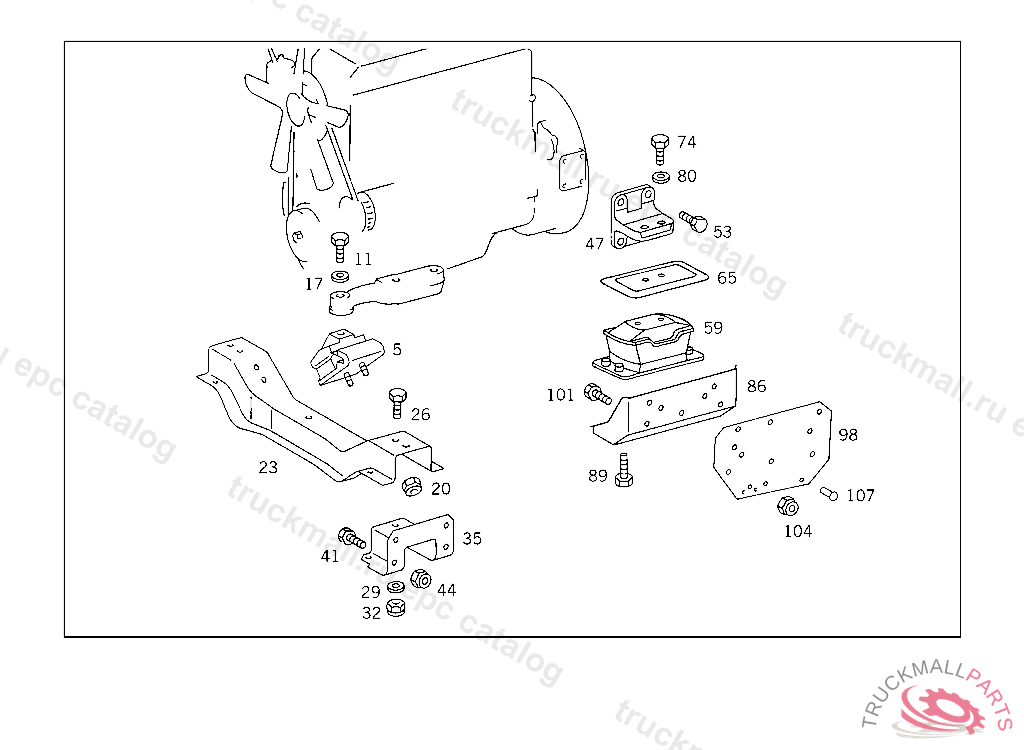

Поз.
Артикул
Описание
5
RUBBER MOUNTING FRONT
11
SCREW CONSOLE TO TRANSMISSION
17
WASHER CONSOLE TO FRAME
20
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
23
ENGINE CROSS MEMBER FRONT
26
SCREW BRACKET TO FRAME
29
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
32
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
35
ENGINE STAY FRONT
41
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS M 12X1,5X35
41
SCREW CONSOLE TO SIDE MEMBER
44
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
47
SUPPORTING ARM CLUTCH END
53
SCREW , Replaced By: N304017016004
59
RUBBER MOUNTING REAR
59
RUBBER MOUNTING REAR
65
SCREENING PLATE REAR RUBBER MOUNTING
74
SCREW , Replaced By: N308676014012
80
WASHER CROSS MEMBER TO SUPPORT
86
SUPPORT , Replaced By: A3812400206, +002N000961012097
89
SCREW BRACKET TO LEFT SIDE MEMBER
98
REINFORCEMENT CONSOLE TO SIDE MEMBER
101
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
101
SCREW ENGINE SUPPORT TO SIDE MEMBERS M 12X40
104
NUT , Replaced By: N910113012003
107
RIVET12X30 MM
107
RIVET10X28 MM, TO BE ADAPTED DURING ASSEMBLY
