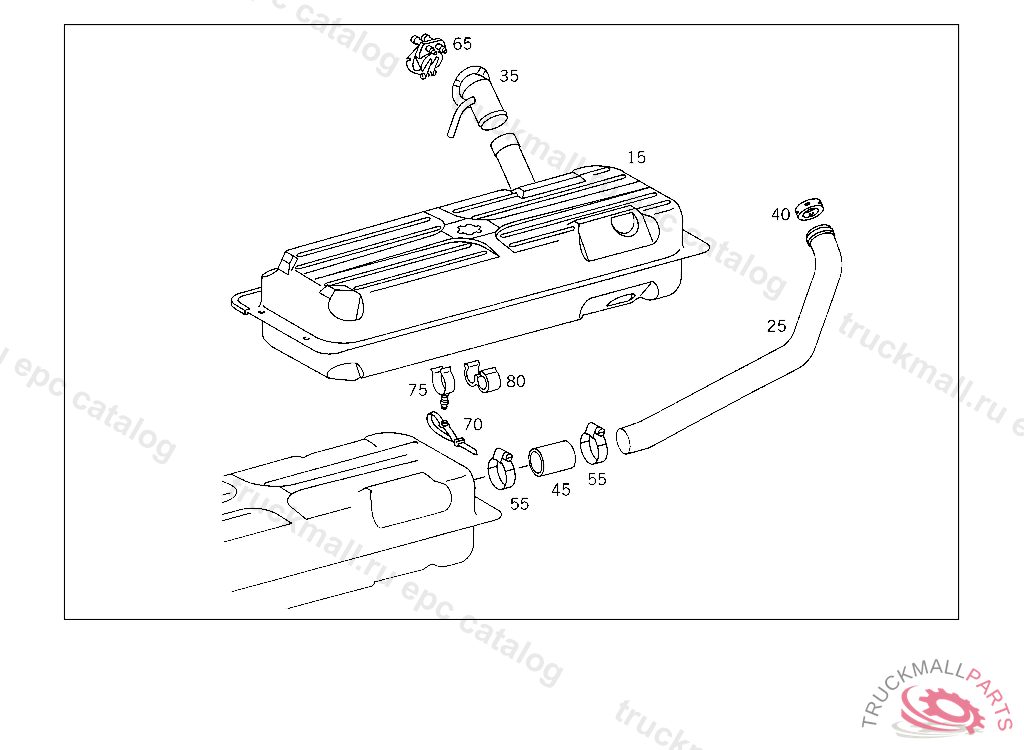

Поз.
Артикул
Описание
15
FUEL TANK LEFT 70L
15
FUEL TANK RIGHT 70 L
15
FUEL TANK LEFT 70 L
15
FUEL TANK RIGHT 70 L
25
EXTENSION FILLER NECK TO FUEL TANK
25
FILLER NECK , UP TO IDENT NO. 826383 WHEELBASE: 3350 MM UP TO IDENT NO. 831841 WHEELBASE: 3050 MM, Replaced By: A6014710909, +001A6014700028, +001A6014760126
25
FILLER NECK , UP TO IDENT NO. 826383 WHEELBASE: 3350 MM UP TO IDENT NO. 831841 WHEELBASE: 3050 MM, Replaced By: A6114710509, +001A6014700028, +001A6014760126
25
EXTENSION FILLER NECK TO FUEL TANK
25
EXTENSION
25
EXTENSION , TO BE ADAPTED DURING ASSEMBLY
35
FILLER NECK TOP
35
FILLER NECK TOP
35
FILLER NECK TOP
35
FILLER NECK TOP
40
FILLER NECK TOP
45
EXTENSION , Replaced By: A6014760126
45
HOSE (CONNECTING LINE)
55
CLAMP , Replaced By: N000000000672
55
CLAMP HOSE FASTENING 50-70X13 MM
65
FUNNEL , Replaced By: A1694700029
70
CLAMP LINE MOUNTING
75
CLAMP FEED & RETURN
80
CLAMP , Replaced By: A0005465143
