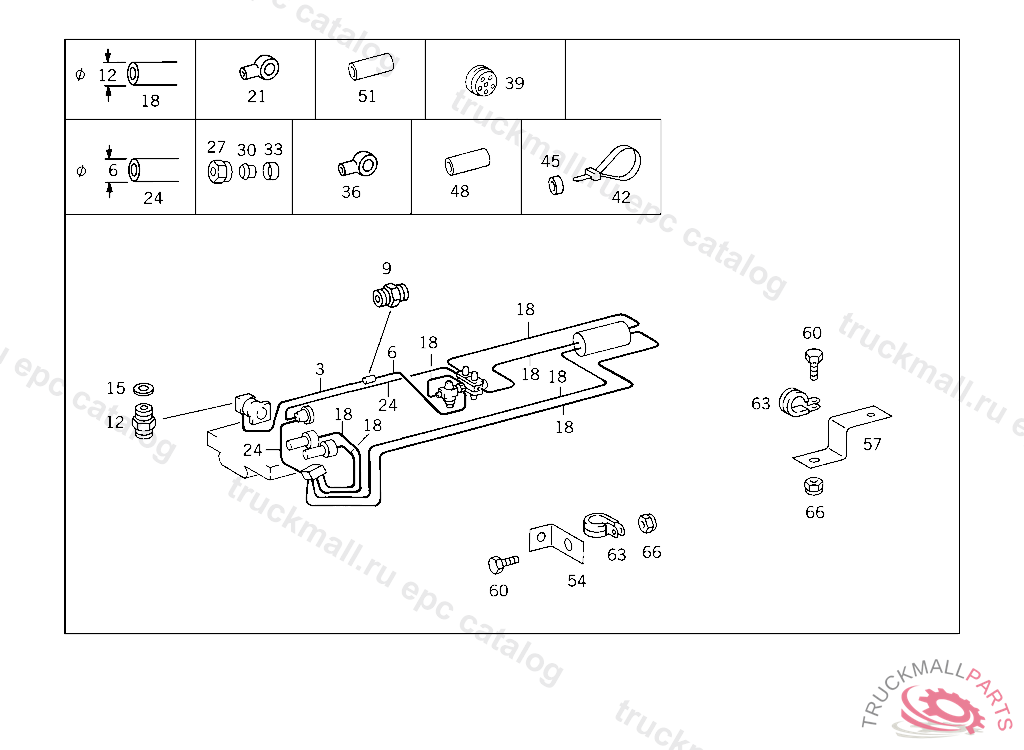

Поз.
Артикул
Описание
3
PART NAME MISSING AIR COMPRESSOR LINE
6
PART NAME MISSING AIR COMPRESSOR LINE
9
PART NAME MISSING CONNECTOR
12
FITTING AIR COMPRESSOR,CONNECTION: "2"
15
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
18
HOSE , Replaced By: A0009872827
18
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
21
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
24
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
27
UNION NUT
30
GLAND , Replaced By: A0019901667
33
SLEEVE LEAK LINE
36
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
36
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
39
GROMMET , Replaced By: A3219970081
39
GROMMET
42
LOOM TIE , Replaced By: A3459977390
42
LOOM TIE
42
LOOM TIE
42
LOOM TIE LINE MOUNTING
45
WASHER , Replaced By: A3609902340
48
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
48
INSULATING HOSE COLOR CODE GREEN
48
INSULATING HOSE RED, ORDER BY THE METER
51
INSULATING HOSE , ORDER BY THE METER
51
INSULATING HOSE COLOR CODE BROWN
51
INSULATING HOSE CHECK VALVE,CONNECTION "2"
51
INSULATING HOSE COLOR CODE GREY,YB227219
51
INSULATING HOSE COLOR CODE ORANGE 12X0.8 MM, ORDER BY THE METER
54
BRACKET FUEL LINE TO SIDE MEMBER
57
BRACKET COMPRESSED AIR LINES
60
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
63
CLAMP PIPE ON FAN SHROUD
66
NUT PUMP TO BRACKET
