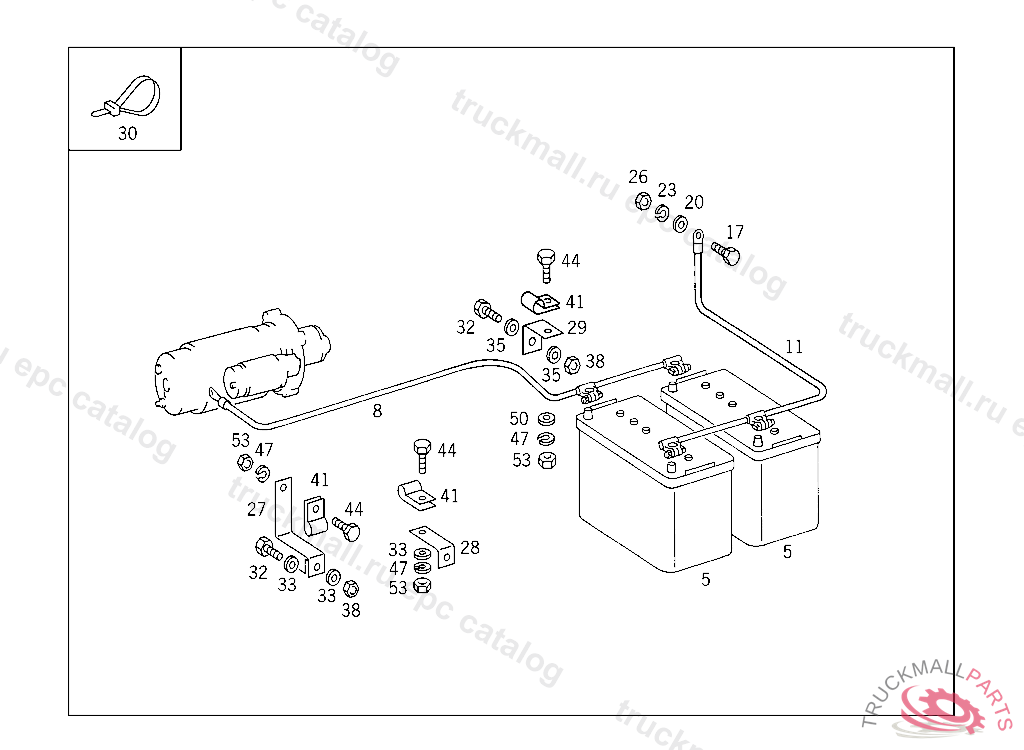

Поз.
Артикул
Описание
5
5
BATTERY12V/65AH
8
11
17
PART NAME MISSING SCREW 3/8-16
20
PART NAME MISSING WASHER 3/8
23
26
29
PART NAME MISSING BRACKET, INAPPLICABLE TO BM 685.458-002
32
PART NAME MISSING SCREW 1/4-20
35
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
38
NUT NUT
41
PART NAME MISSING CLAMP
41
44
PART NAME MISSING SCREW 1/4-20
44
SCREW SCREW 1/4-20,3AM 685442 50 038885
47
PART NAME MISSING SPRING WASHER
50
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
53
PART NAME MISSING NUT 1/4-20
