Поз.
Артикул
Описание

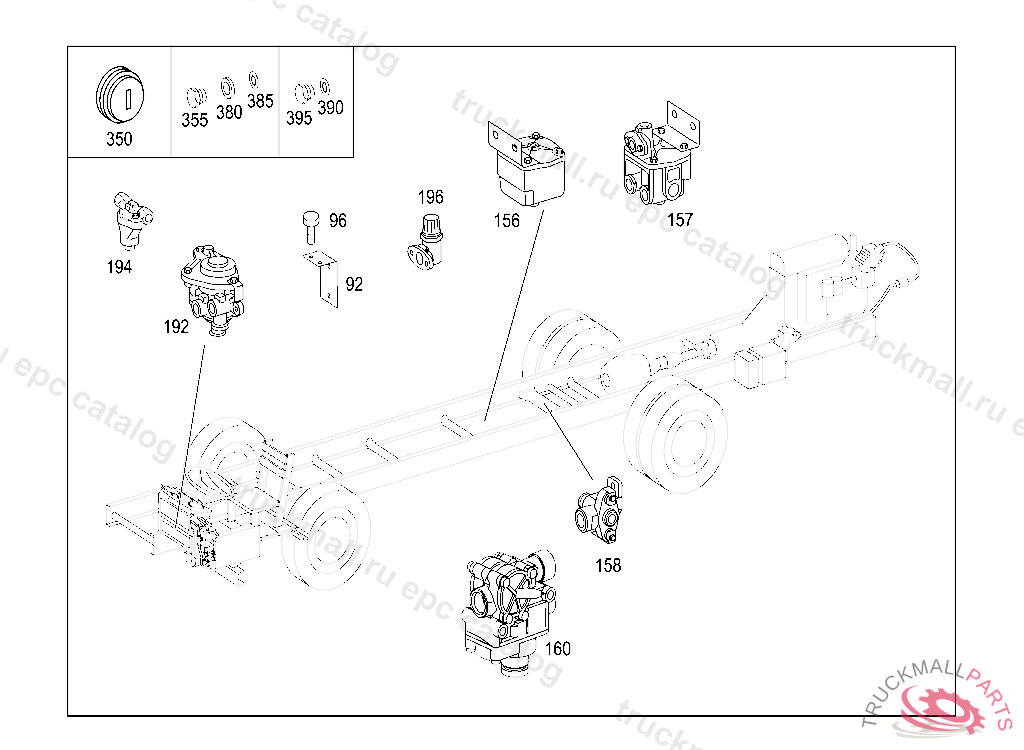

92
MOUNTING BRACKET TWO-WAY VALVE
96
PART NAME MISSING SCREW
156
VALVE (RELAY VALVE)
157
VALVE (RELAY VALVE)
158
VALVE (2-WAY VALVE)
160
VALVE FRONT AND REAR AXLE BRAKE PRESSURE KNORR 45.01
160
VALVE , Replaced By: A0044298844
192
VALVE (REVERSING VALVE)
194
VALVE (OVERFLOW VALVE)
196
VALVE (OVERFLOW VALVE)
350
PLUG (NEUTRAL SAFETY SWITCH)
355
PLUG1/8"
380
THRUST RING14X10X2.6MM
385
O-RING
390
O-RING CHECK VALVE TO AIR RESERVOIR
395
PLUG
999
PART NAME MISSING NUT
999
PART NAME MISSING , Replaced By: A6889900040
999
LOOM TIE
999
SCREW5/16" UNC 2.50"
999
SCREW5/16
999
PLUG AT AIR RESERVOIR
999
FASTENER3/8-18 NPTF
999
T-FITTING AT AIR RESERVOIR
999
T-FITTING
999
FITTING
999
FITTING1/4 X 1/4
999
CONNECTOR
999
T-FITTING
999
ELBOW FITTING90GR. 1/2NPTFX5/8T
999
ELBOW FITTING
999
ELBOW FITTING
999
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
999
ELBOW FITTING ,M 027041
999
FITTING AT AIR RESERVOIR
999
CONNECTOR ON AIR DRIER
999
SLEEVE SOLENOID VALVE
