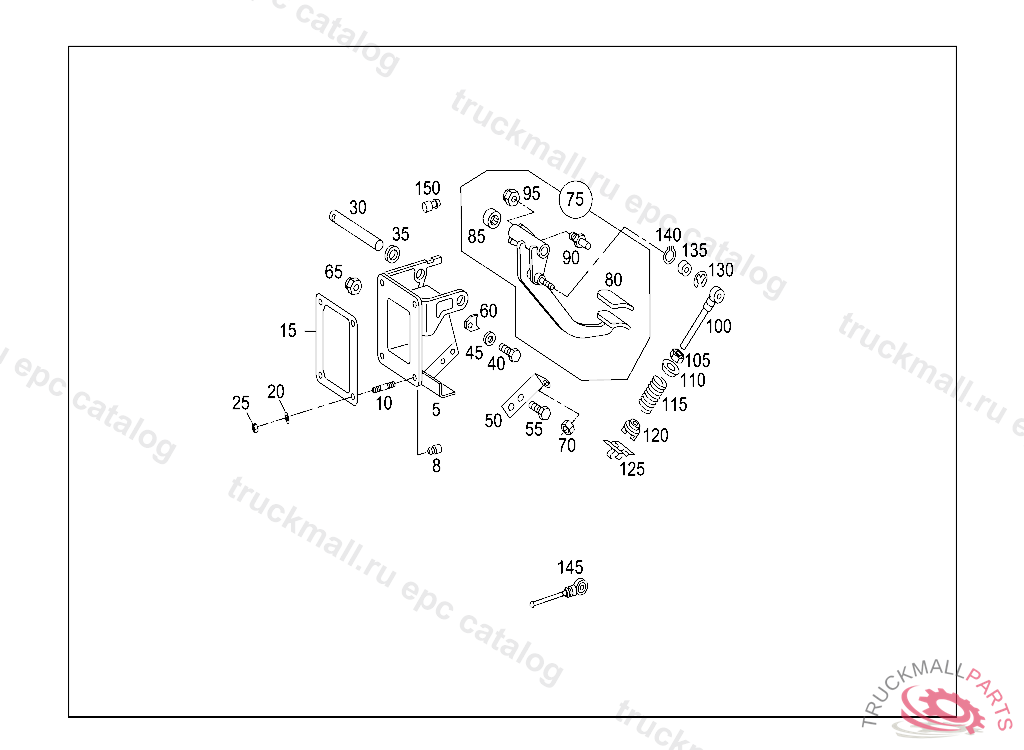

Поз.
Артикул
Описание
5
BEARING BRACKET , Replaced By: A6882947001
5
BEARING BRACKET
10
STUD
15
GASKET BEARING BRACKET TO CAB
20
SPRING WASHER BRAKE SHOE WITH LINING
25
NUT BATTERY CASE
30
PIN CLUTCH PEDAL TO BEARING BRACKET
35
WASHER CLUTCH PEDAL TO BEARING BRACKET
40
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
45
WASHER PLUG SOCKET TO BRACKET
50
STOP CLUTCH PEDAL
55
SCREW CLAMP TO BRACKET
60
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
65
NUT PUMP TO BRACKET
70
NUT BATTERY CASE
75
PEDAL , NOT USED
80
PAD , Replaced By: A1072910182
85
NEEDLE BEARING CLUTCH PEDAL
90
PIN CLUTCH PEDAL39 MM(M10) TO A6952907216
95
NUT AIR CLEANER ELEMENT
100
BEARING BRACKET
105
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
110
SPRING RETAINER SPRING TO PUSH ROD
115
SPRING CLUTCH PEDAL RESET,B 974885
120
SPRING RETAINER SPRING TO PUSH ROD
125
CLIP SPRING TO PUSH ROD
130
LOCK PLATE
135
WASHER BRACKET TO FENDER BRACKET
140
LOCK RING PUSH ROD TO PEDAL
145
ROD CLUTCH PEDAL
150
STOP CLUTCH PEDAL STOP
999
PEDAL ASSEMBLY CLUTCH PEDAL
