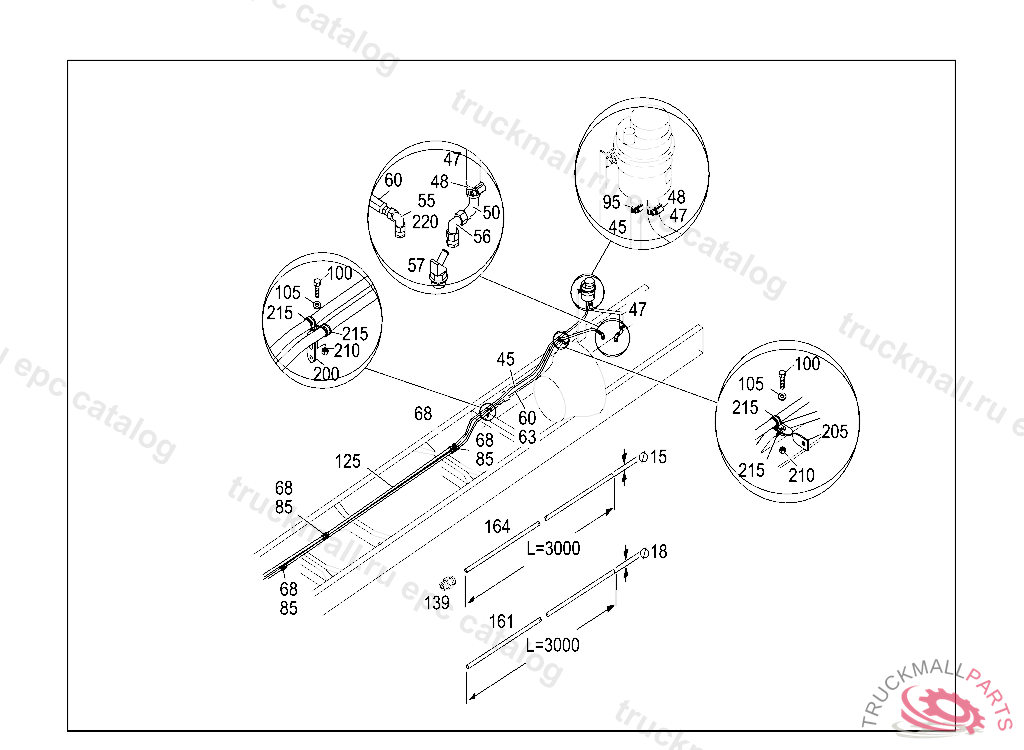

Поз.
Артикул
Описание
45
HOSE , ORDER BY THE METER
47
HOSE FROM OIL TANK TO PUMP, ORDER BY THE METER
48
CLAMP26-32
48
CLAMP , Replaced By: A6854600258
50
LINE
55
ELBOW FITTING
55
ELBOW FITTING
56
ELBOW FITTING ,M 01546
57
CONNECTOR ,M 015079
60
LINE DELIVERY LINE 37JIC, SPCL L1295MM
60
LINE DELIVERY LINE L1170MM,M 01546
60
HOSE , Replaced By: A6854600124
63
LINE FROM PUMP TO STEERING 1240 MM
68
FITTING FROM PUMP TO STEERING
68
FITTING FROM PUMP TO STEERING
68
HOSE CONNECTIONPARKER G15LCF
85
FITTING , Replaced By: A6859970672
85
HOSE CONNECTION
95
CLAMP
95
CLAMP18-24
100
SCREW CABLE MOUNTING 1/4-20
105
WASHER FASTENING FOR LINING 1/4
125
HOSE RETURN
139
FITTING 3/4 UNF X 18MM, Replaced By: A6859970772
139
HOSE CONNECTION3/4 UNF X 18MM
200
BRACKET LINE MOUNTING
205
BRACKET
210
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
215
CLAMP
215
CLAMP , Replaced By: QT01-27263-000
215
CLAMP ,M 026122
220
ELBOW FITTING
999
FITTING18MM
999
LINE15MM X 1,.5
999
LINE15MM X 1,5
999
LINE DELIVERY LINE 15MM X 1,5
999
LINE , Replaced By: QT14-14832-001
999
LINE15MM X 1,5
999
LINE15MM X 1,5
999
FILLER CAP , NOT USED
999
FITTING3/8 NPT
999
HOSE DELIVERY LINE JIC37.#8
